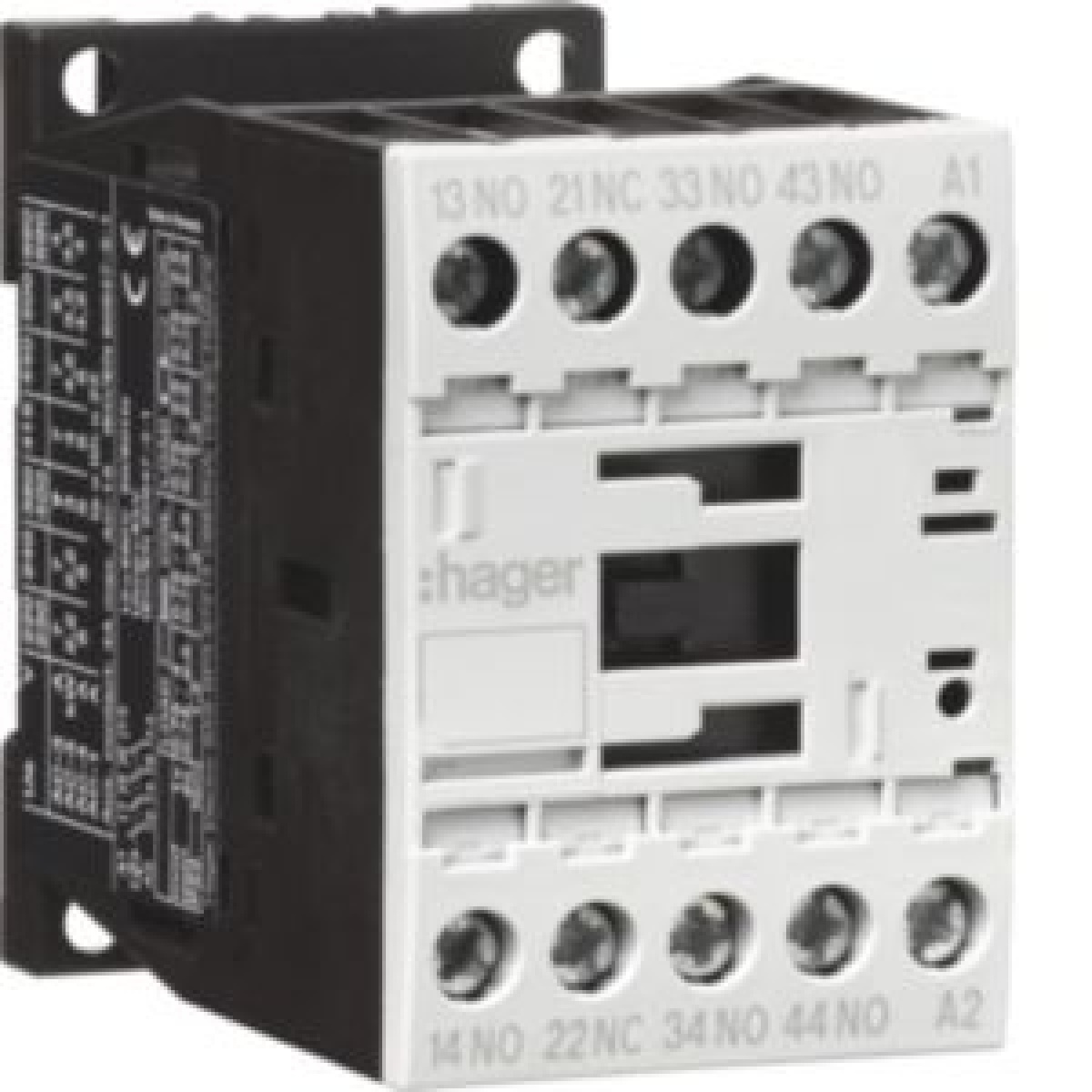

Relé de com 3NA1NF 230V 50Hz240V 60 Hz
Contactors, Motor Circuit Breakers and Accessories
Relé de com 3NA1NF 230V 50Hz240V 60 Hz
Manufacturer Ref:
EVR00431C
Nortécnica Ref:
EAN:
3250612236534
Description
Technical Information
Attributes
Mounting method
DIN rail
Width
45
Height
68
Depth
114
Interface
No
Number of auxiliary contacts as normally open contact
3
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie, 400 V
4
Suitable for manual operation
No
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage AC 50 Hz
600
600
Rated control supply voltage AC 60 Hz
600
600
Rated control supply voltage DC
250
250
Voltage type operating voltage
ACDC
With LED indication
No
Rated switch current
16
Connection type auxiliary circuit
Screw connection
Number of auxiliary contacts as normally closed contact, delayed switching
-
Number of auxiliary contacts as normally open contact, leading
-
Rated operation current
16
Operating voltage AC 50 Hz
230
230
Operating voltage AC 60 Hz
240
240
Operating voltage DC
-
Voltage type for actuating
AC
Brands
Hager Sistemas Eléctricos Modulares SA
