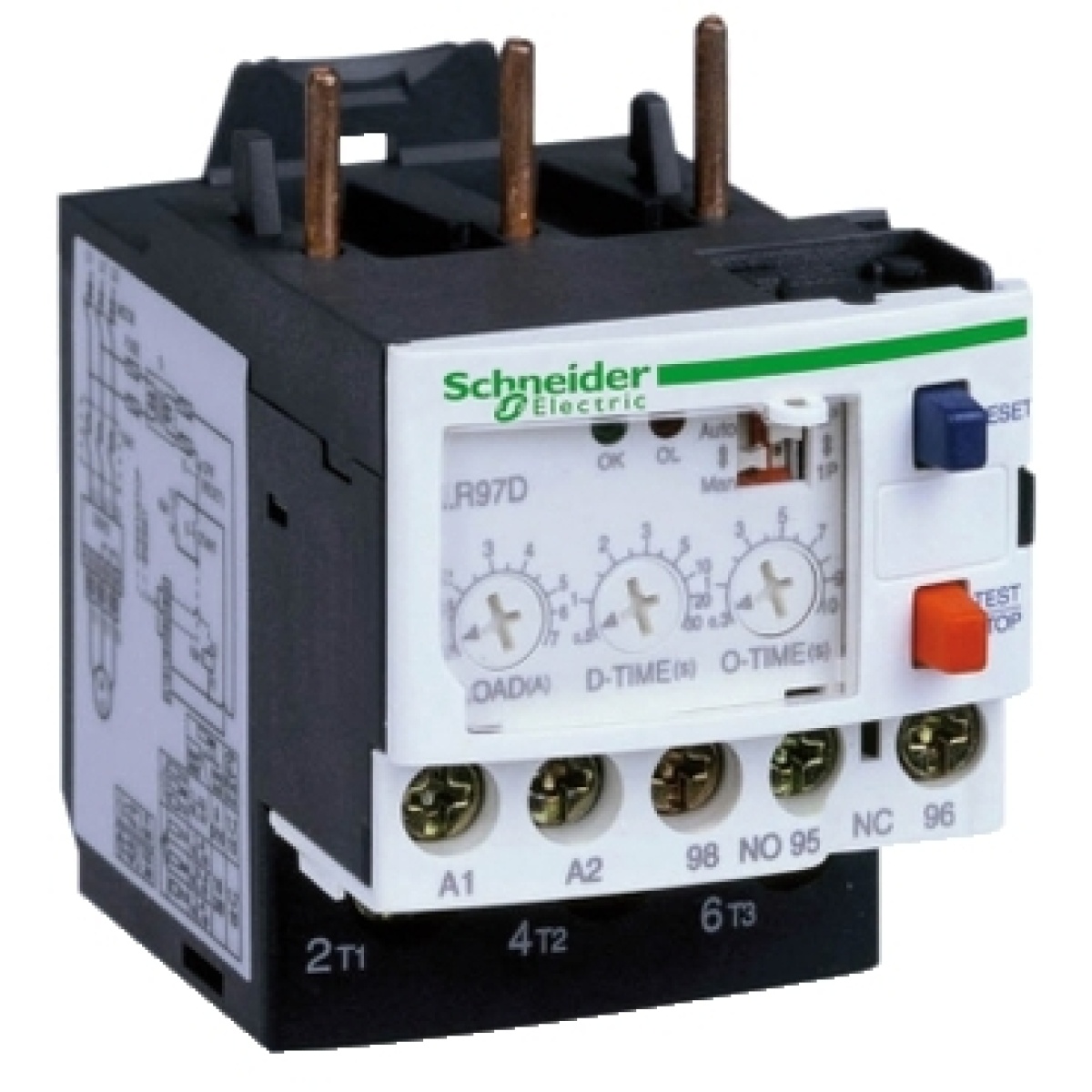

Relé electrónico 2038A 110VCA
Contactors, Motor Circuit Breakers and Accessories
Relé electrónico 2038A 110VCA
Manufacturer Ref:
LR97D38F7
Nortécnica Ref:
EAN:
8809755436391
Description
Technical Information
Attributes
Mounting method
Direct attachment
Width
45
Height
64.5
Depth
67.5
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
External power supply required
No
Number of auxiliary contacts as change-over contact
1
Rated control supply voltage AC 50 Hz
100
120
Rated control supply voltage AC 60 Hz
100
120
Rated control supply voltage DC
-
-
Voltage type operating voltage
AC
Release class
Adjustable
Rated switch current
-
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
100
120
Operating voltage AC 60 Hz
100
120
Operating voltage DC
-
-
Adjustable current range
20
38
Voltage type for actuating
AC
Reset function input
Yes
Reset function automatic
Yes
Reset function push-button
Yes
Brands
Schneider
Technical Sheet
