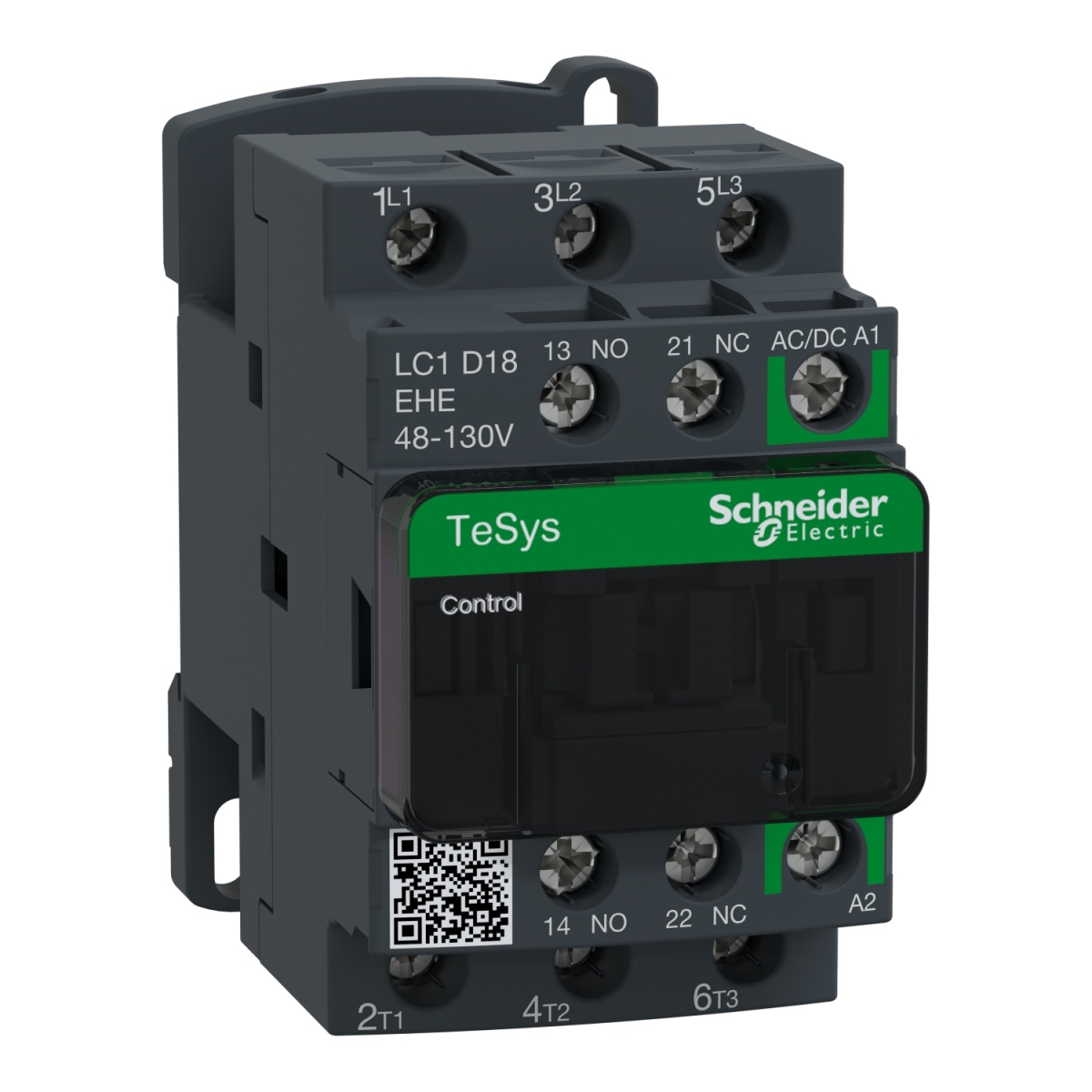

TeSys D contactor 3P 18A AC-3 up to 440V coil 48-130V ACDC
Contactors, Motor Circuit Breakers and Accessories
TeSys D contactor 3P 18A AC-3 up to 440V coil 48-130V ACDC
Manufacturer Ref:
LC1D18EHE
Nortécnica Ref:
EAN:
3606480987700
Description
Technical Information
Attributes
Width
45
Height
77
Depth
86
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
7.5
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
18
Rated operation current Ie at AC-1, 400 V
32
Rated control supply voltage AC 50 Hz
48
130
Rated control supply voltage AC 60 Hz
48
130
Rated control supply voltage DC
48
130
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Voltage type for actuating
AC/DC
Rated operation current Ie at AC-4, 400 V
9
Rated operation power at AC-4, 400 V
4
Rated operation power NEMA
-
Brands
Schneider
