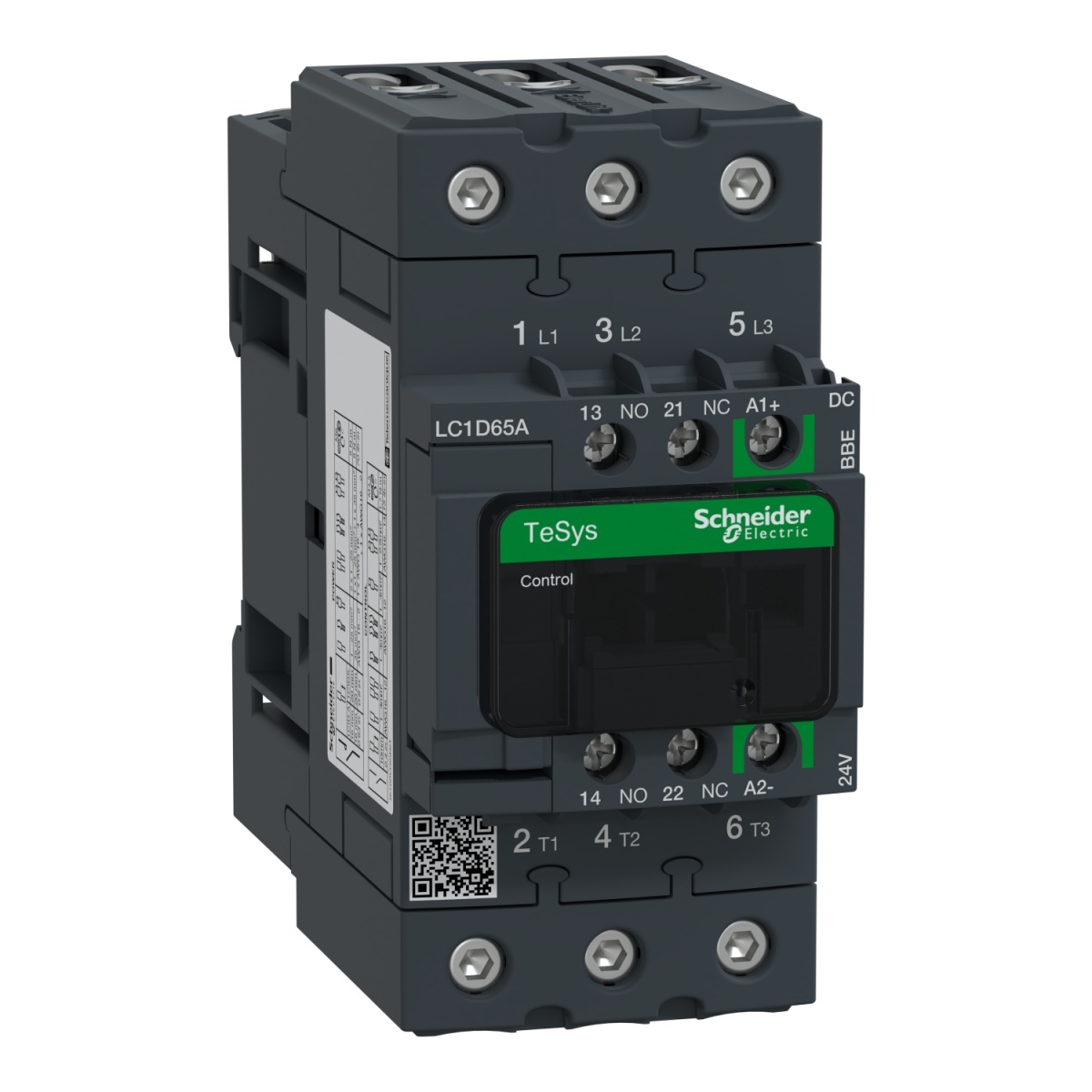

TeSys D contactor 3P 65A AC-3 up to 440V coil 24V DC EverLink
Contactors, Motor Circuit Breakers and Accessories
TeSys D contactor 3P 65A AC-3 up to 440V coil 24V DC EverLink
Manufacturer Ref:
LC1D65ABBE
Nortécnica Ref:
EAN:
3606480987830
Description
Technical Information
Attributes
Width
55
Height
122
Depth
120
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
30
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
65
Rated operation current Ie at AC-1, 400 V
80
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
17
30
Type of electrical connection of main circuit
Other
Operating voltage AC 50 Hz
-
-
Operating voltage AC 60 Hz
-
-
Voltage type for actuating
DC
Rated operation current Ie at AC-4, 400 V
25
Rated operation power at AC-4, 400 V
11
Rated operation power NEMA
-
Brands
Schneider
