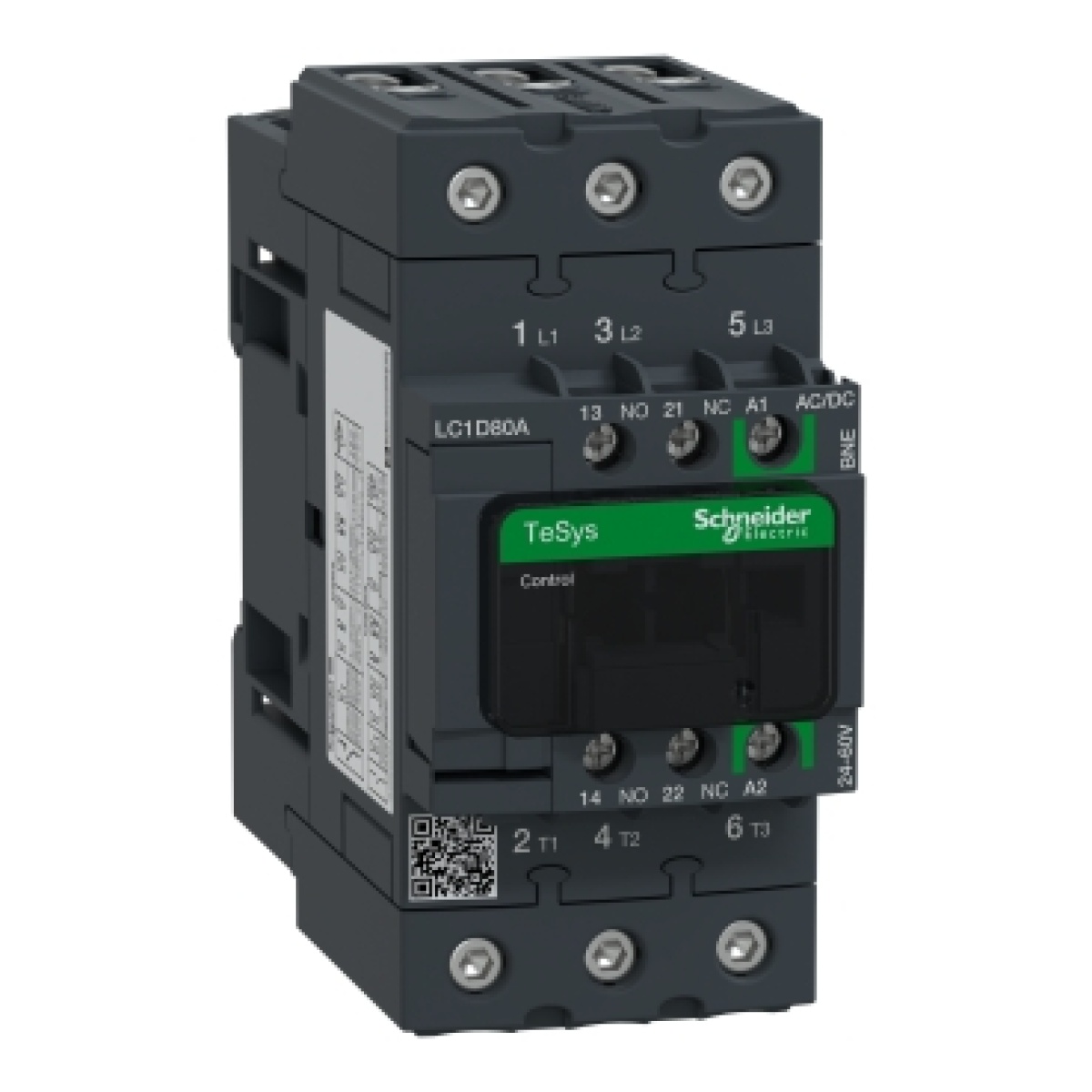

TeSys D contactor 3P 66A AC-3 up to 440V coil 24-60V ACDC EverLink
Contactors, Motor Circuit Breakers and Accessories
TeSys D contactor 3P 66A AC-3 up to 440V coil 24-60V ACDC EverLink
Manufacturer Ref:
LC1D80ABNE
Nortécnica Ref:
EAN:
3606481312327
Description
Technical Information
Attributes
Width
55
Height
122
Depth
120
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
37
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
66
Rated operation current Ie at AC-1, 400 V
80
Rated control supply voltage AC 50 Hz
24
60
Rated control supply voltage AC 60 Hz
24
60
Rated control supply voltage DC
24
60
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Voltage type for actuating
AC/DC
Rated operation current Ie at AC-4, 400 V
25
Rated operation power at AC-4, 400 V
11
Rated operation power NEMA
-
Brands
Schneider
