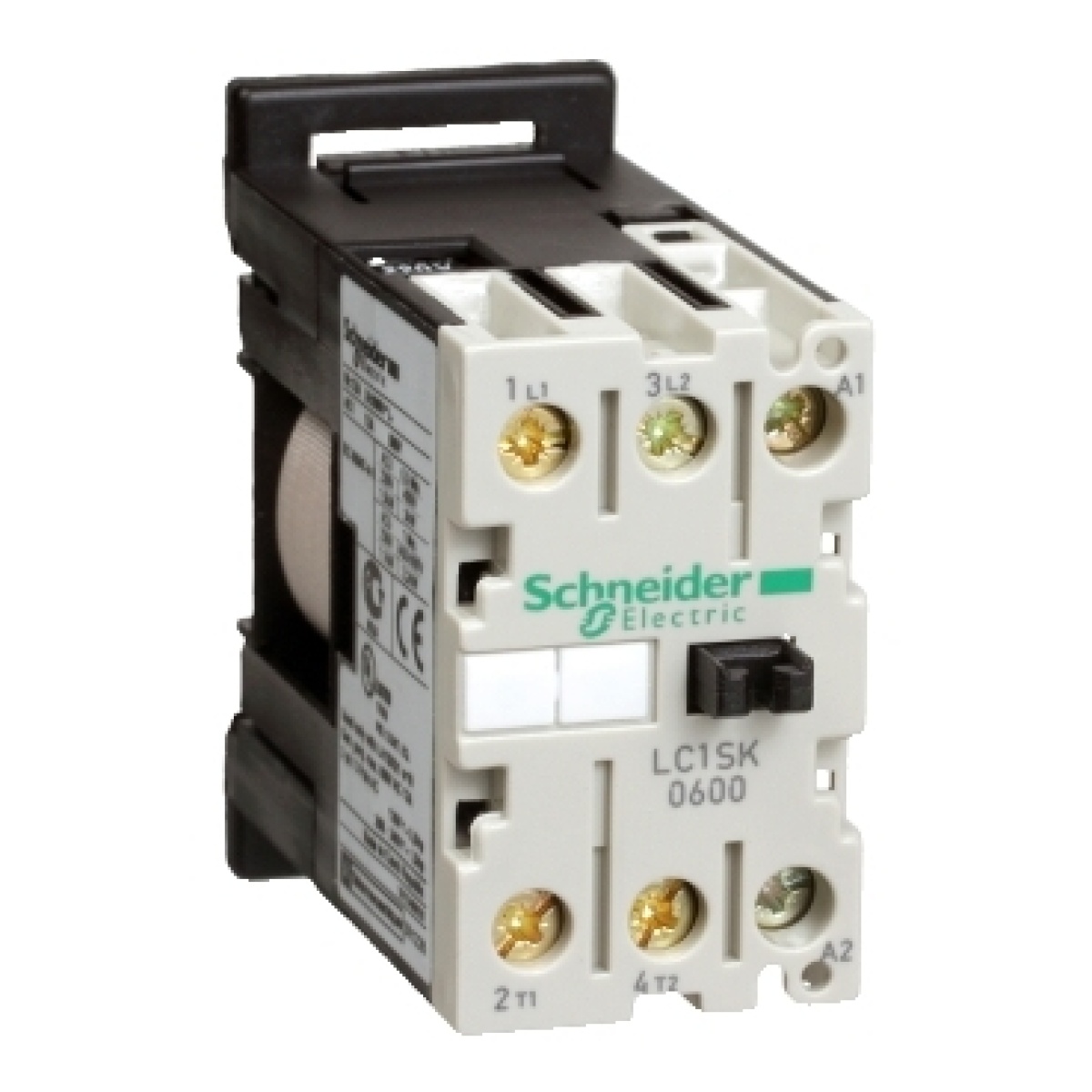

TeSys SK mini contactor - 2P 2 NO - AC-3 - 690 V 6 A - 110 V AC coil
Contactors, Motor Circuit Breakers and Accessories
TeSys SK mini contactor - 2P 2 NO - AC-3 - 690 V 6 A - 110 V AC coil
Manufacturer Ref:
LC1SK0600F7
Nortécnica Ref:
52LC1SK0600F7
EAN:
3389110563863
Description
Technical Information
Attributes
Width
27
Height
56
Depth
55.5
Suitable for distribution board
No
Rated operation power at AC-3, 400 V
2.2
Number of normally open contacts as main contact
2
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
6
Rated operation current Ie at AC-1, 400 V
12
Rated control supply voltage AC 50 Hz
110
110
Rated control supply voltage AC 60 Hz
110
110
Rated control supply voltage DC
-
-
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
-
Rated operation power at AC-4, 400 V
-
Rated operation power NEMA
-
Brands
Schneider
Technical Sheet
