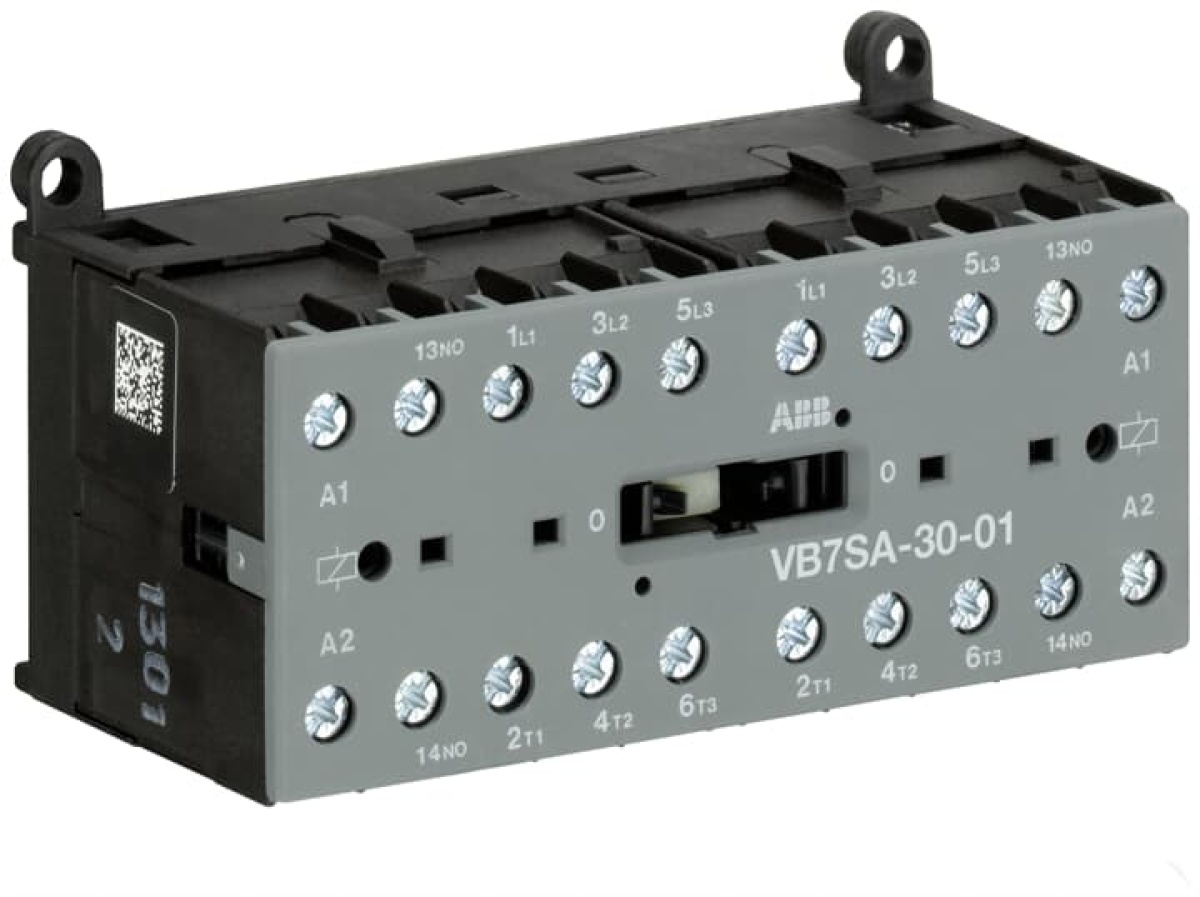

VB7SA-30-01-2.8-72 Mini Reversing Contactor 17 ... 32 V DC - 3 NO - 0 NC - Screw Terminals
Contactors, Motor Circuit Breakers and Accessories
VB7SA-30-01-2.8-72 Mini Reversing Contactor 17 ... 32 V DC - 3 NO - 0 NC - Screw Terminals
Manufacturer Ref:
GJL1313911R7012
Nortécnica Ref:
EAN:
4013614189050
Description
Technical Information
Attributes
Largura
96.2
Function
Reversing contactor
Height
57.5
Depth
46.7
Rated operation power at AC-3, 400 V
5.5
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
12
Rated operation current Ie at AC-1, 400 V
6
Number of auxiliary contacts as change-over contact
-
Suitable for rail mounting
Yes
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
17
32
Voltage type operating voltage
DC
Degree of protection IP
IP20
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Voltage type for actuating
DC
Degree of protection NEMA
1
Rated operation power NEMA
2.2371
Brands
ABB
