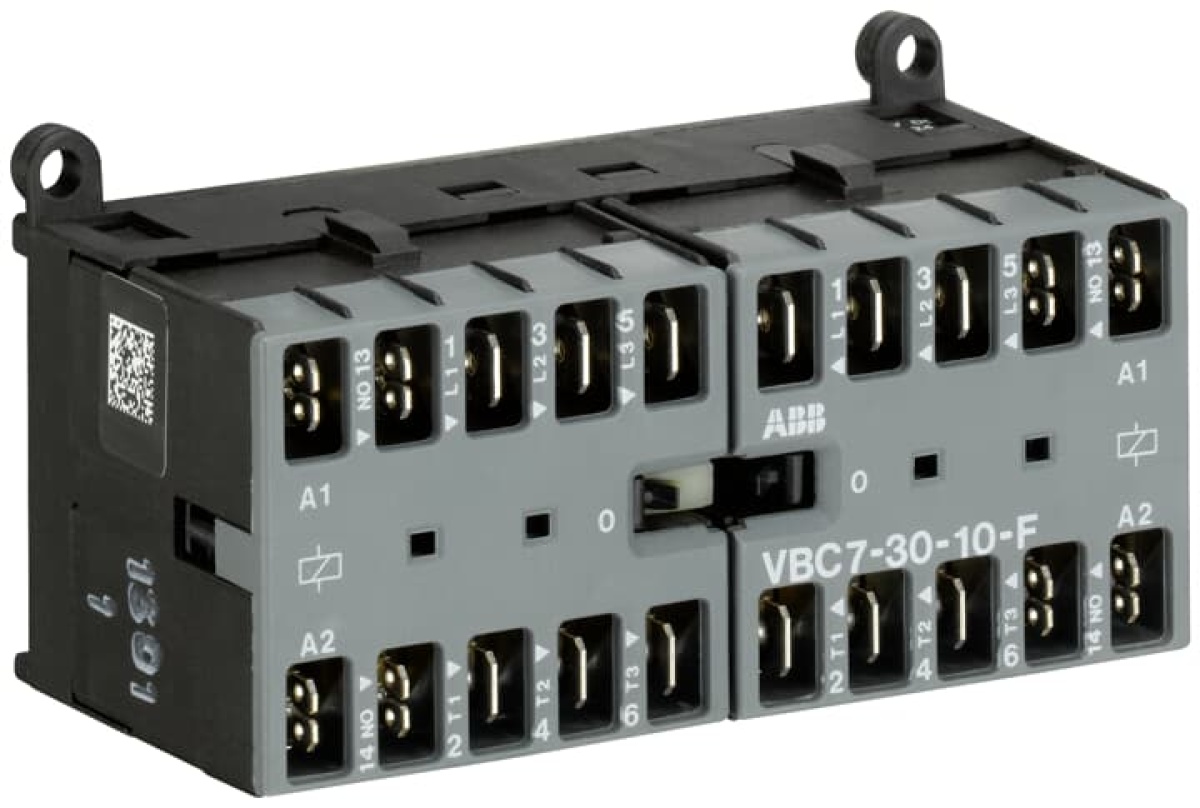

VBC7-30-10-F-01 Mini Reversing Contactor 24 V DC - 3 NO - 0 NC - Flat-Pin Connections
Contactors, Motor Circuit Breakers and Accessories
VBC7-30-10-F-01 Mini Reversing Contactor 24 V DC - 3 NO - 0 NC - Flat-Pin Connections
Manufacturer Ref:
GJL1313903R0101
Nortécnica Ref:
EAN:
4013614283659
Description
Technical Information
Attributes
Largura
96.2
Function
Reversing contactor
Height
57.5
Depth
46.7
Rated operation power at AC-3, 400 V
5.5
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-3, 400 V
12
Rated operation current Ie at AC-1, 400 V
6
Number of auxiliary contacts as change-over contact
-
Suitable for rail mounting
Yes
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
24
24
Voltage type operating voltage
-
Degree of protection IP
IP20
Type of electrical connection of main circuit
Flat plug-in connection
Type of electrical connection for auxiliary- and control current circuit
Other
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Voltage type for actuating
DC
Degree of protection NEMA
1
Rated operation power NEMA
2.2371
Brands
ABB
Technical Sheet
