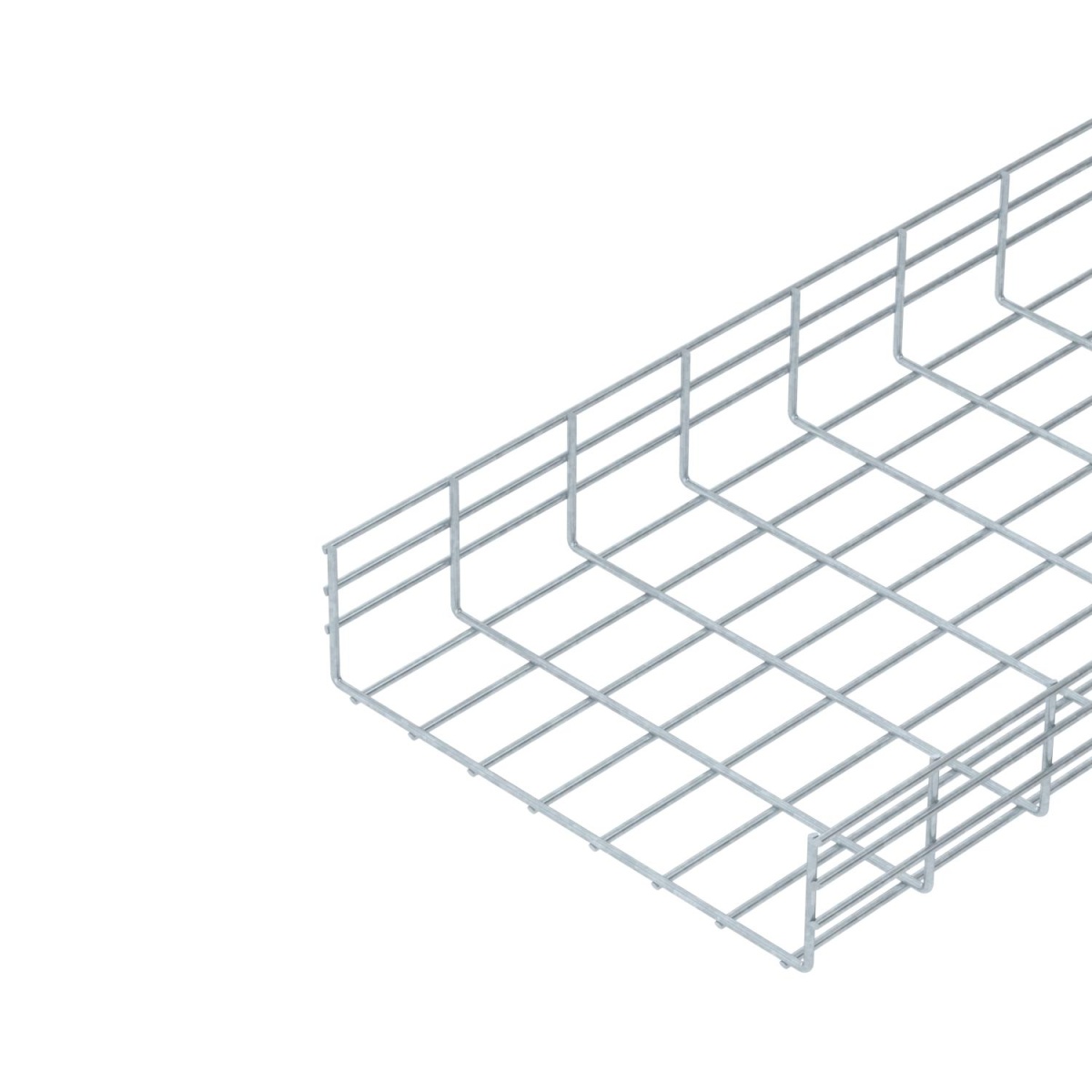

C.cabos varão grandes vãos SGR 105x400x3000 Aço galvanizado por imersão a quente após maquinação
Cable Routes
C.cabos varão grandes vãos SGR 105x400x3000 Aço galvanizado por imersão a quente após maquinação
Manufacturer Ref:
6003402
Nortécnica Ref:
256003402
EAN:
4012195651765
Description
Technical Information
Attributes

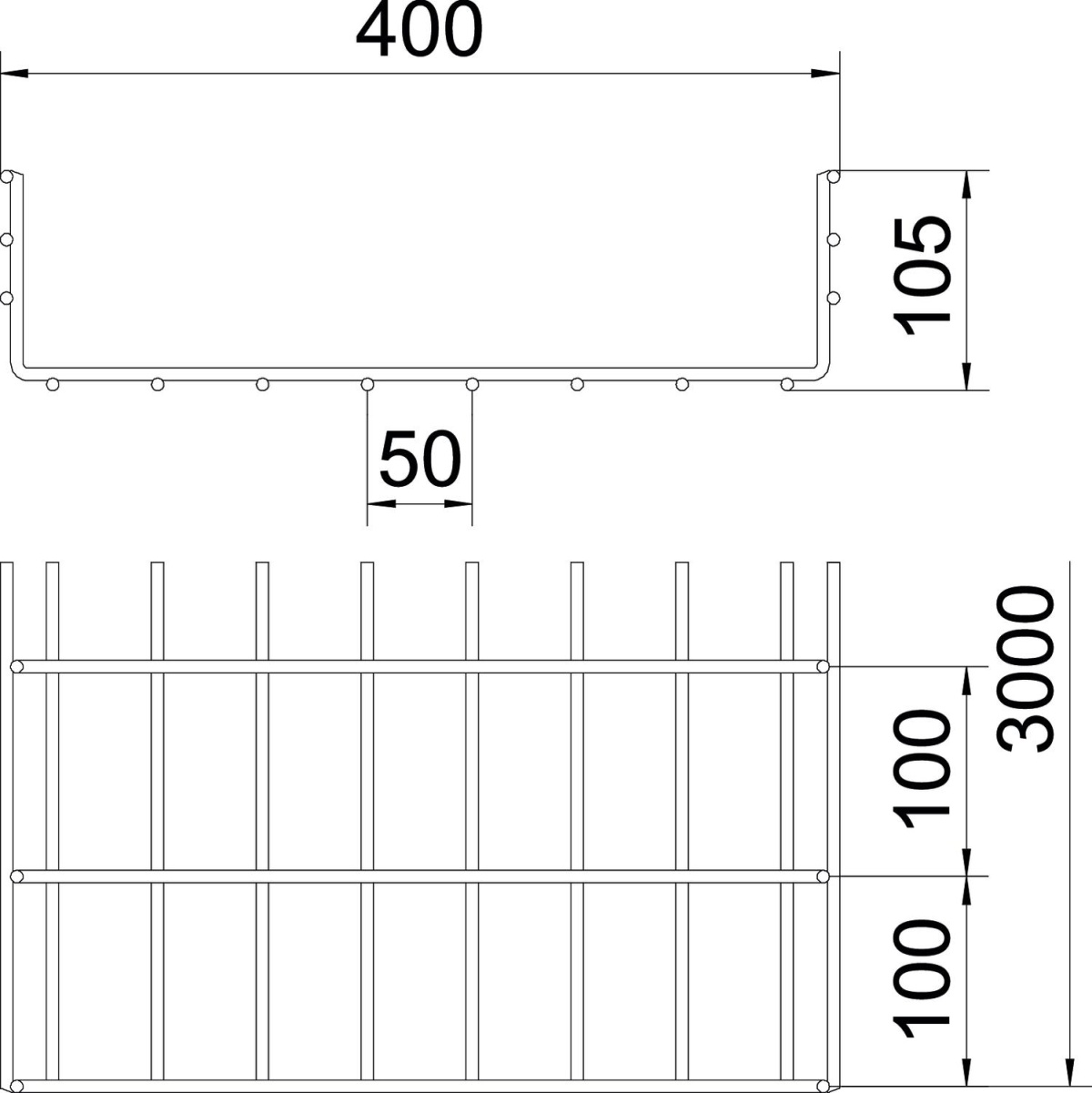

Colour
-
Width
400
Model
Without connector
Height
105
RAL-number
-
Surface protection
Hot-dip galvanised
EF000141
EV000115
Weight
4.4
Material quality
-
Length
3000
Operating temperature
-
-
Material
Steel
Integrated partition
-
Usable cross section
36300
Profile shape
U-shape
Working length
-
Suitable for circuit integrity
No
Load test type according to IEC 61537
Type II
Diameter longitudinal wire
6
Possible support spacing
1
4
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
3500
Safe working load according to IEC 61537 with support spacing 1.5 m
1900
Safe working load according to IEC 61537 with support spacing 2.0 m
1200
Safe working load according to IEC 61537 with support spacing 2.5 m
850
Safe working load according to IEC 61537 with support spacing 3.0 m
700
Safe working load according to IEC 61537 with support spacing 4.0 m
450
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Diameter transverse wire
6
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
80686
Technical Sheet
