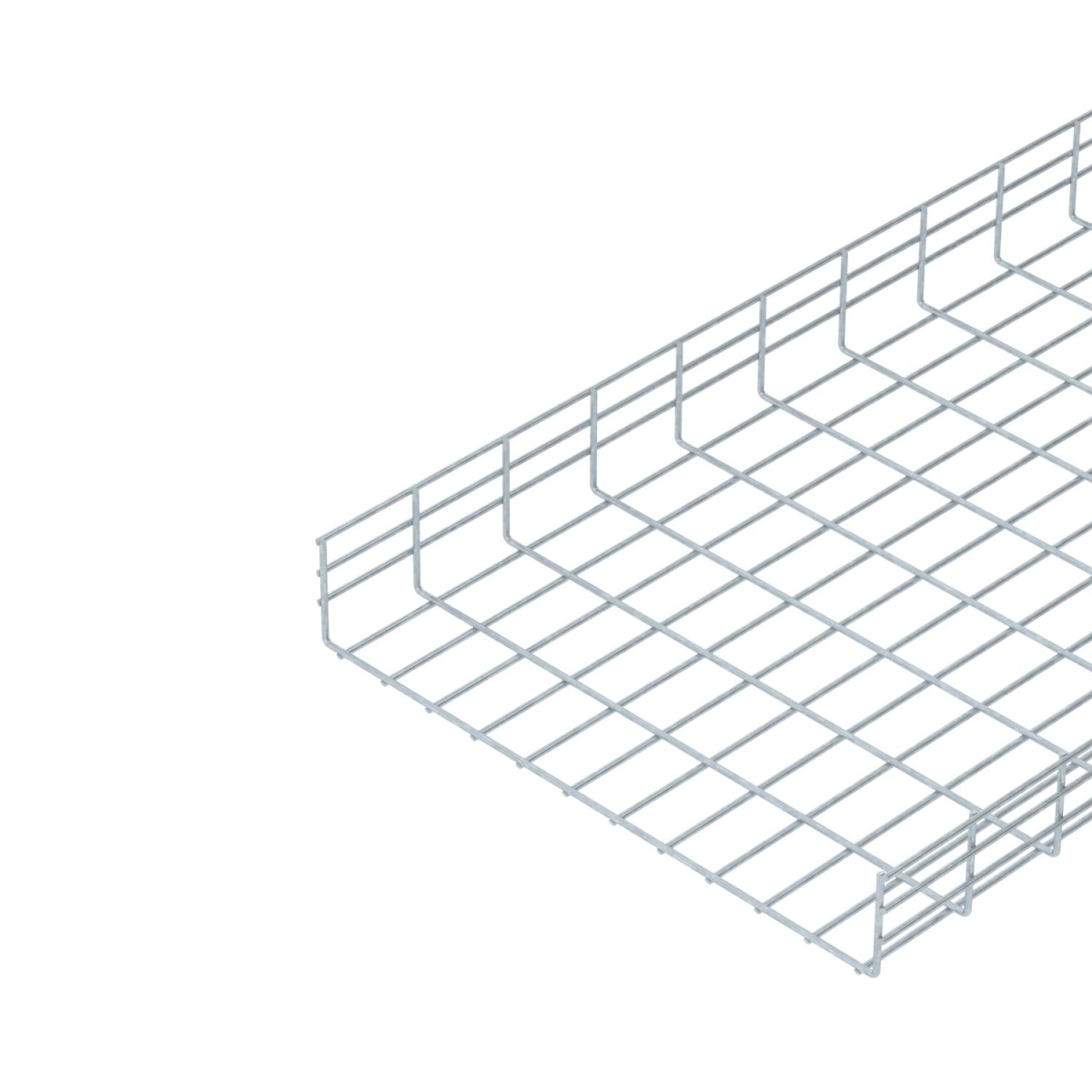

C.cabos varão grandes vãos SGR 105x600x3000 Aço galvanizado por imersão a quente após maquinação
Cable Routes
C.cabos varão grandes vãos SGR 105x600x3000 Aço galvanizado por imersão a quente após maquinação
Manufacturer Ref:
6003616
Nortécnica Ref:
256003616
EAN:
4012196397747
Description
Technical Information
Attributes
Colour
-
Width
600
Model
Without connector
Height
105
RAL-number
-
Surface protection
Hot-dip galvanised
EF000141
EV000115
Weight
5.75
Material quality
-
Length
3000
Operating temperature
-
-
Material
Steel
Integrated partition
-
Usable cross section
55400
Profile shape
U-shape
Working length
-
Suitable for circuit integrity
No
Load test type according to IEC 61537
Type II
Diameter longitudinal wire
6
Possible support spacing
1
4
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
4100
Safe working load according to IEC 61537 with support spacing 1.5 m
2200
Safe working load according to IEC 61537 with support spacing 2.0 m
1350
Safe working load according to IEC 61537 with support spacing 2.5 m
950
Safe working load according to IEC 61537 with support spacing 3.0 m
800
Safe working load according to IEC 61537 with support spacing 4.0 m
450
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Diameter transverse wire
6
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
