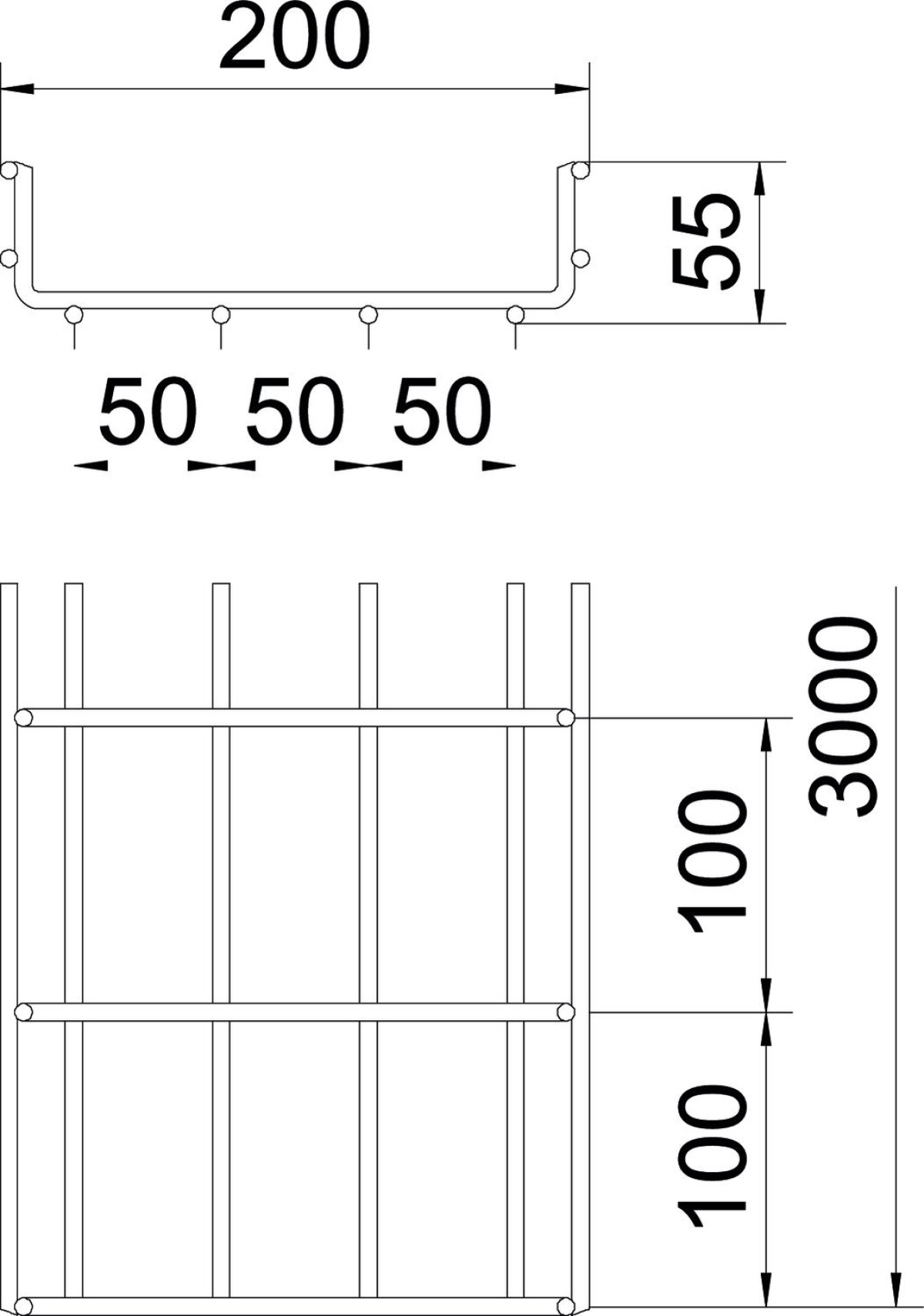

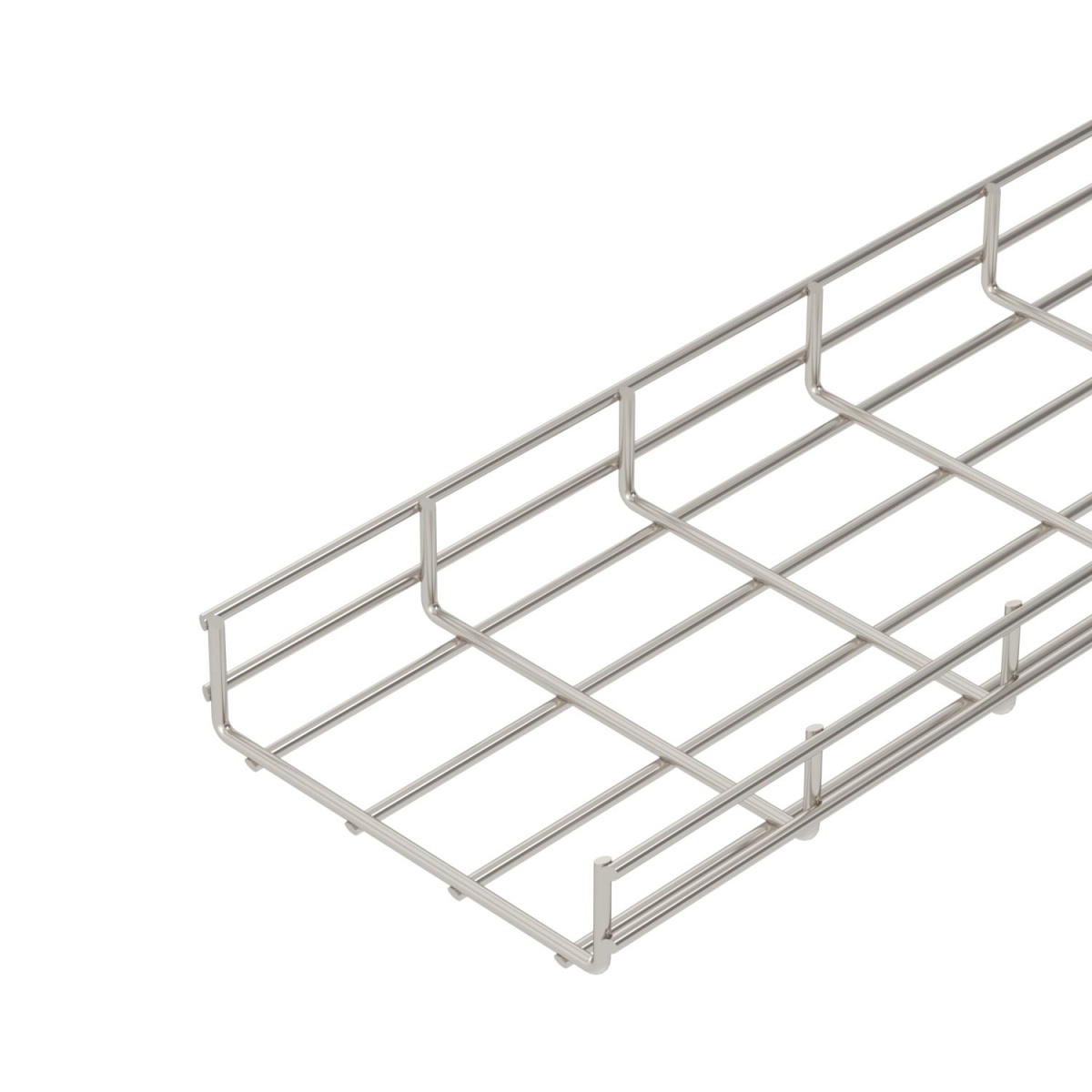

C.cabos varão grandes vãos SGR 55x200x3000 Aço inoxidável, livre de ferrugem A2 1.4301 brilhante, pós-tratamento
Cable Routes
C.cabos varão grandes vãos SGR 55x200x3000 Aço inoxidável, livre de ferrugem A2 1.4301 brilhante, pós-tratamento
Manufacturer Ref:
6000917
Nortécnica Ref:
EAN:
4012196622139
Description
Technical Information
Attributes
Colour
-
Width
200
Model
Without connector
Height
55
RAL-number
-
Surface protection
Untreated
EF000141
EV000115
Weight
2.31
Material quality
Stainless steel 304 (1.4301)
Length
3000
Operating temperature
-
-
Material
Stainless steel
Integrated partition
-
Usable cross section
8700
Profile shape
U-shape
Working length
-
Suitable for circuit integrity
-
Load test type according to IEC 61537
Type II
Diameter longitudinal wire
6
Possible support spacing
1
3
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
2000
Safe working load according to IEC 61537 with support spacing 1.5 m
1150
Safe working load according to IEC 61537 with support spacing 2.0 m
750
Safe working load according to IEC 61537 with support spacing 2.5 m
500
Safe working load according to IEC 61537 with support spacing 3.0 m
400
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Diameter transverse wire
6
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
80686
Technical Sheet
