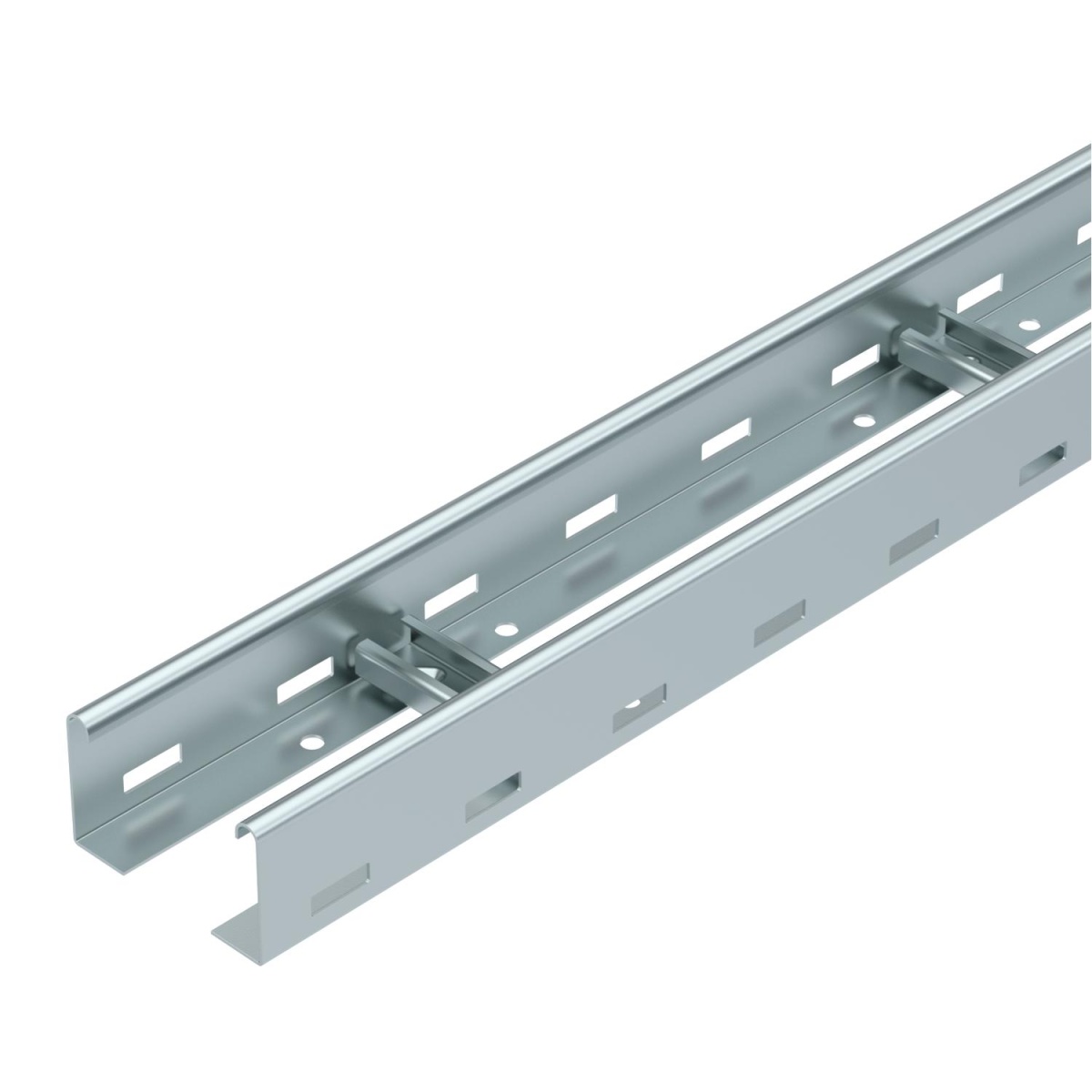

Cable ladder perforated rung, welded 60x100x3000 Aço galvanizado pelo método Sendzimir
Cable Routes
Cable ladder perforated rung, welded 60x100x3000 Aço galvanizado pelo método Sendzimir
Manufacturer Ref:
6209608
Nortécnica Ref:
256209608
EAN:
4012197347949
Description
Technical Information
Attributes
Colour
-
Width
100
Height
60
RAL-number
-
Surface protection
Continuously galvanised
Weight
2.45
Type of rung
Perforated profile
Side perforation
Yes
Material quality
-
Length
3000
Operating temperature
-
-
Material
Steel
Usable cross section
4000
Working length
-
Type of side joist
Flat profile
Suitable for circuit integrity
No
Rung centre spacing
300
Fixation rung
Welded
Load test type according to IEC 61537
-
Vertical cable ladder
No
Possible support spacing
1.5
4
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
2800
Safe working load according to IEC 61537 with support spacing 2.0 m
1300
Safe working load according to IEC 61537 with support spacing 2.5 m
800
Safe working load according to IEC 61537 with support spacing 3.0 m
600
Safe working load according to IEC 61537 with support spacing 4.0 m
250
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
80686
Technical Sheet
