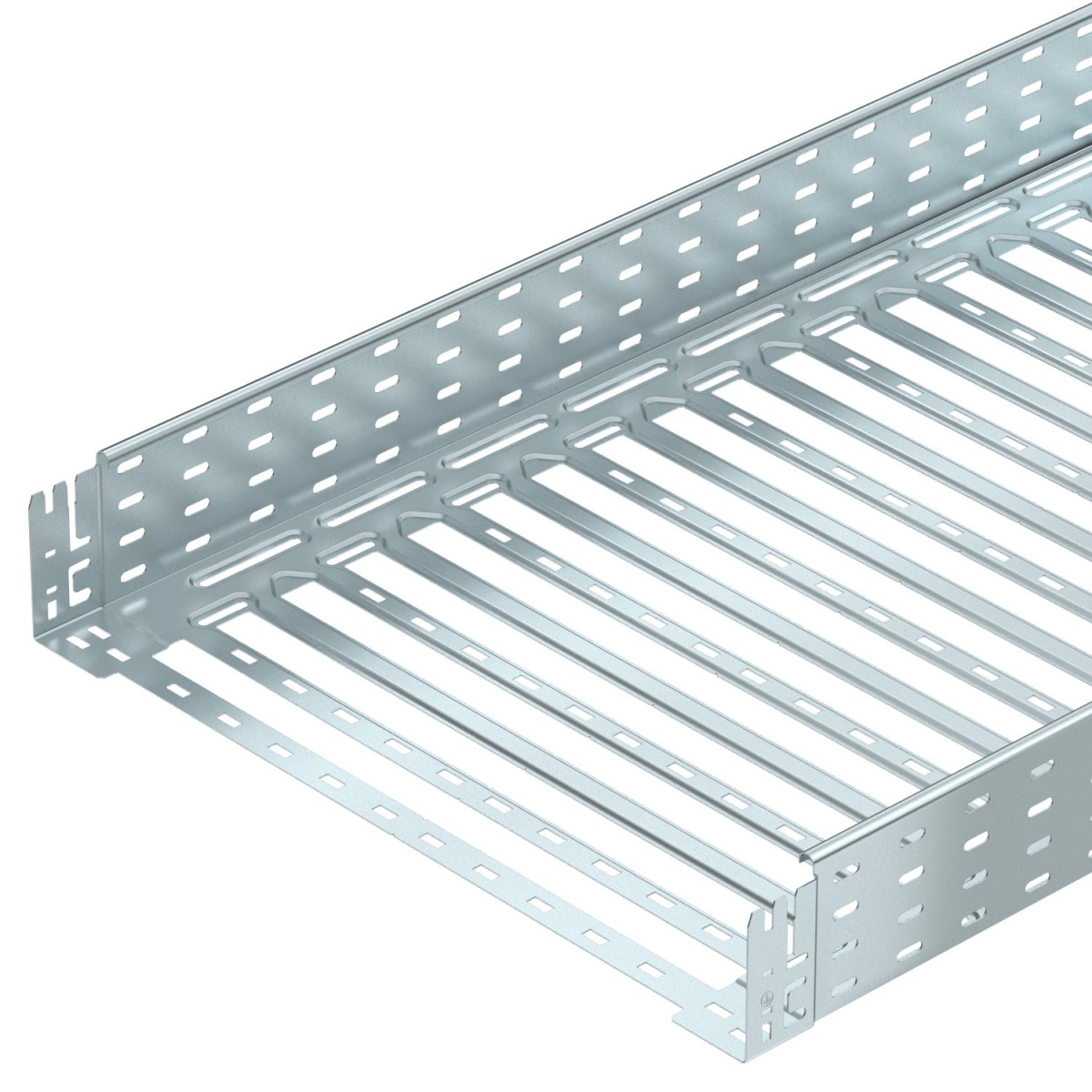

Caminho de cabos em chapa MKSM perfurado, união de encaixe 110x600x3050 Aço galvanizado pelo método Sendzimir
Cable Routes
Caminho de cabos em chapa MKSM perfurado, união de encaixe 110x600x3050 Aço galvanizado pelo método Sendzimir
Manufacturer Ref:
6059168
Nortécnica Ref:
256059168
EAN:
4012195831006
Description
Technical Information
Attributes
Colour
-
Width
600
Model
Integrated connector
Height
110
RAL-number
-
Surface protection
Continuously galvanised
EF000141
EV008273
Weight
4.45
Material thickness
1
Side perforation
Yes
Material quality
-
Length
3050
Operating temperature
-
-
Material
Steel
Bottom perforation
Yes
Usable cross section
65500
NATO-mounting holes
No
Working length
-
Suitable for circuit integrity
No
With cover
No
Load test type according to IEC 61537
Type II
Possible support spacing
1.5
3
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
1800
Safe working load according to IEC 61537 with support spacing 2.0 m
1300
Safe working load according to IEC 61537 with support spacing 2.5 m
920
Safe working load according to IEC 61537 with support spacing 3.0 m
650
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
