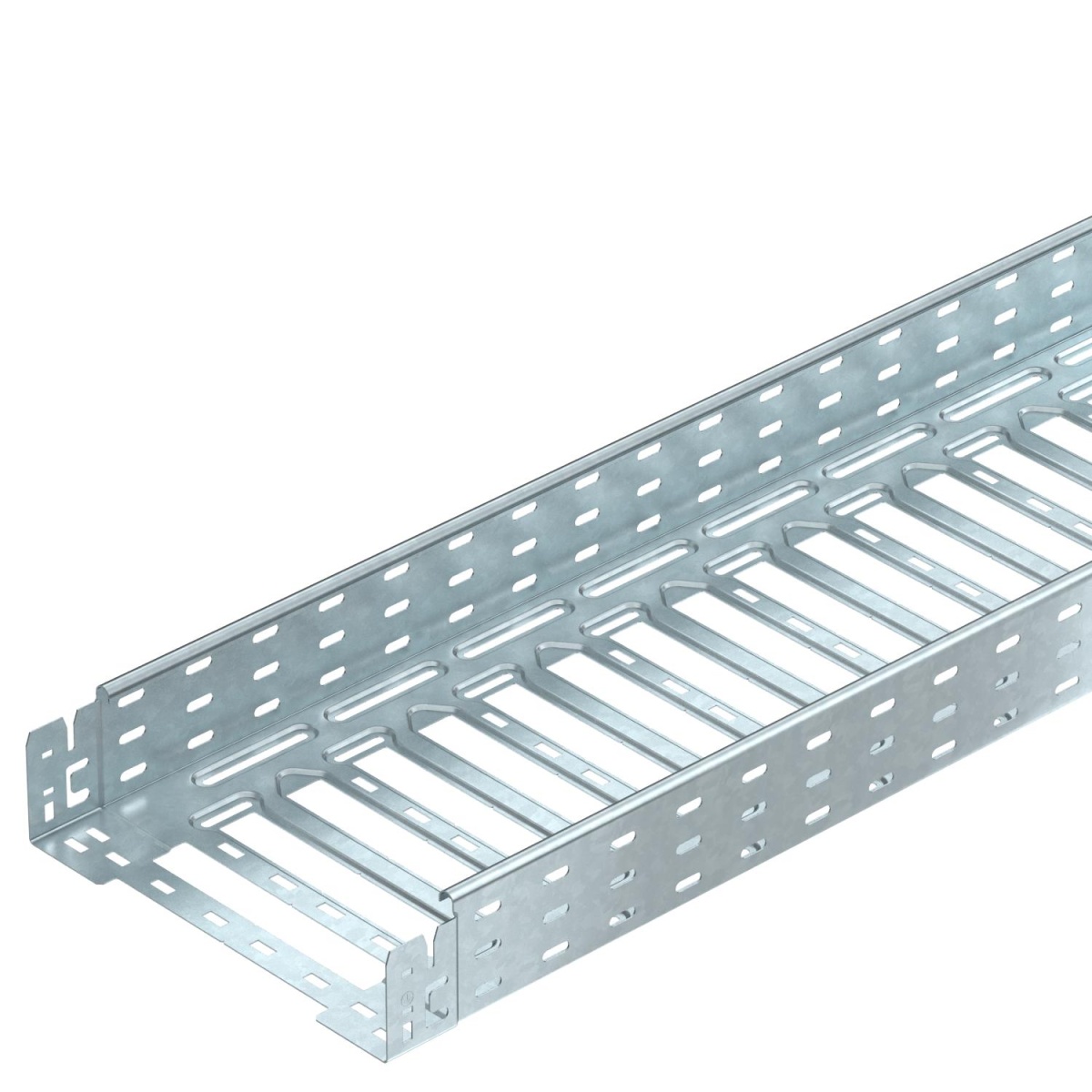

Caminho de cabos em chapa MKSM perfurado, união de encaixe 85x300x3050 Aço galvanizado por imersão a quente após maquinação
Cable Routes
Caminho de cabos em chapa MKSM perfurado, união de encaixe 85x300x3050 Aço galvanizado por imersão a quente após maquinação
Manufacturer Ref:
6059103
Nortécnica Ref:
EAN:
4012195830443
Description
Technical Information
Attributes
Colour
-
Width
300
Model
Integrated connector
Height
85
RAL-number
-
Surface protection
Hot-dip galvanised
EF000141
EV008273
Weight
3.19
Material thickness
1
Side perforation
Yes
Material quality
-
Length
3050
Operating temperature
-
-
Material
Steel
Bottom perforation
Yes
Usable cross section
25300
NATO-mounting holes
No
Working length
-
Suitable for circuit integrity
No
With cover
No
Load test type according to IEC 61537
Type II
Possible support spacing
1.5
2.5
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
1500
Safe working load according to IEC 61537 with support spacing 2.0 m
1250
Safe working load according to IEC 61537 with support spacing 2.5 m
1000
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
