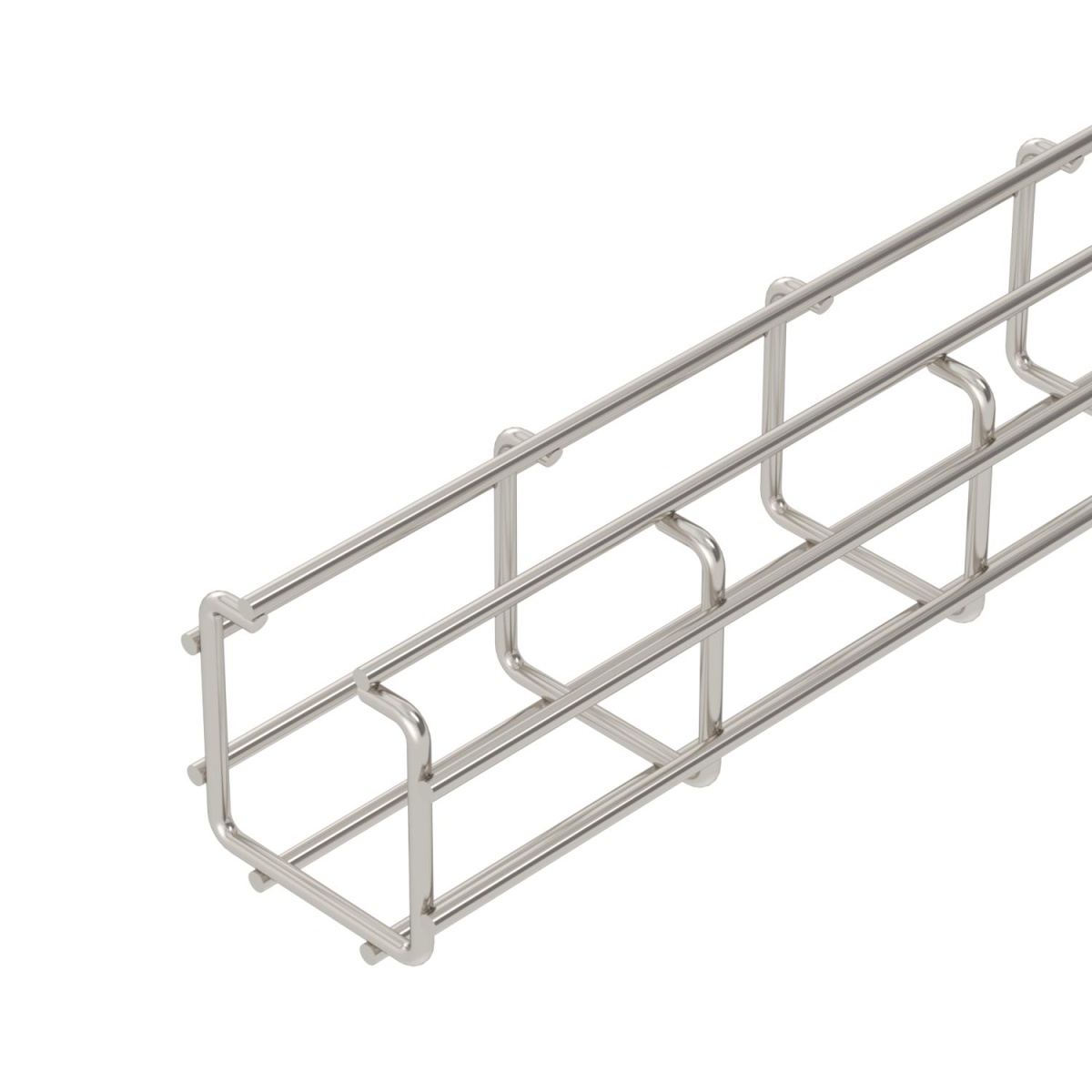

Caminho de cabos em varão C 50x50x3000 Aço inoxidável, livre de ferrugem A2 1.4301 brilhante, pós-tratamento
Cable Routes
Caminho de cabos em varão C 50x50x3000 Aço inoxidável, livre de ferrugem A2 1.4301 brilhante, pós-tratamento
Manufacturer Ref:
6016200
Nortécnica Ref:
EAN:
4012196012671
Description
Technical Information
Attributes
Colour
-
Width
50
Model
Without connector
Height
50
RAL-number
-
Surface protection
Untreated
EF000141
EV000115
Weight
1.25
Material quality
Stainless steel 304 (1.4301)
Length
3000
Operating temperature
-
-
Material
Stainless steel
Integrated partition
None
Usable cross section
1300
Profile shape
C-shape
Working length
-
Suitable for circuit integrity
No
Load test type according to IEC 61537
Type II
Diameter longitudinal wire
4.5
Possible support spacing
1
2
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
950
Safe working load according to IEC 61537 with support spacing 1.5 m
600
Safe working load according to IEC 61537 with support spacing 2.0 m
350
Safe working load according to IEC 61537 with support spacing 2.5 m
-
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Diameter transverse wire
4.5
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
