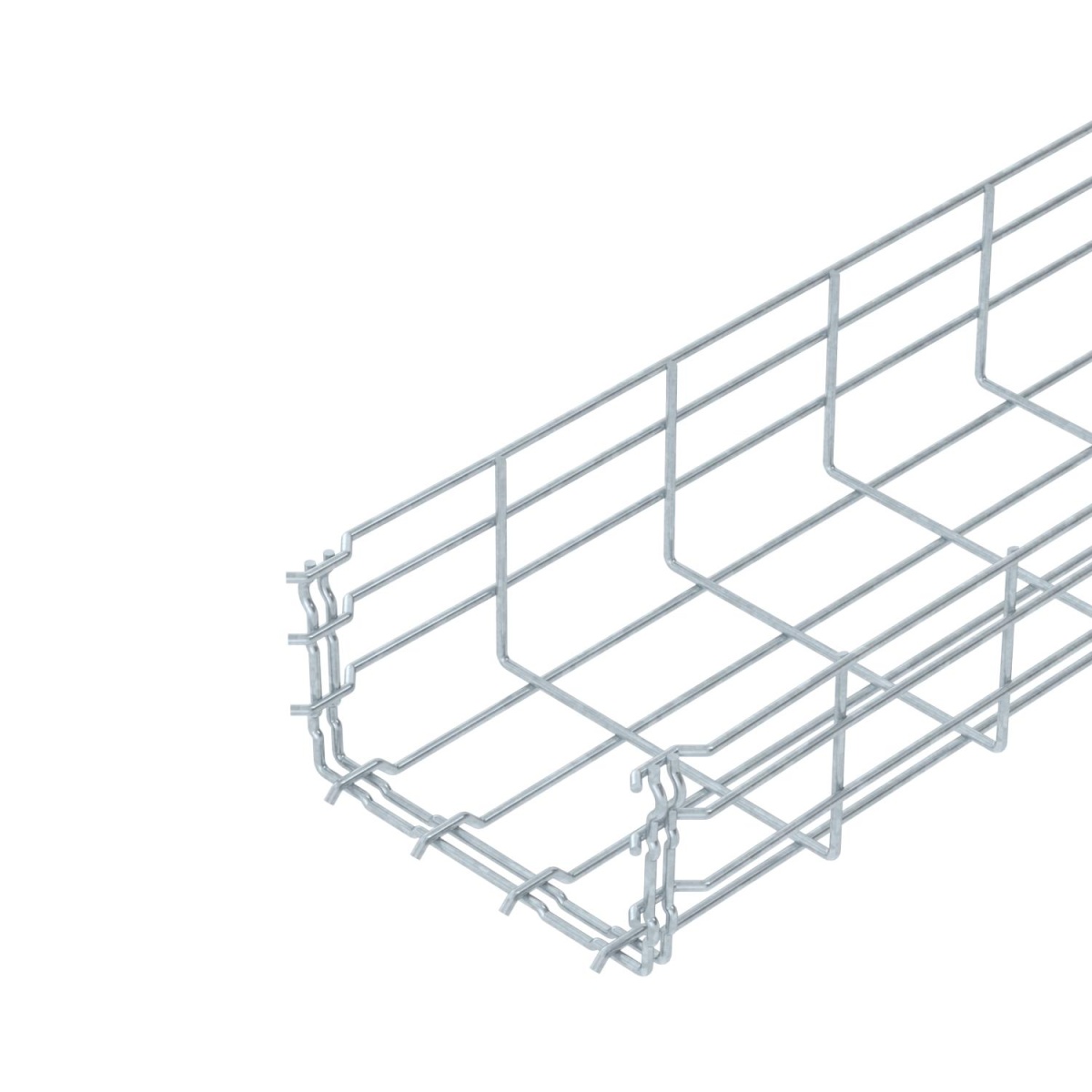

Caminho de cabos em varão GRM 105x200x3000 Aço galvanizado por imersão a quente após maquinação
Cable Routes
Caminho de cabos em varão GRM 105x200x3000 Aço galvanizado por imersão a quente após maquinação
Manufacturer Ref:
6002435
Nortécnica Ref:
256002435
EAN:
4012196021475
Description
Technical Information
Attributes
Colour
-
Width
200
Model
Integrated connector
Height
105
RAL-number
-
Surface protection
Hot-dip galvanised
EF000141
EV008273
Weight
2.02
Material quality
-
Length
3000
Operating temperature
-
-
Material
Steel
Integrated partition
None
Usable cross section
17500
Profile shape
U-shape
Working length
-
Suitable for circuit integrity
No
Load test type according to IEC 61537
Type II
Diameter longitudinal wire
4.8
Possible support spacing
1
3
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
1000
Safe working load according to IEC 61537 with support spacing 1.5 m
700
Safe working load according to IEC 61537 with support spacing 2.0 m
400
Safe working load according to IEC 61537 with support spacing 2.5 m
250
Safe working load according to IEC 61537 with support spacing 3.0 m
250
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Diameter transverse wire
4.8
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
80686
Technical Sheet
