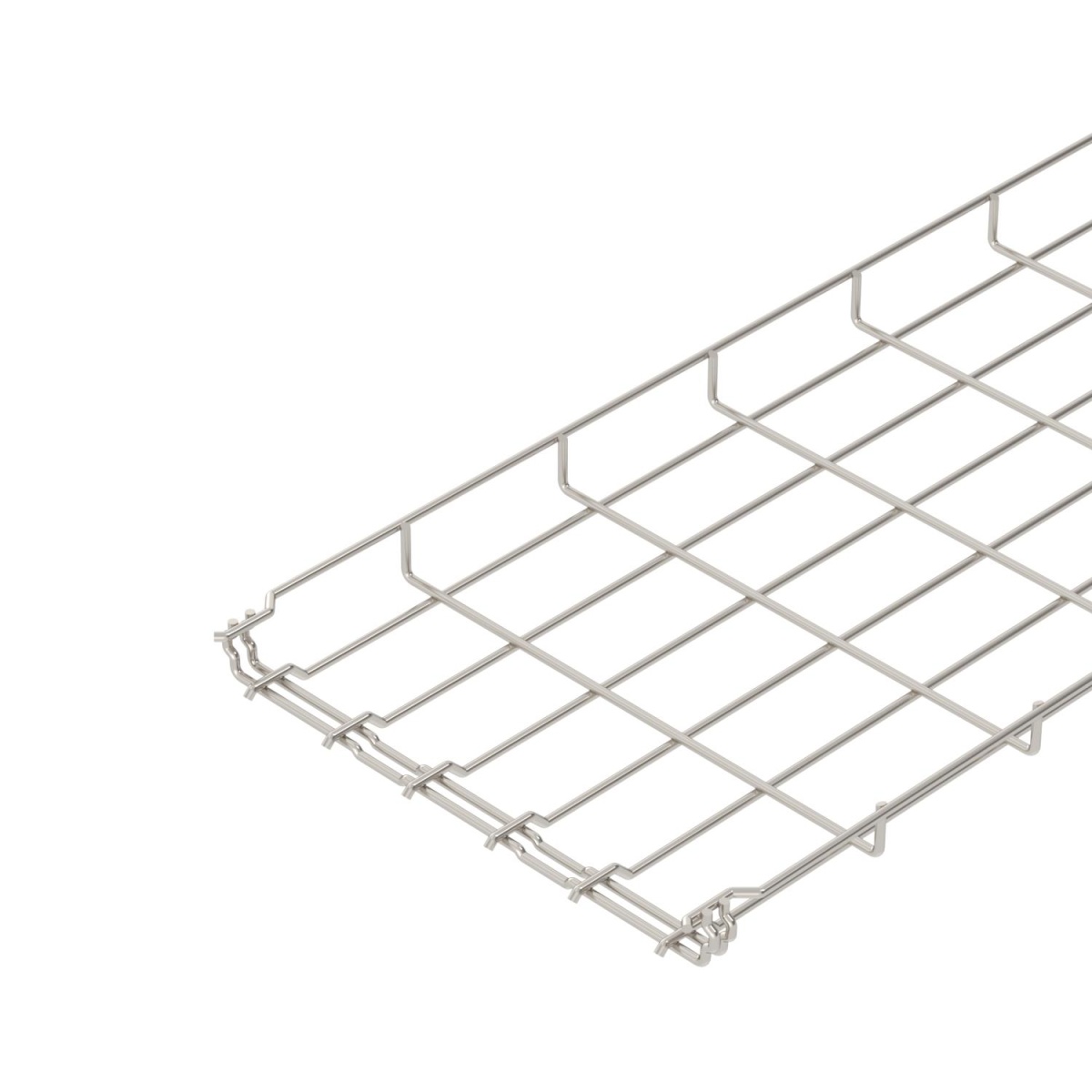

Caminho de cabos em varão GRM 35x300x3000 Aço inoxidável, livre de ferrugem A2 1.4301 brilhante, pós-tratamento
Cable Routes
Caminho de cabos em varão GRM 35x300x3000 Aço inoxidável, livre de ferrugem A2 1.4301 brilhante, pós-tratamento
Manufacturer Ref:
6000059
Nortécnica Ref:
EAN:
4012195470731
Description
Technical Information
Attributes
Colour
-
Width
300
Model
Integrated connector
Height
35
RAL-number
-
Surface protection
Untreated
EF000141
EV008273
Weight
1.59
Material quality
Stainless steel 304 (1.4301)
Length
3000
Operating temperature
-
-
Material
Stainless steel
Integrated partition
None
Usable cross section
10500
Profile shape
U-shape
Working length
-
Suitable for circuit integrity
No
Load test type according to IEC 61537
Type II
Diameter longitudinal wire
4.8
Possible support spacing
1
2
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
750
Safe working load according to IEC 61537 with support spacing 1.5 m
220
Safe working load according to IEC 61537 with support spacing 2.0 m
150
Safe working load according to IEC 61537 with support spacing 2.5 m
-
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Diameter transverse wire
4.8
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
80686
Technical Sheet
