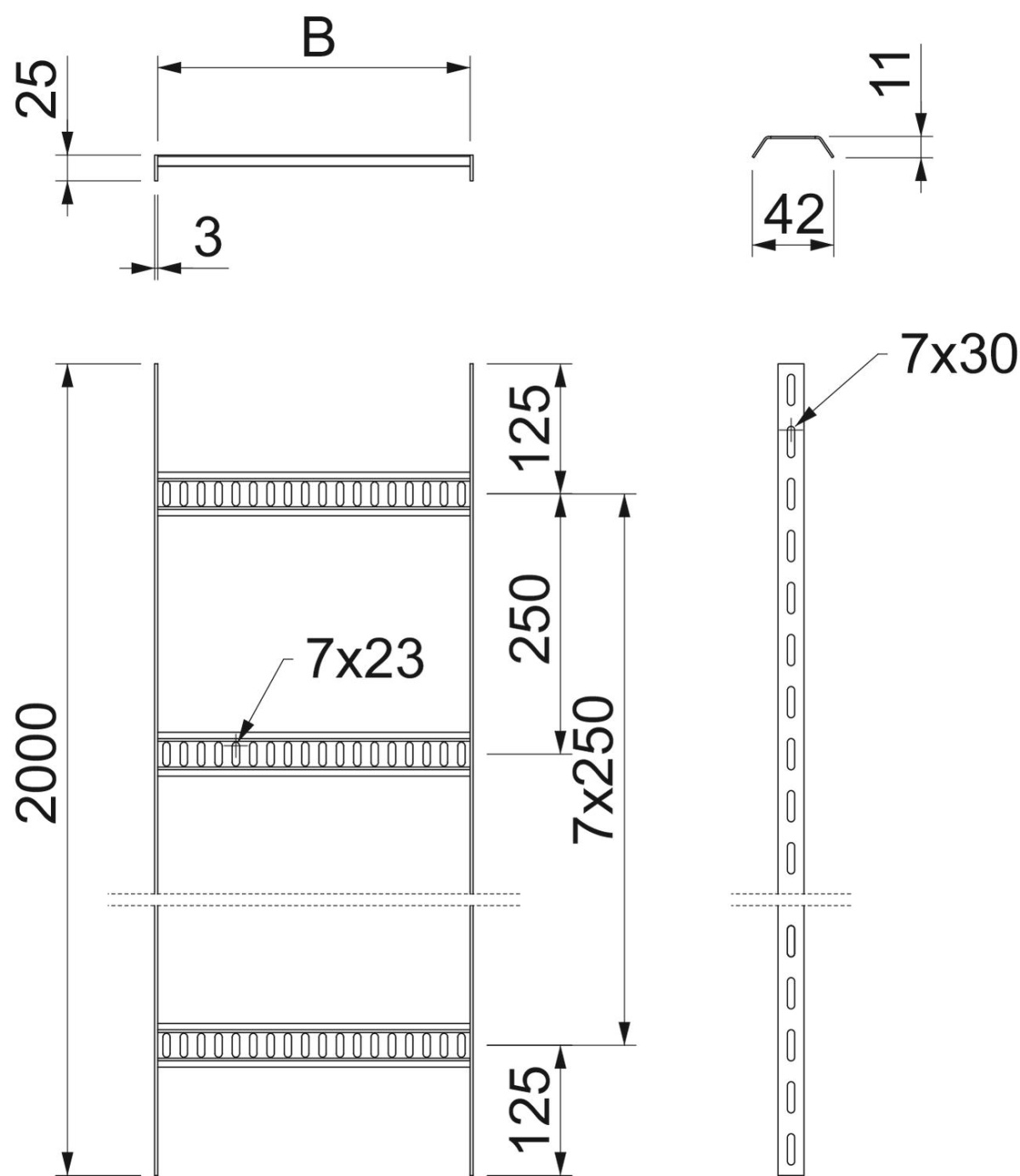

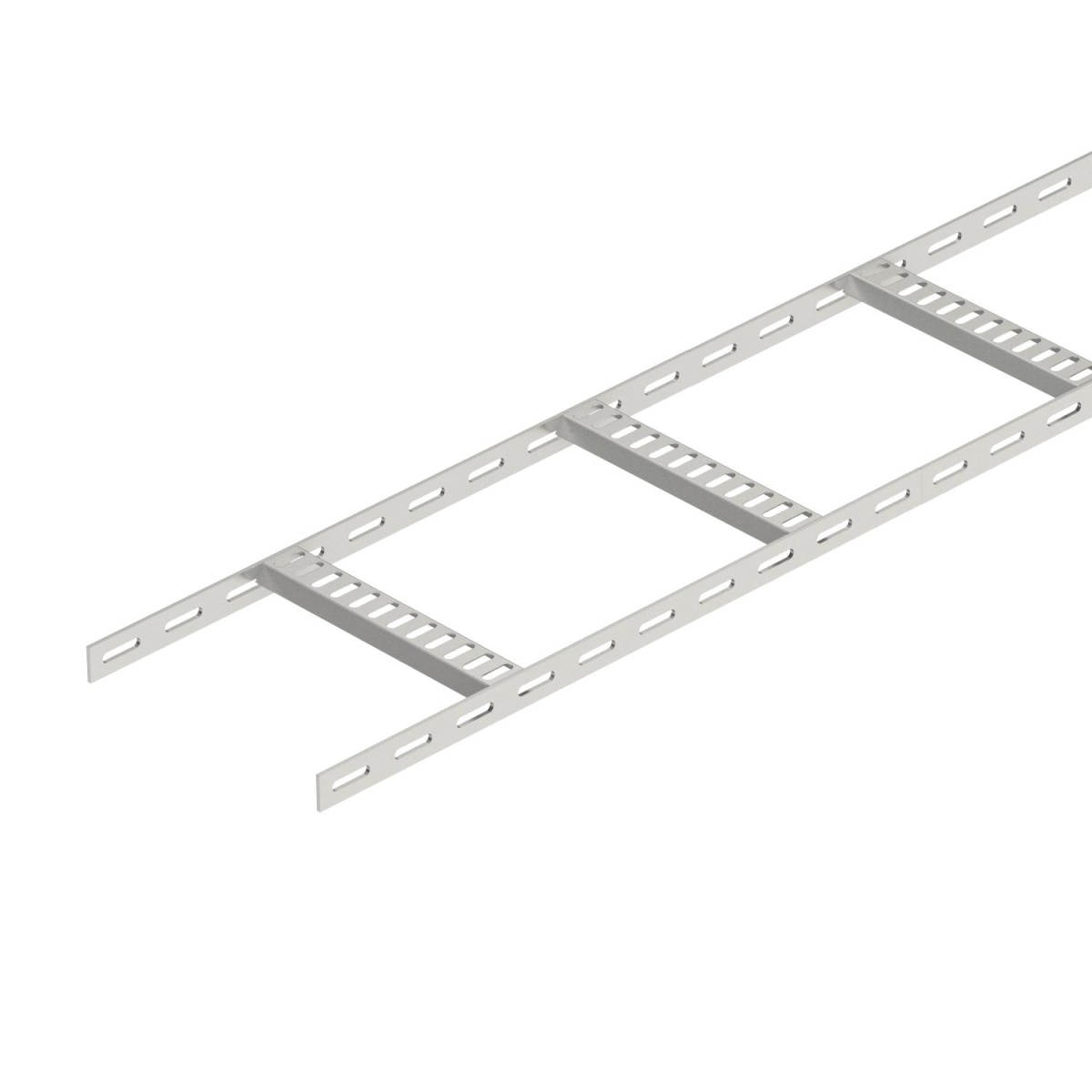

Caminho de cabos naval para caminho cabo escada naval 25x206x2000 Aço inoxidável A4 1.4571 brilhante, pós-tratamento
Cable Routes
Caminho de cabos naval para caminho cabo escada naval 25x206x2000 Aço inoxidável A4 1.4571 brilhante, pós-tratamento
Manufacturer Ref:
7099708
Nortécnica Ref:
EAN:
4012196509829
Description
Technical Information
Attributes
Colour
-
Width
200
Height
25
RAL-number
-
Surface protection
Untreated
Weight
1.28
Type of rung
Perforated profile
Side perforation
Yes
Material quality
Stainless steel 316 Ti (1.4571)
Length
2000
Working temperature
-
-
Material
Stainless steel
Usable cross section
-
Working length
-
Type of side joist
Flat profile
Suitable for circuit integrity
No
Rung centre spacing
250
Fixation rung
Welded
Load test type according to IEC 61537
-
Vertical cable ladder
No
Possible support spacing
-
-
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
1600
Safe working load according to IEC 61537 with support spacing 1.5 m
650
Safe working load according to IEC 61537 with support spacing 2.0 m
250
Safe working load according to IEC 61537 with support spacing 2.5 m
-
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
OBO
Technical Sheet
