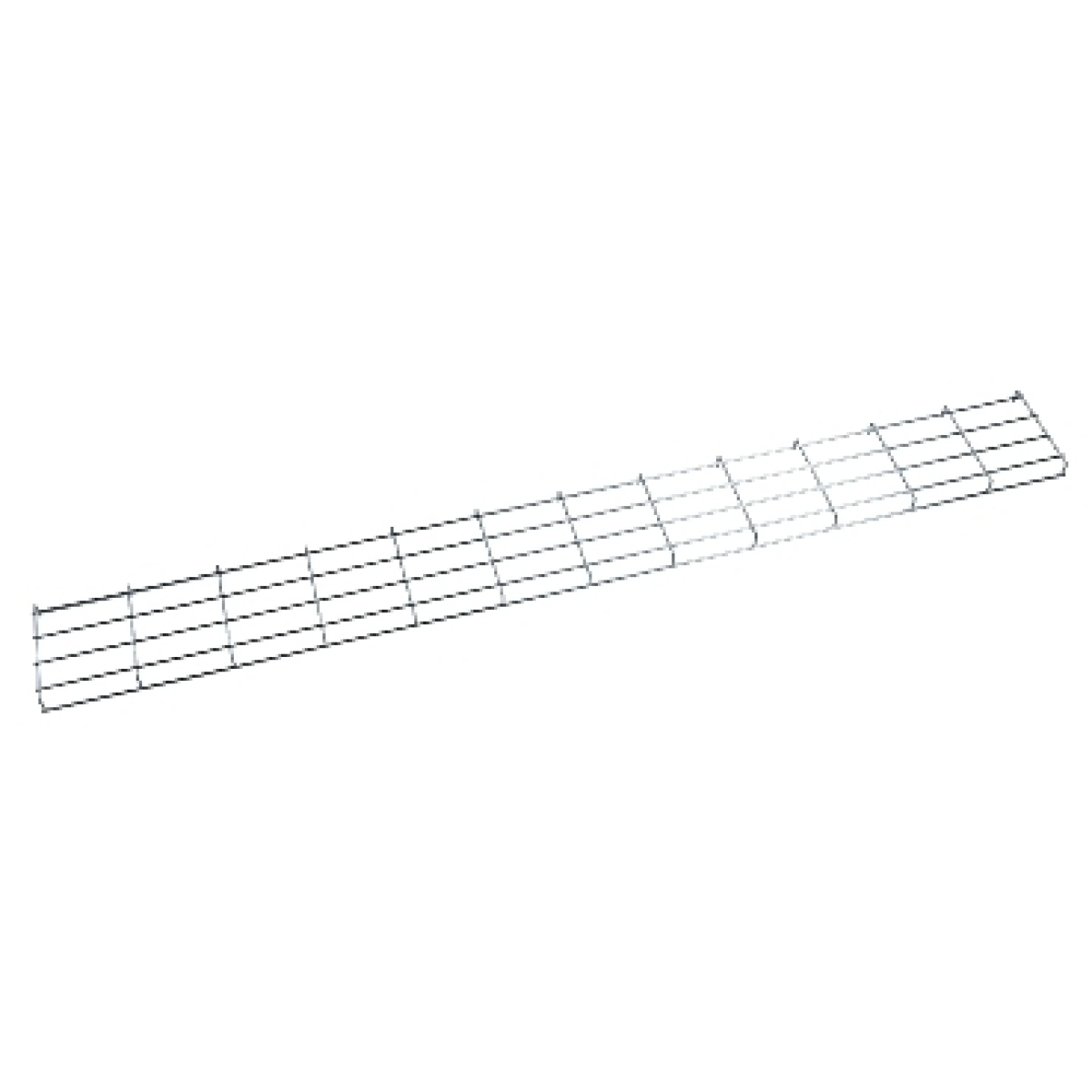

Performa - vertical mesh tray - useful depth 35mm
Cable Routes
Performa - vertical mesh tray - useful depth 35mm
Manufacturer Ref:
NSYBPC3
Nortécnica Ref:
EAN:
3606480148811
Description
Technical Information
Attributes
Colour
Grey
Width
200
Model
Without connector
Height
35
RAL-number
7035
Surface protection
Galvanic/electrolytic zinc plated and coated
EF000141
EV000154
Weight
-
Material quality
Other
Length
1800
Operating temperature
-
-
Material
Steel
Integrated partition
One
Usable cross section
-
Profile shape
U-shape
Working length
1800
Suitable for circuit integrity
No
Load test type according to IEC 61537
-
Diameter longitudinal wire
-
Possible support spacing
-
-
Safe working load according to IEC 61537 with support spacing 0.5 m
-
Safe working load according to IEC 61537 with support spacing 1.0 m
-
Safe working load according to IEC 61537 with support spacing 1.5 m
-
Safe working load according to IEC 61537 with support spacing 2.0 m
-
Safe working load according to IEC 61537 with support spacing 2.5 m
-
Safe working load according to IEC 61537 with support spacing 3.0 m
-
Safe working load according to IEC 61537 with support spacing 4.0 m
-
Safe working load according to IEC 61537 with support spacing 5.0 m
-
Safe working load according to IEC 61537 with support spacing 6.0 m
-
Safe working load according to IEC 61537 with support spacing 7.0 m
-
Safe working load according to IEC 61537 with support spacing 8.0 m
-
Safe working load according to IEC 61537 with support spacing 10.0 m
-
Diameter transverse wire
-
Safe working load according to IEC 61537 with support spacing 9.0 m
-
Safe working load according to IEC 61537 with support spacing 11.0 m
-
Safe working load according to IEC 61537 with support spacing 12.0 m
-
Brands
Schneider
