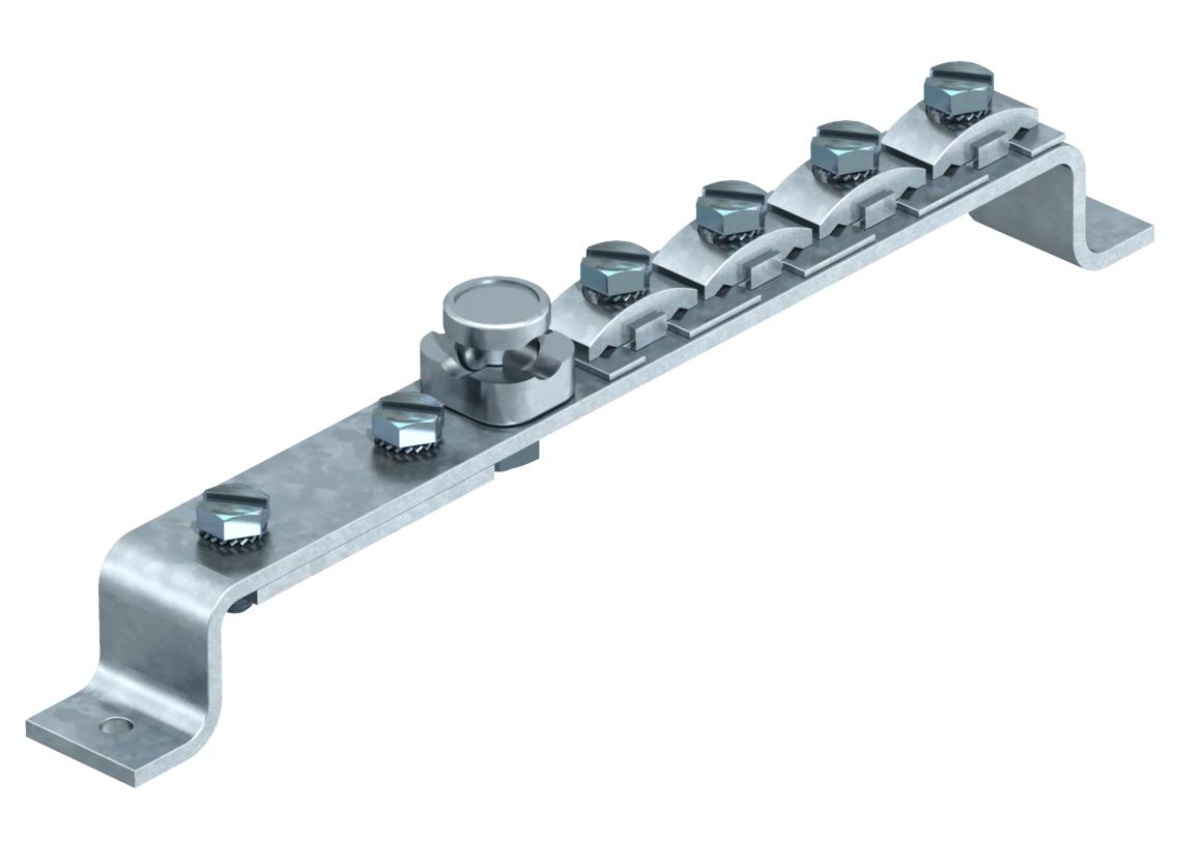

Barra equipotencial 300mm Latão
Equipotential Bonding Bar
Barra equipotencial 300mm Latão
Manufacturer Ref:
5015014
Nortécnica Ref:
EAN:
4012195378075
Description
Technical Information
Attributes

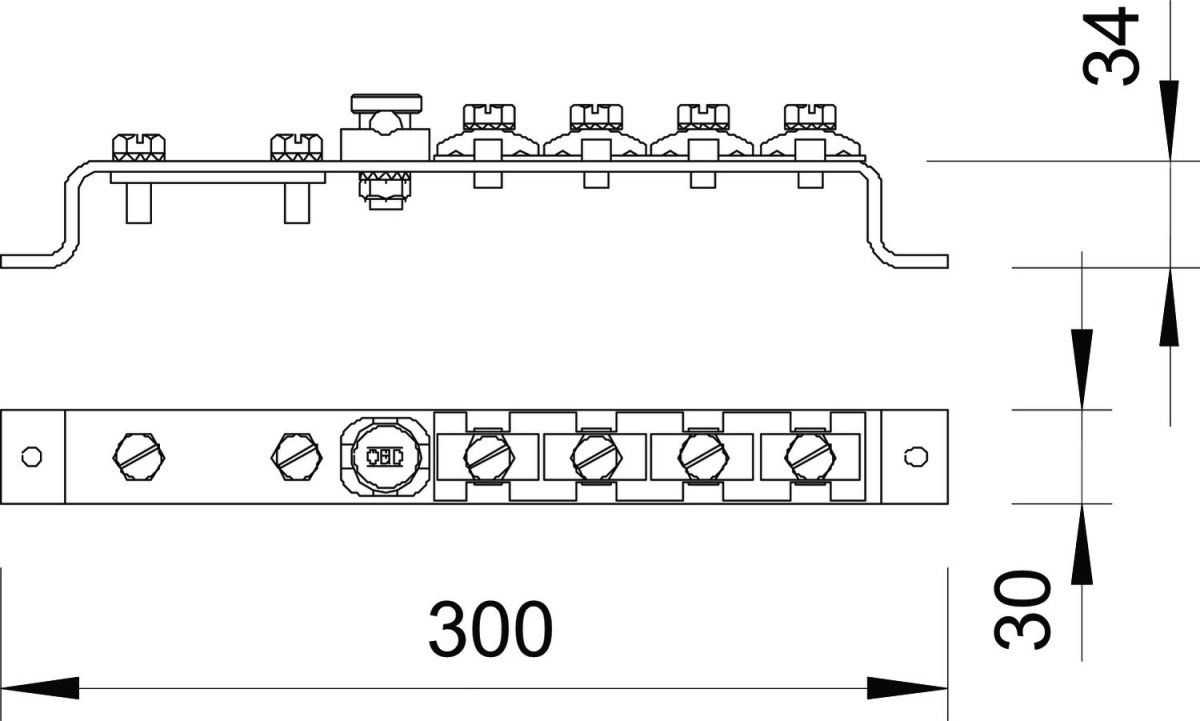

Width
30
Model
Without covering cap
Height
34
Construction type
Surface mounting fix
Length
300
Number of connections flat conductor 30 mm
0
Number of connections flat conductor 40 mm
1
Number of connections conductor to 16 mm² fixed
0
Number of connections conductor to 25 mm² fixed
8
Number of connections conductor to 6 mm² fixed
0
Number of connections conductor to 95 mm² fixed
0
Number of connections round conductor 10 mm
0
Number of connections round conductor 8 mm
0
Number of connections round conductor 8-10 mm
1
Explosion-tested version
-
Insulator
No
Surface of the clamp
Nickel-plated
Surface of the contact rail
Nickel-plated
Material of clamp
Brass
Material of contact rail
Brass
Number of connections round conductor total
1
Brands
80686
Technical Sheet
