Barra equipotencial para casa de banho 409 Latão
Equipotential Bonding Bar
Barra equipotencial para casa de banho 409 Latão
Manufacturer Ref:
5015553
Nortécnica Ref:
EAN:
4012195378495
Description
Technical Information
Attributes

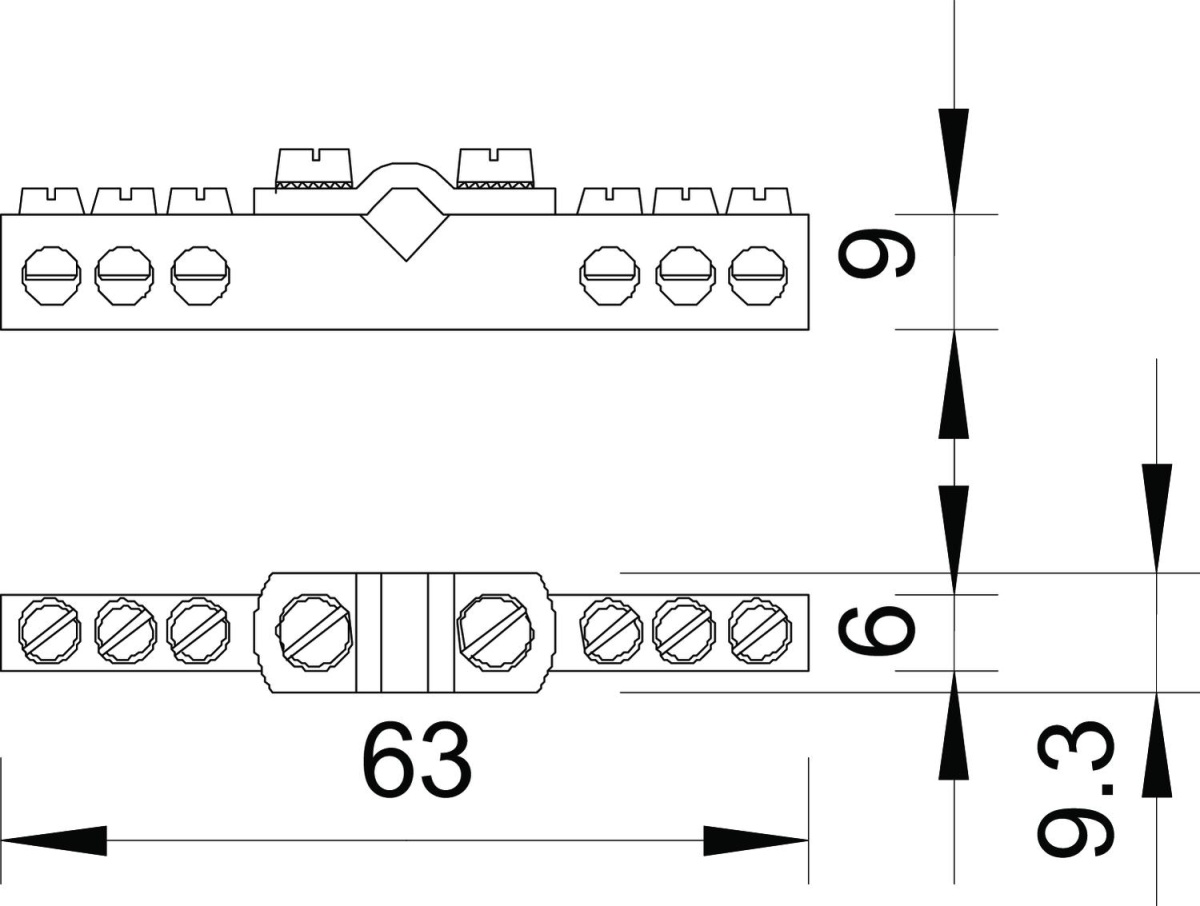

Width
9.3
Model
Without covering cap
Height
9
Construction type
Surface mounting fix
Length
63
Number of connections flat conductor 30 mm
0
Number of connections flat conductor 40 mm
0
Number of connections conductor to 16 mm² fixed
1
Number of connections conductor to 25 mm² fixed
0
Number of connections conductor to 6 mm² fixed
6
Number of connections conductor to 95 mm² fixed
0
Number of connections round conductor 10 mm
0
Number of connections round conductor 8 mm
0
Number of connections round conductor 8-10 mm
0
Explosion-tested version
-
Insulator
No
Surface of the clamp
Galvanic/electrolytic zinc plated
Surface of the contact rail
Nickel-plated
Material of clamp
Steel
Material of contact rail
Brass
Number of connections round conductor total
7
