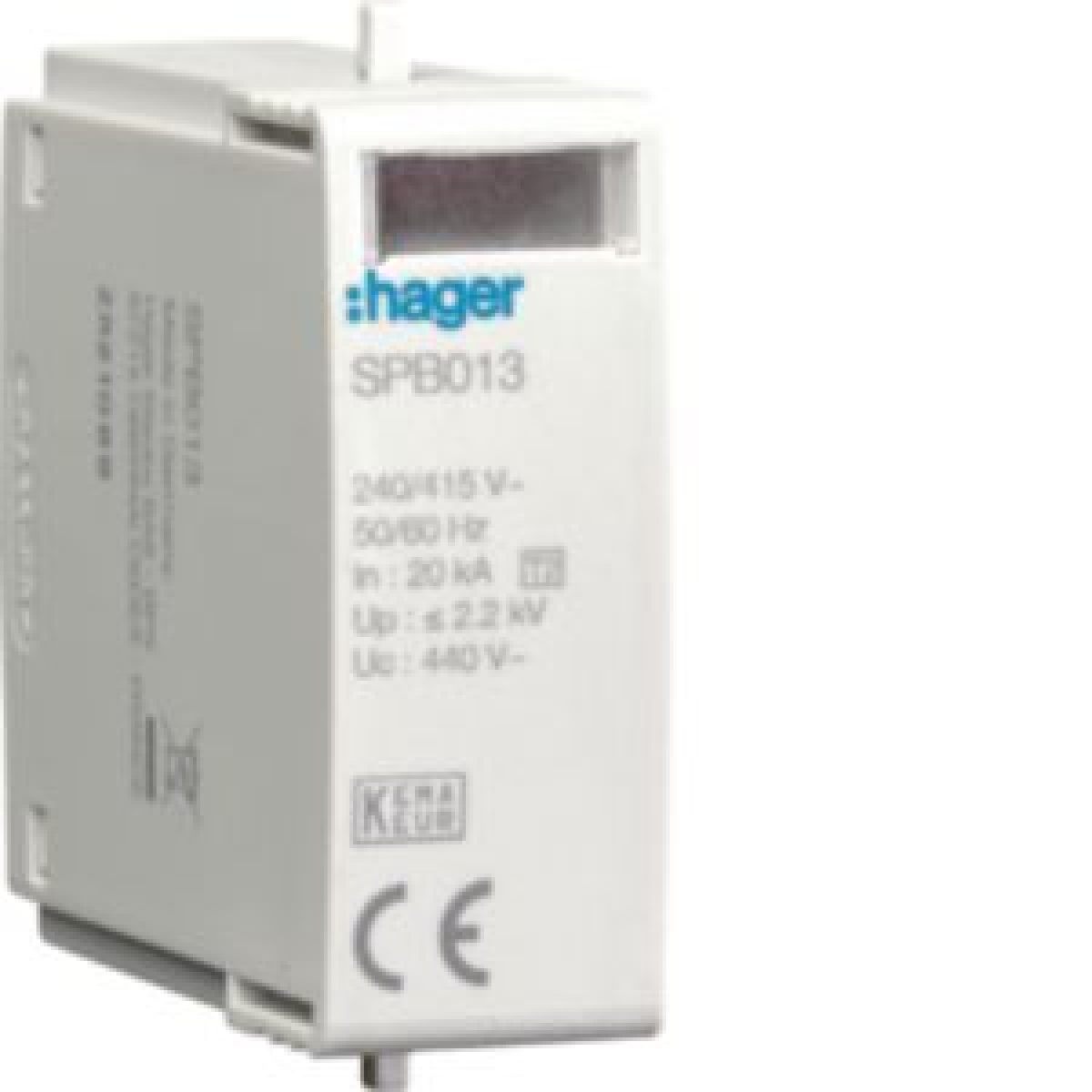

Cart recarga 40kA T2 IT 440V
Surge Arresters
Cart recarga 40kA T2 IT 440V
Manufacturer Ref:
SPB013
Nortécnica Ref:
EAN:
3250615515193
Description
Technical Information
Attributes
Mounting method
On basic element
With remote signalling contact
-
Number of conductors without earthing
-
Construction size
1 modular spacing
Voltage protection level
1.35
Max. continuous voltage AC
440
Nominal discharge surge current 820
20
EF004220
400
EF004221
415
Category type 2
Yes
Voltage protection level L-N
1.35
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection IP
IP20
Max. PV-voltage
0
Voltage protection level N-PE
1.5
Integrated backup fuse
No
Max. conductor cross section solid solid, stranded
-
Max. conductor cross section flexible fine-strand
-
System configuration DC
No
System configuration IT
Yes
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
Yes
System configuration other
No
System configuration TN-C-S
No
Max. discharge surge current 820
40
Short-circuit breaking capacity Isccr
25
Max. overcurrent protection device, parallel connection fuse
-
Max. overcurrent protection device, series connection fuse
-
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG
125
Leakage-current free
No
Brands
Hager Sistemas Eléctricos Modulares SA
