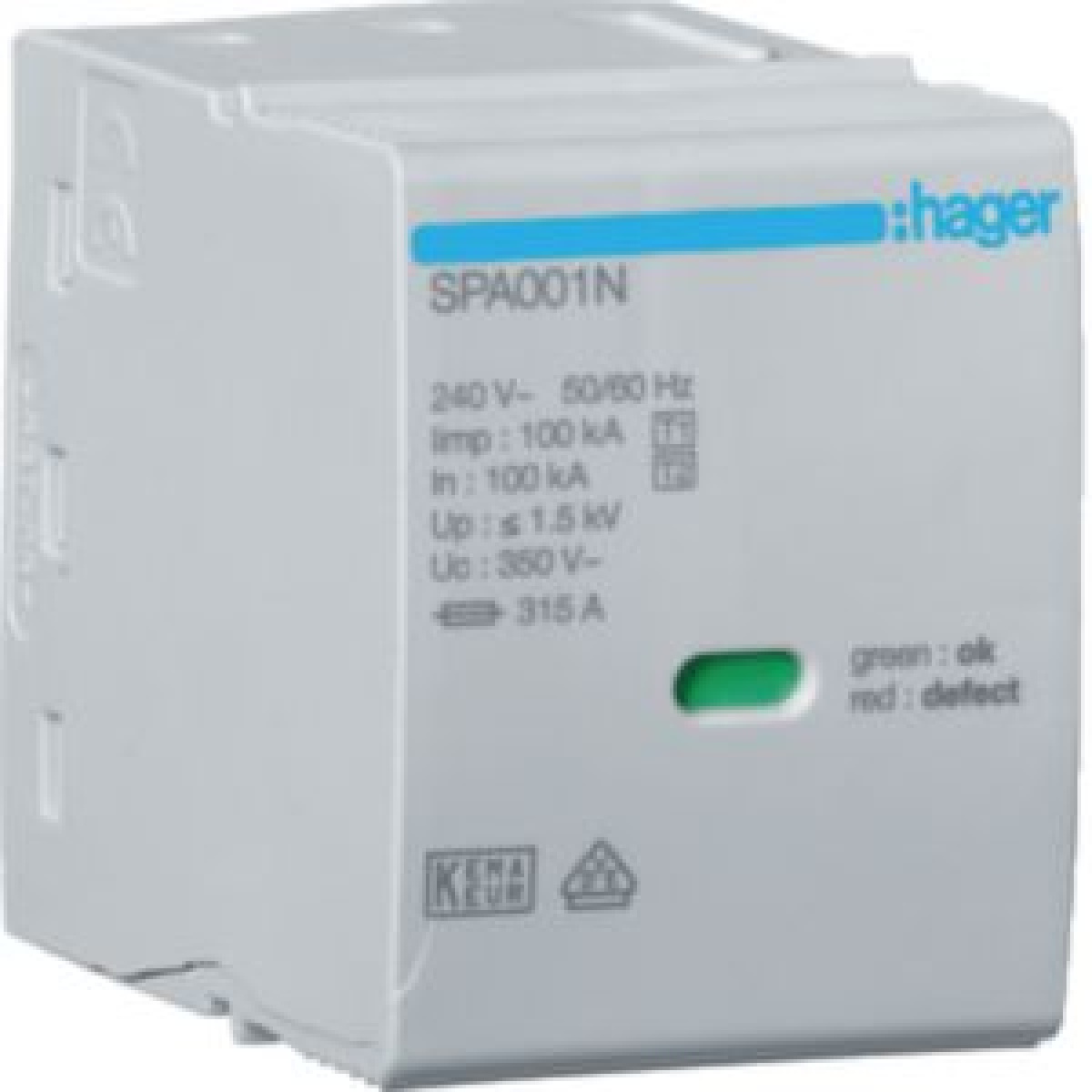

Cart recarga NPE 350V 100kA 15kV
Surge Arresters
Cart recarga NPE 350V 100kA 15kV
Manufacturer Ref:
SPA001N
Nortécnica Ref:
EAN:
3250615514813
Description
Technical Information
Attributes
Mounting method
DIN rail top hat rail 35 mm
Lightning impulse current 10350 µs
100
Number of poles
1
Construction size
2 modular spacing
Voltage protection level
1.5
Remote signalling
-
Follow current extinguishing capability
25
Max. continuous voltage AC
350
EF004220
240
EF004221
-
Test class
Type 1 2
Voltage protection level L-N
-
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection IP
IP20
Max. PV-voltage
-
Voltage protection level N-PE
1.5
Integrated backup fuse
No
Max. conductor cross section solid solid, stranded
-
Max. conductor cross section flexible fine-strand
-
Voltage protection level DC - DC-
-
Voltage protection level DCDC- - PE
-
Specific energy WR
2500
Energy-coordinated protection effect with regard to the terminal equipment
-
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
Yes
System configuration other
No
System configuration TN-C-S
No
Voltage protection level L-PE
-
Max. overcurrent protection device, parallel connection fuse
-
Max. overcurrent protection device, series connection fuse
-
Voltage switching spark gap technology
-
Overcurrent protected voltage tapping
-
Brands
Hager Sistemas Eléctricos Modulares SA
