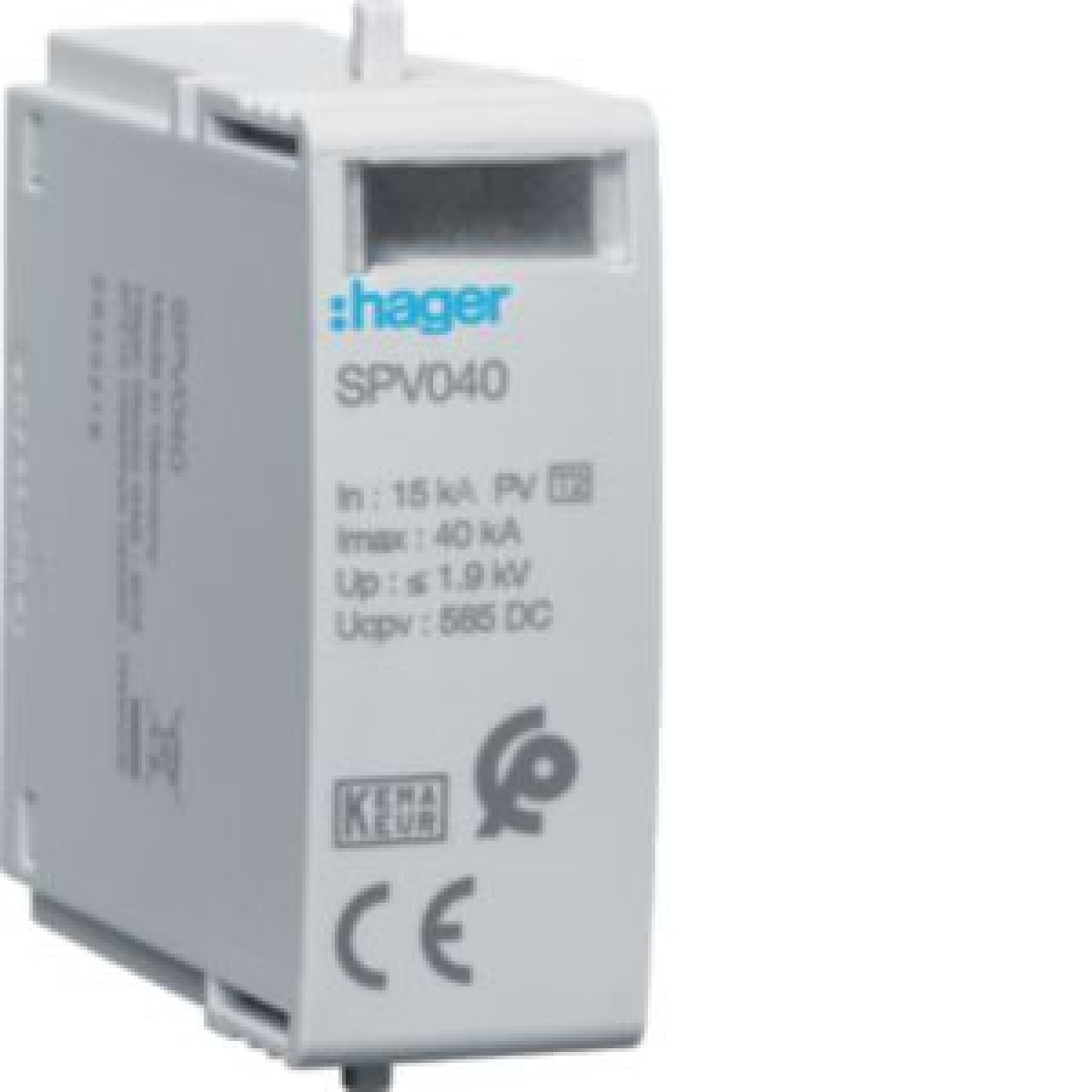

Cart recarga T2 1P FV para SPV340
Surge Arresters
Cart recarga T2 1P FV para SPV340
Manufacturer Ref:
SPV040
Nortécnica Ref:
EAN:
3250615514950
Description
Technical Information
Attributes
Mounting method
On basic element
With remote signalling contact
No
Number of conductors without earthing
-
Construction size
1 modular spacing
Voltage protection level
1.9
Max. continuous voltage AC
585
Nominal discharge surge current 820
15
EF004220
1000
EF004221
1000
Category type 2
Yes
Voltage protection level L-N
1.9
Signalling at the device
Optical
Max. continuous voltage DC
585
Degree of protection IP
IP20
Max. PV-voltage
0
Voltage protection level N-PE
1.9
Integrated backup fuse
No
Max. conductor cross section solid solid, stranded
35
Max. conductor cross section flexible fine-strand
25
System configuration DC
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
System configuration TN-C-S
No
Max. discharge surge current 820
40
Short-circuit breaking capacity Isccr
2
Max. overcurrent protection device, parallel connection fuse
-
Max. overcurrent protection device, series connection fuse
-
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG
-
Leakage-current free
No
Brands
Hager Sistemas Eléctricos Modulares SA
