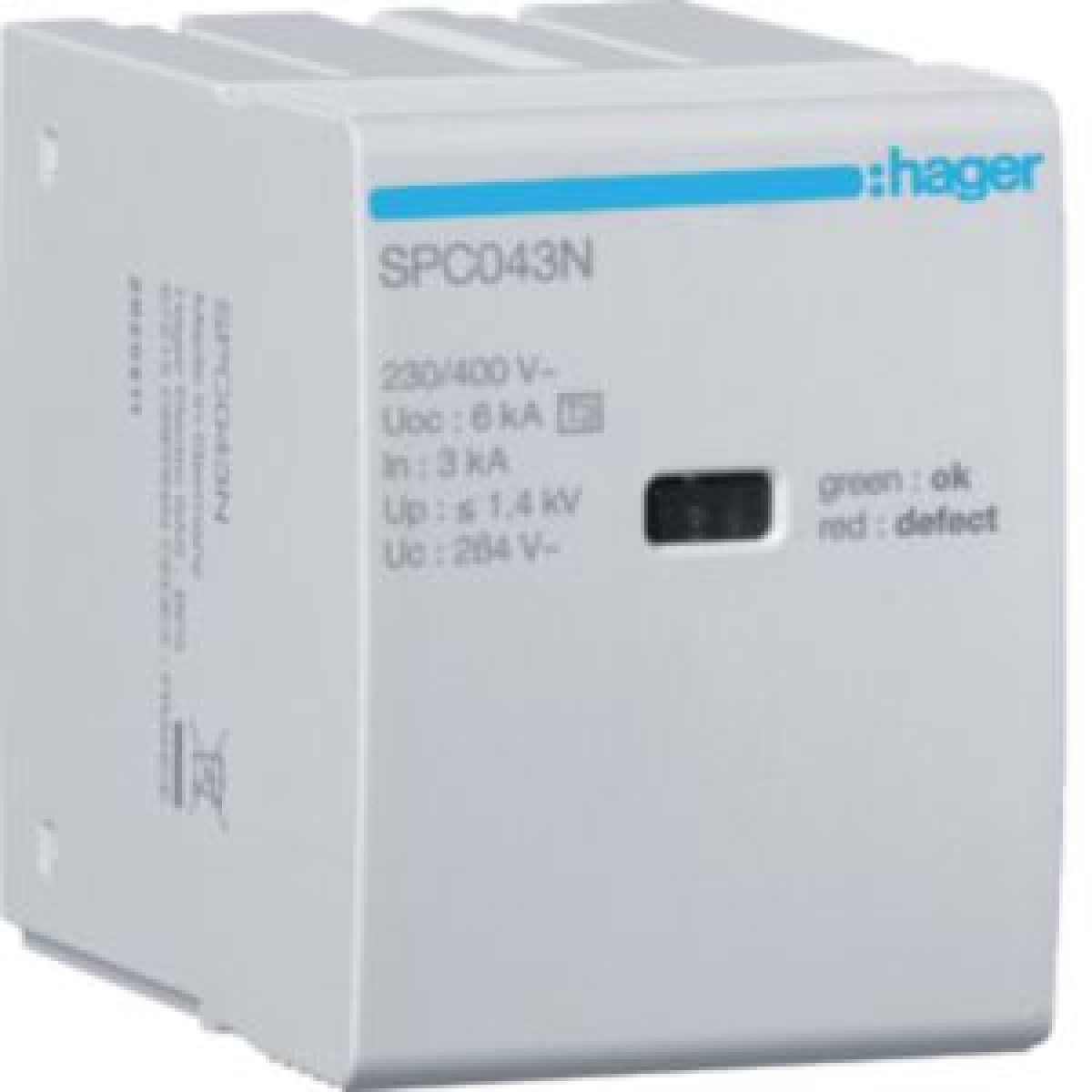

Cart recarga T3 NPE Uc 264V In 3kA
Surge Arresters
Cart recarga T3 NPE Uc 264V In 3kA
Manufacturer Ref:
SPC043N
Nortécnica Ref:
EAN:
3250615514929
Description
Technical Information
Attributes
Mounting method
On basic element
Lightning impulse current 10350 µs
-
With remote signalling contact
No
Number of conductors without earthing
-
Construction size
2 modular spacing
Voltage protection level
-
Suitable for outdoor use
No
Exhausting
-
Follow current extinguishing capability
0.1
Max. continuous voltage AC
264
Nominal discharge surge current 820
3
EF004220
230
EF004221
-
Category type 1
No
Voltage protection level L-N
1.4
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection IP
IP20
Voltage protection level N-PE
1.5
Integrated backup fuse
-
Max. conductor cross section solid solid, stranded
-
Max. conductor cross section flexible fine-strand
-
Voltage protection level DC - DC-
-
Voltage protection level DCDC- - PE
-
Specific energy WR
-
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
System configuration TN-C-S
No
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
