Surge Arresters

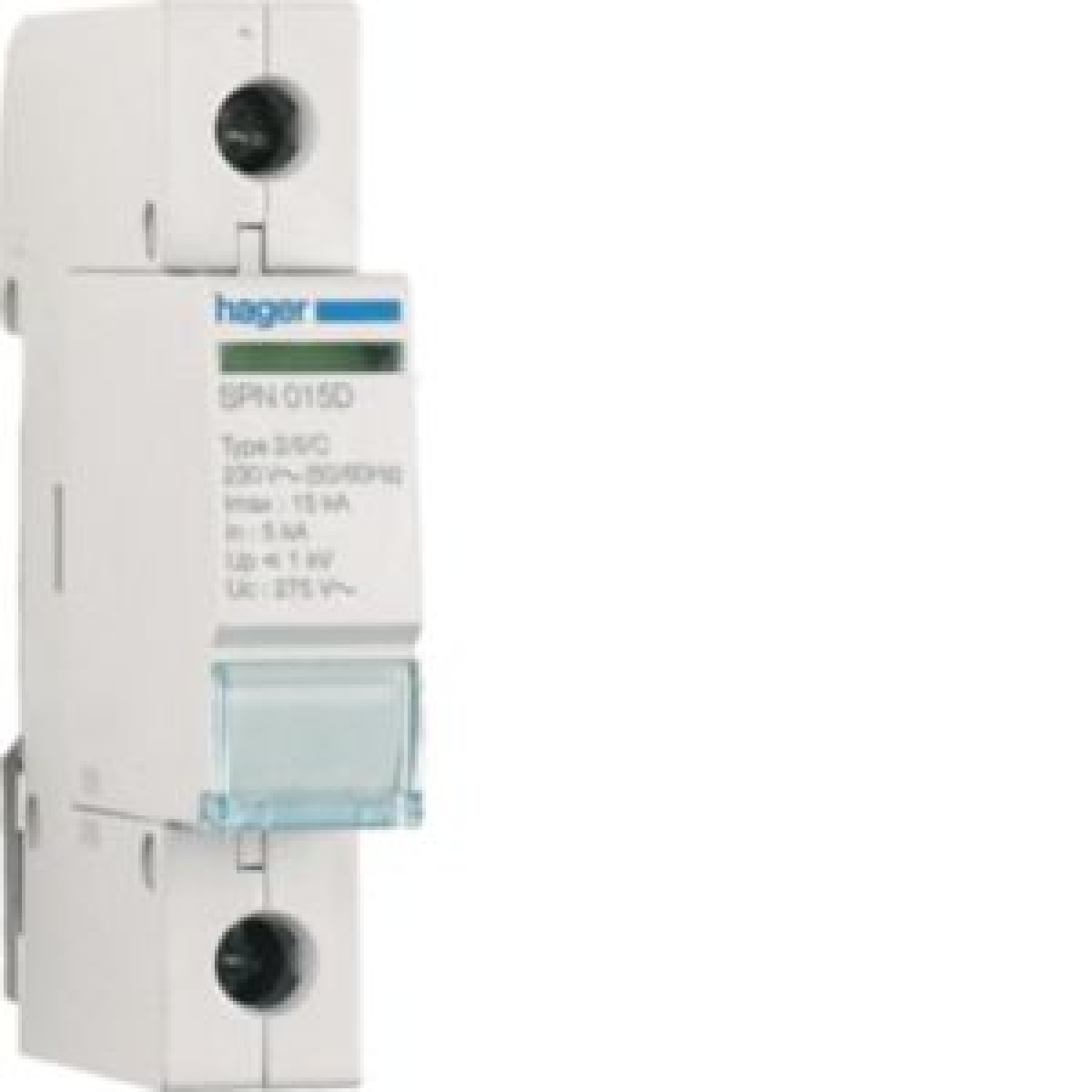

Cartrecarga 15kA pSPN215415D

Manufacturer Ref: SPN015D

Nortécnica Ref: 71SPN015D

EAN: 3250615660183

Login to see prices and stocks

Description

Cartrecarga 15kA pSPN215415D

Technical Information

Attributes

Mounting method

DIN rail top hat rail 35 mm

With remote signalling contact

-

Number of conductors without earthing

-

Construction size

1 modular spacing

Voltage protection level

1

Tensão máxima contínua AC

275

Corrente de descarga nominal 820

5

Tensão nominal CA

230

Tensão nominal DC

-

Category type 2

Yes

Nível de proteção L-N

-

Signalling at the device

Optical

Máxima tensão DC contínua

-

Degree of protection IP

IP20

Max. PV-voltage

0

Voltage protection level N-PE

-

Integrated backup fuse

-

Max. conductor cross section solid solid, stranded

-

Max. conductor cross section flexible fine-strand

-

System configuration DC

-

System configuration IT

-

System configuration TN

-

System configuration TN-C

-

System configuration TN-S

-

System configuration TT

-

System configuration other

-

System configuration TN-C-S

-

Max. discharge surge current 820

15

Short-circuit breaking capacity Isccr

-

Max. overcurrent protection device, parallel connection fuse

-

Max. overcurrent protection device, series connection fuse

-

Integrated short-circuit protection

-

Integrated short-circuit protection selective to fuse gG

-

Leakage-current free

-

Brands

Hager Sistemas Eléctricos Modulares SA
