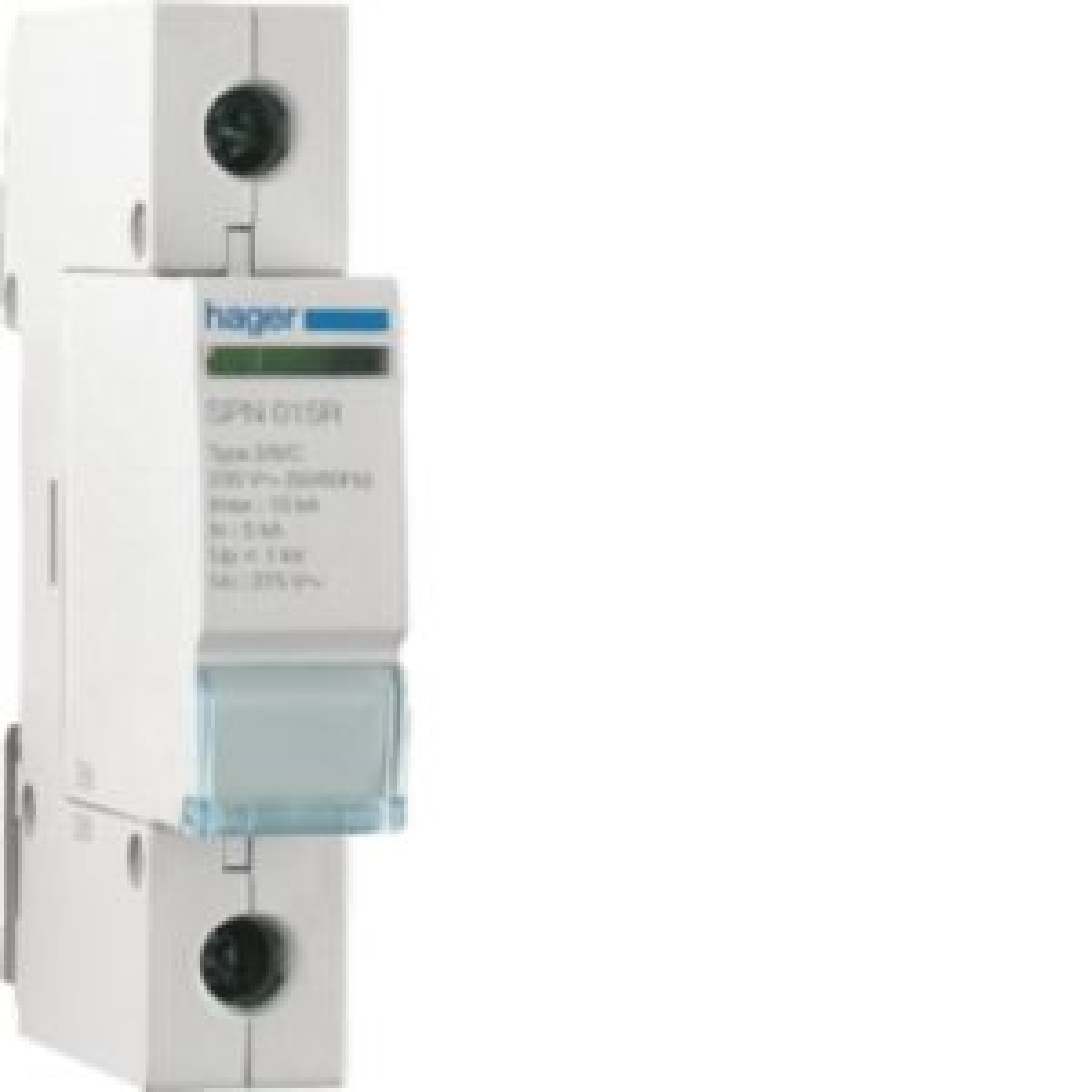

Cartrecarga 15kA pSPN215R415R
Surge Arresters
Cartrecarga 15kA pSPN215R415R
Manufacturer Ref:
SPN015R
Nortécnica Ref:
71SPN015R
EAN:
3250615660299
Description
Technical Information
Attributes
Mounting method
DIN rail top hat rail 35 mm
With remote signalling contact
-
Number of conductors without earthing
-
Construction size
1 modular spacing
Voltage protection level
1
Tensão máxima contínua AC
275
Corrente de descarga nominal 820
5
Tensão nominal CA
275
Tensão nominal DC
-
Category type 2
Yes
Nível de proteção L-N
-
Signalling at the device
Optical
Máxima tensão DC contínua
-
Degree of protection IP
IP20
Max. PV-voltage
0
Voltage protection level N-PE
-
Integrated backup fuse
-
Max. conductor cross section solid solid, stranded
-
Max. conductor cross section flexible fine-strand
-
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
Yes
System configuration other
No
System configuration TN-C-S
No
Max. discharge surge current 820
15
Short-circuit breaking capacity Isccr
-
Max. overcurrent protection device, parallel connection fuse
-
Max. overcurrent protection device, series connection fuse
-
Integrated short-circuit protection
-
Integrated short-circuit protection selective to fuse gG
-
Leakage-current free
-
Brands
Hager Sistemas Eléctricos Modulares SA
