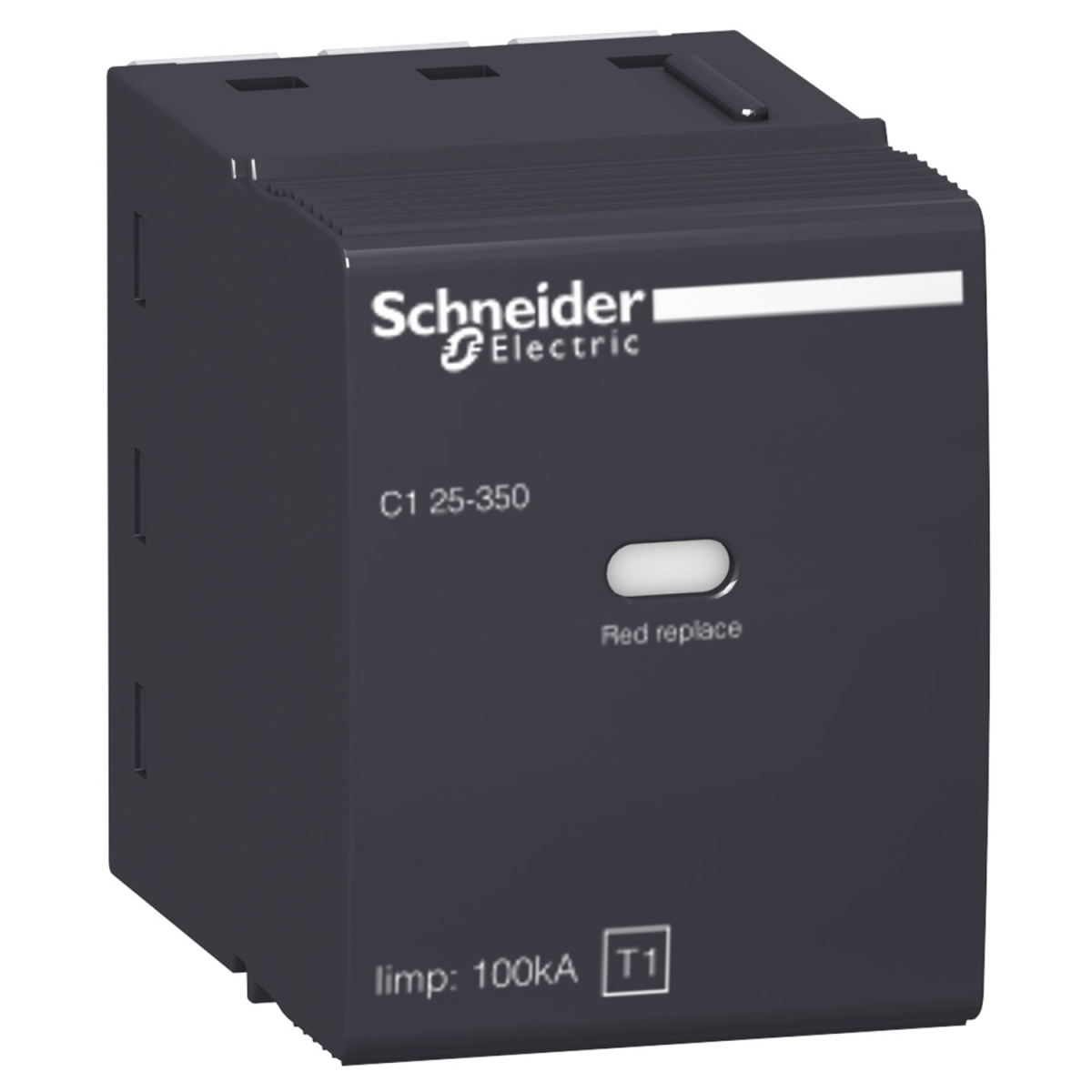

Cartucho PRD1 25R MASTER - NEUTRO
Surge Arresters
Cartucho PRD1 25R MASTER - NEUTRO
Manufacturer Ref:
16317
Nortécnica Ref:
EAN:
3606480060380
Description
Technical Information
Attributes
Mounting method
On basic element
With remote signalling contact
No
Number of conductors without earthing
-
Construction size
Other
Voltage protection level
1.5
Tensão máxima contínua AC
350
Corrente de descarga nominal 820
20
Tensão nominal CA
230
Tensão nominal DC
-
Category type 2
No
Nível de proteção L-N
-
Signalling at the device
Optical
Máxima tensão DC contínua
-
Degree of protection IP
IP20
Max. PV-voltage
-
Voltage protection level N-PE
-
Integrated backup fuse
No
Max. conductor cross section solid solid, stranded
-
Max. conductor cross section flexible fine-strand
-
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
Yes
System configuration other
No
System configuration TN-C-S
No
Max. discharge surge current 820
-
Short-circuit breaking capacity Isccr
-
Max. overcurrent protection device, parallel connection fuse
-
Max. overcurrent protection device, series connection fuse
-
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG
-
Leakage-current free
No
Brands
Schneider
