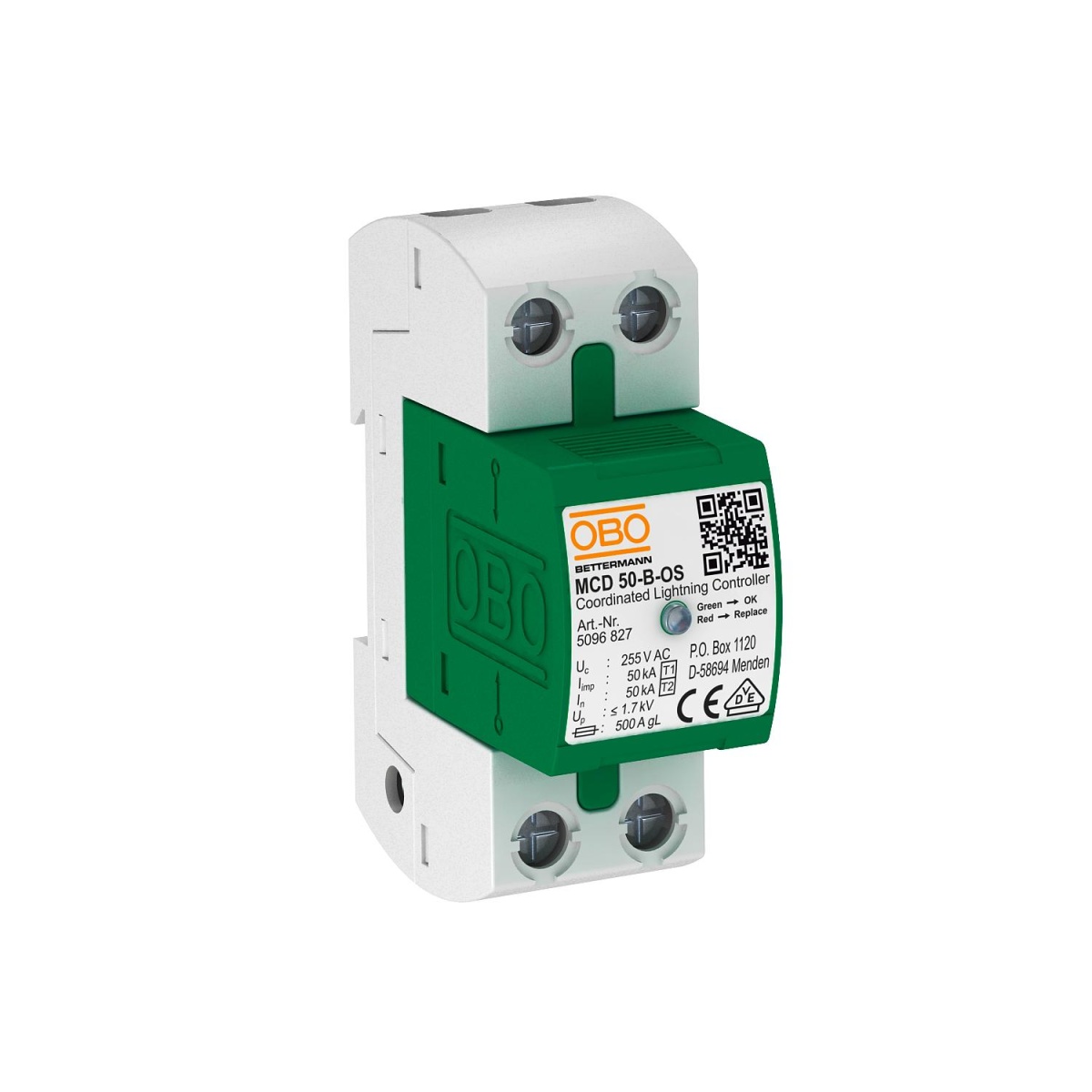

Descarregador combinado com sinalização visual 255V
Surge Arresters
Descarregador combinado com sinalização visual 255V
Manufacturer Ref:
5096852
Nortécnica Ref:
255096852
EAN:
4012195051466
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
Lightning impulse current 10350 µs
50
With remote signalling contact
-
Number of conductors without earthing
-
Construction size
2 modular spacing
Voltage protection level
1.7
Suitable for outdoor use
-
Exhausting
No
Follow current extinguishing capability
-
Max. continuous voltage AC
255
Nominal discharge surge current 820
50
EF004220
230
EF004221
-
Category type 1
Yes
Voltage protection level L-N
1.7
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection IP
IP20
Voltage protection level N-PE
-
Integrated backup fuse
-
Max. conductor cross section solid solid, stranded
50
Max. conductor cross section flexible fine-strand
-
Voltage protection level DC - DC-
-
Voltage protection level DCDC- - PE
-
Specific energy WR
-
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
Yes
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
System configuration TN-C-S
Yes
