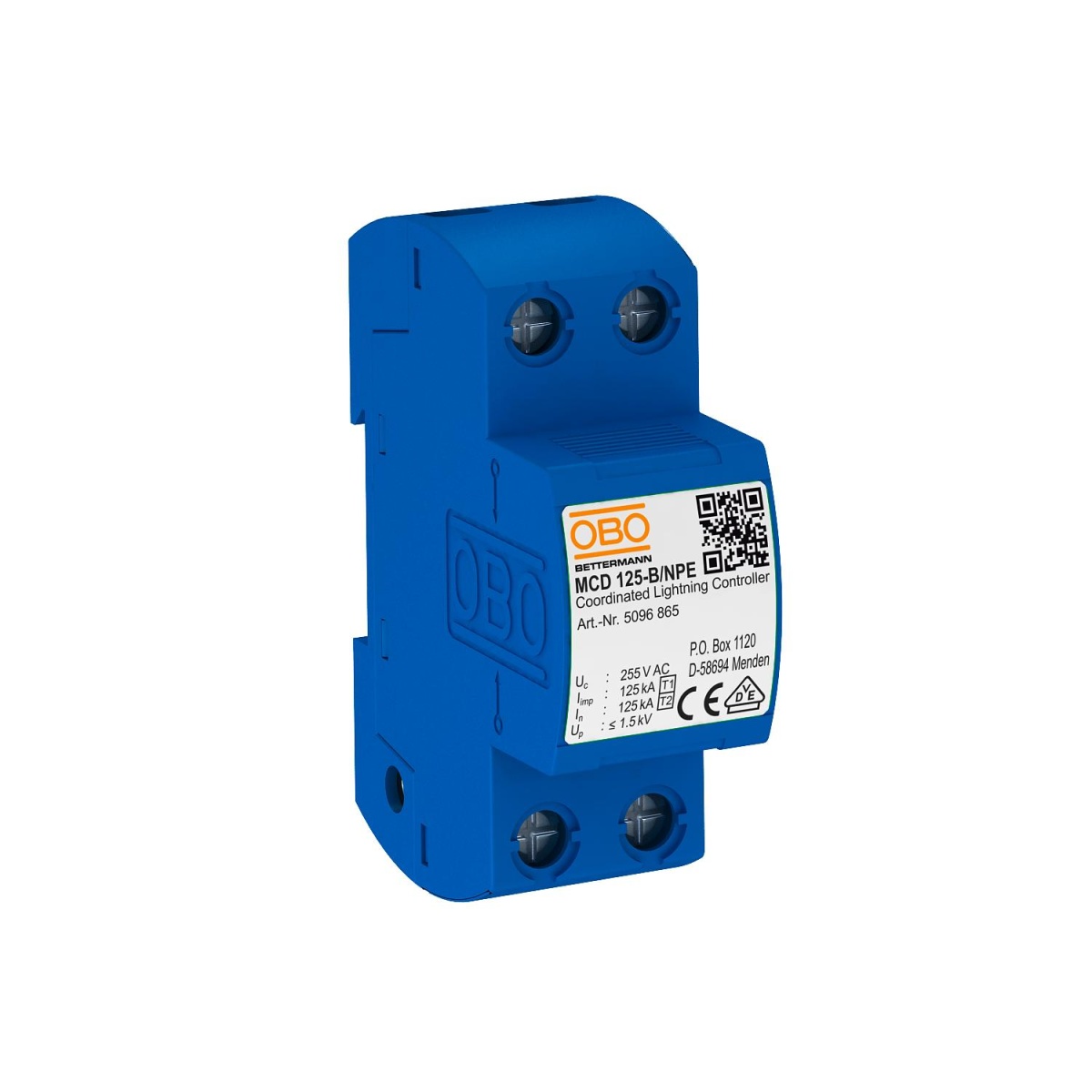

Descarregador combinado para N contra PE 255V
Surge Arresters
Descarregador combinado para N contra PE 255V
Manufacturer Ref:
5096865
Nortécnica Ref:
255096865
EAN:
4012195541394
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
Lightning impulse current 10350 µs
125
With remote signalling contact
-
Number of conductors without earthing
-
Construction size
2 modular spacing
Voltage protection level
-
Suitable for outdoor use
-
Exhausting
No
Follow current extinguishing capability
0.1
Tensão máxima contínua AC
255
Corrente de descarga nominal 820
125
Tensão nominal CA
230
Tensão nominal DC
-
Category type 1
Yes
Nível de proteção L-N
-
Signalling at the device
None
Máxima tensão DC contínua
-
Degree of protection IP
IP20
Voltage protection level N-PE
-
Integrated backup fuse
-
Max. conductor cross section solid solid, stranded
50
Max. conductor cross section flexible fine-strand
-
Voltage protection level DC - DC-
-
Voltage protection level DCDC- - PE
-
Specific energy WR
-
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
System configuration TN-C-S
Yes
Brands
OBO
