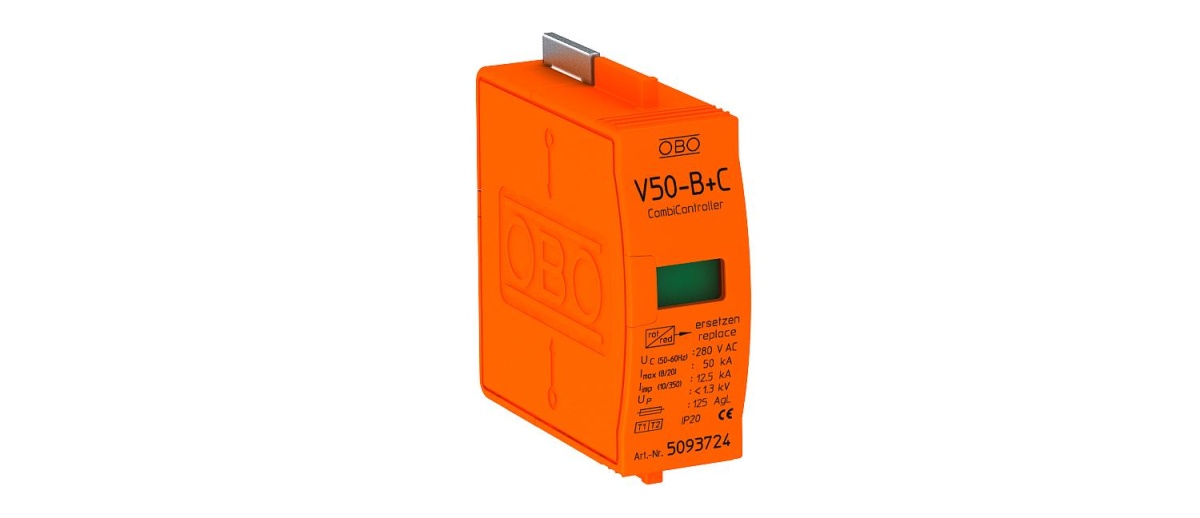

Descarregador combinado V50 Módulo de substituição 280V
Surge Arresters
Descarregador combinado V50 Módulo de substituição 280V
Manufacturer Ref:
5093724
Nortécnica Ref:
255093724
EAN:
4012195361954
Description
Technical Information
Attributes
Mounting method
On basic element
Lightning impulse current 10350 µs
12.5
Número de polos
1
Construction size
1 modular spacing
Voltage protection level
1.3
Remote signalling
-
Follow current extinguishing capability
-
Tensão máxima contínua AC
280
Tensão nominal CA
230
Tensão nominal DC
-
Test class
-
Nível de proteção L-N
1.3
Signalling at the device
Optical
Máxima tensão DC contínua
350
Degree of protection IP
IP20
Max. PV-voltage
-
Voltage protection level N-PE
-
Integrated backup fuse
No
Max. conductor cross section solid solid, stranded
35
Max. conductor cross section flexible fine-strand
-
Voltage protection level DC - DC-
-
Voltage protection level DCDC- - PE
-
Specific energy WR
-
Energy-coordinated protection effect with regard to the terminal equipment
-
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
System configuration TN-C-S
No
Voltage protection level L-PE
-
Max. overcurrent protection device, parallel connection fuse
-
Max. overcurrent protection device, series connection fuse
-
Voltage switching spark gap technology
-
Overcurrent protected voltage tapping
-
Brands
OBO
