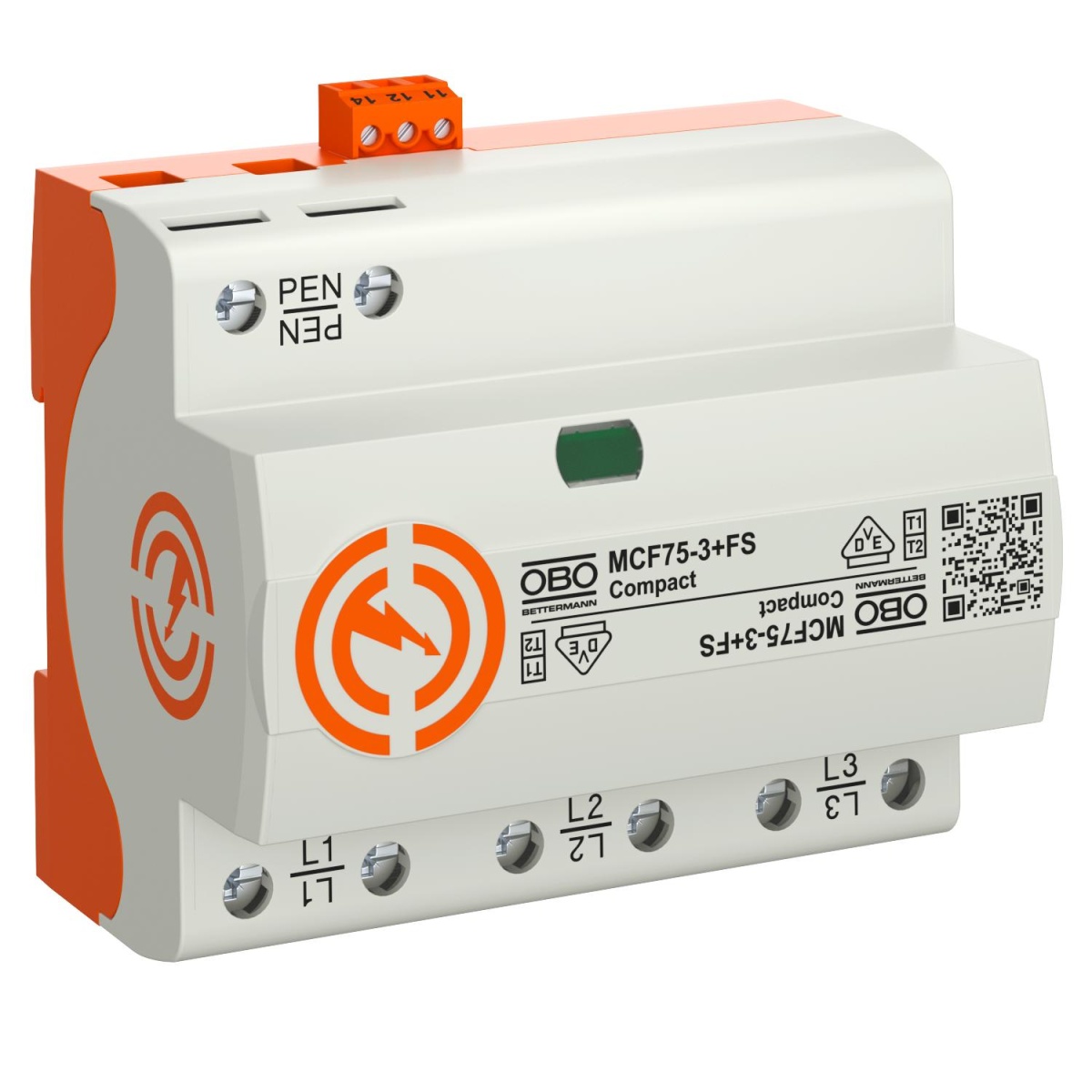

Descarregador Compact 3 polos com sinalização remota 255V
Surge Arresters
Descarregador Compact 3 polos com sinalização remota 255V
Manufacturer Ref:
5096981
Nortécnica Ref:
EAN:
4012196487325
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
Lightning impulse current 10350 µs
25
With remote signalling contact
-
Number of conductors without earthing
-
Construction size
6 modular spacing
Voltage protection level
1.5
Suitable for outdoor use
-
Exhausting
-
Follow current extinguishing capability
-
Max. continuous voltage AC
255
Nominal discharge surge current 820
35
EF004220
230
EF004221
-
Category type 1
-
Voltage protection level L-N
-
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection IP
IP20
Voltage protection level N-PE
-
Integrated backup fuse
-
Max. conductor cross section solid solid, stranded
35
Max. conductor cross section flexible fine-strand
25
Voltage protection level DC - DC-
-
Voltage protection level DCDC- - PE
-
Specific energy WR
-
System configuration DC
-
System configuration IT
-
System configuration TN
Yes
System configuration TN-C
Yes
System configuration TN-S
-
System configuration TT
-
System configuration other
-
System configuration TN-C-S
-
Brands
80686
Technical Sheet
