Descarregador de sobretensões com sinalização visual 255V
Surge Arresters

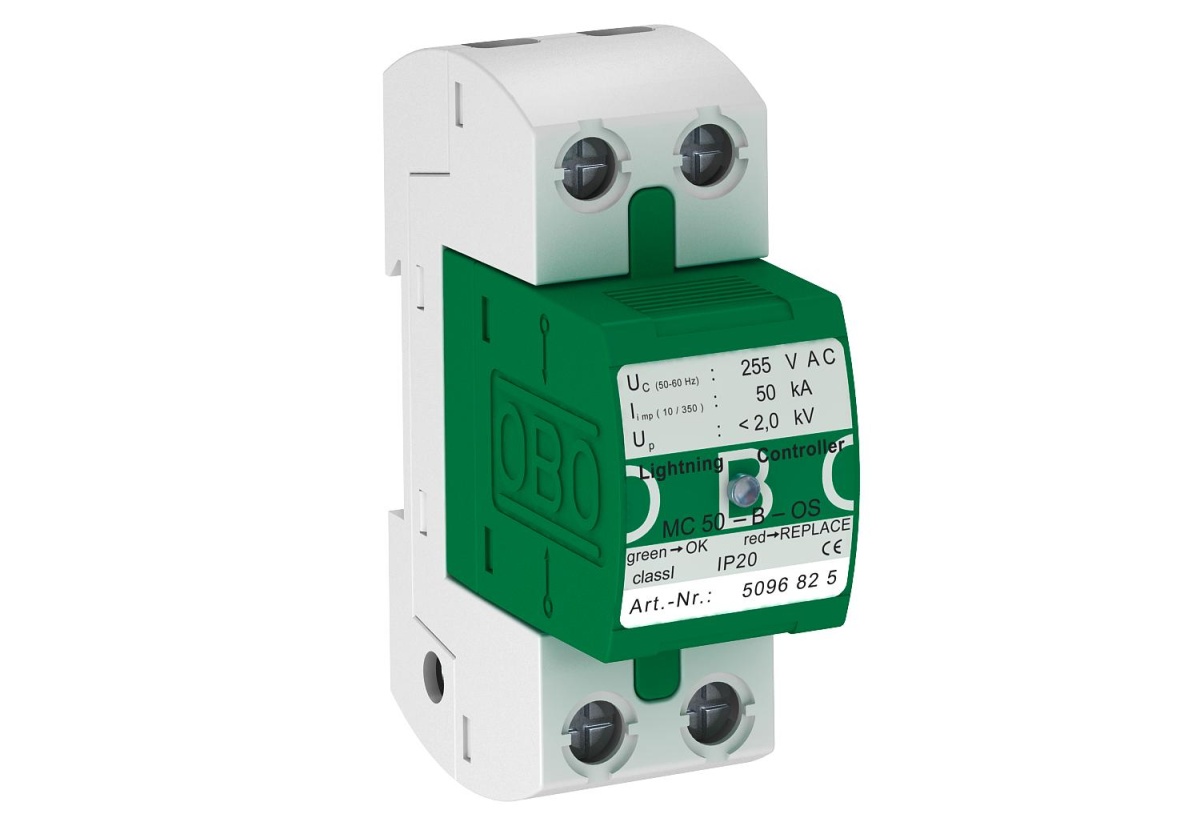

Descarregador de sobretensões com sinalização visual 255V
Manufacturer Ref:
5096851
Nortécnica Ref:
EAN:
4012195051411
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
Lightning impulse current 10350 µs
50
With remote signalling contact
-
Number of conductors without earthing
-
Construction size
2 modular spacing
Voltage protection level
2.0
Suitable for outdoor use
-
Exhausting
No
Follow current extinguishing capability
25
Tensão máxima contínua AC
255
Corrente de descarga nominal 820
50
Tensão nominal CA
230
Tensão nominal DC
-
Category type 1
Yes
Nível de proteção L-N
-
Signalling at the device
Optical
Máxima tensão DC contínua
-
Degree of protection IP
IP20
Voltage protection level N-PE
-
Integrated backup fuse
-
Max. conductor cross section solid solid, stranded
50
Max. conductor cross section flexible fine-strand
-
Voltage protection level DC - DC-
-
Voltage protection level DCDC- - PE
-
Specific energy WR
-
System configuration DC
-
System configuration IT
-
System configuration TN
-
System configuration TN-C
-
System configuration TN-S
-
System configuration TT
-
System configuration other
-
System configuration TN-C-S
-
Brands
OBO
Technical Sheet
