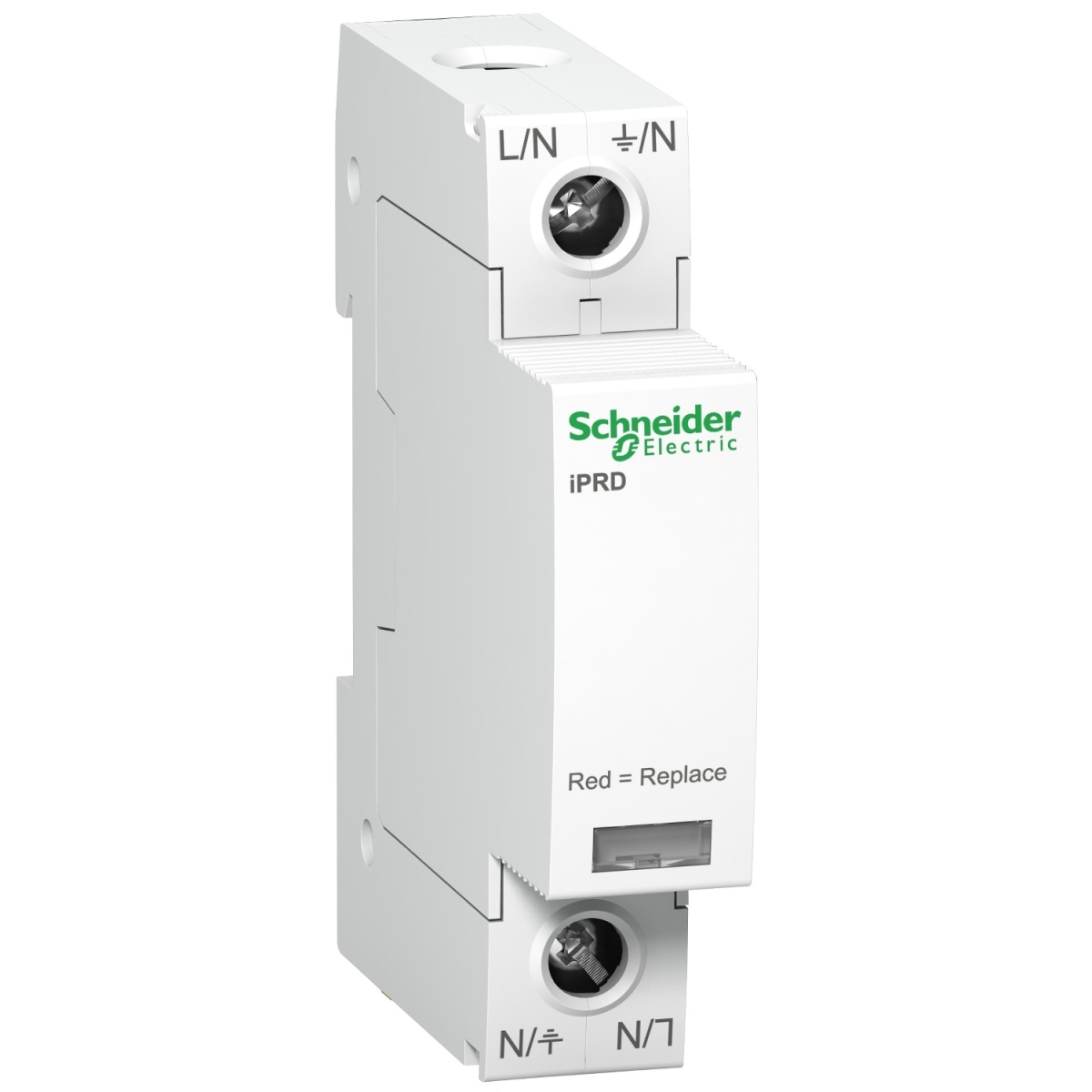

Descarregador de sobretensões iPRD 20 kA 350V 1P
Surge Arresters
Descarregador de sobretensões iPRD 20 kA 350V 1P
Manufacturer Ref:
A9L20100
Nortécnica Ref:
EAN:
3606480506505
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
With remote signalling contact
No
Number of conductors without earthing
1
Construction size
1 modular spacing
Voltage protection level
1.1
Tensão máxima contínua AC
350
Corrente de descarga nominal 820
5
Tensão nominal CA
230
Tensão nominal DC
-
Category type 2
Yes
Nível de proteção L-N
1.1
Signalling at the device
Optical
Máxima tensão DC contínua
-
Degree of protection IP
IP20
Max. PV-voltage
-
Voltage protection level N-PE
-
Integrated backup fuse
No
Max. conductor cross section solid solid, stranded
35
Max. conductor cross section flexible fine-strand
35
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
Yes
System configuration TN-S
No
System configuration TT
Yes
System configuration other
No
System configuration TN-C-S
No
Max. discharge surge current 820
20
Short-circuit breaking capacity Isccr
50
Max. overcurrent protection device, parallel connection fuse
40
Max. overcurrent protection device, series connection fuse
80
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG
-
Leakage-current free
No
Brands
Schneider
