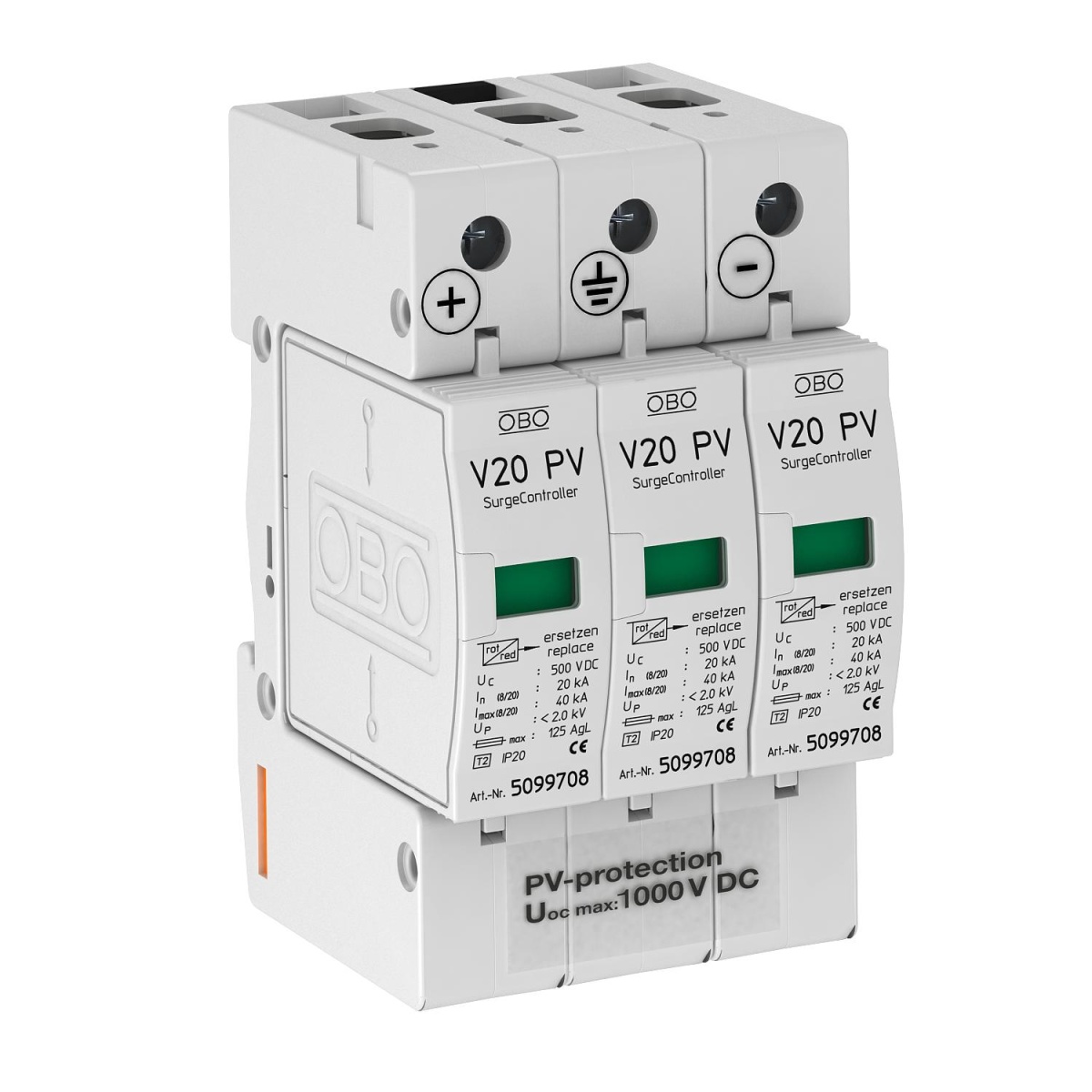

Descarregador sobretensões V20 3 polos para fotovoltaico 1000V DC
Surge Arresters
Descarregador sobretensões V20 3 polos para fotovoltaico 1000V DC
Manufacturer Ref:
5094608
Nortécnica Ref:
255094608
EAN:
4012195478621
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
With remote signalling contact
-
Number of conductors without earthing
-
Construction size
3 modular spacing
Voltage protection level
4.0
Tensão máxima contínua AC
-
Corrente de descarga nominal 820
20
Tensão nominal CA
-
Tensão nominal DC
-
Category type 2
Yes
Nível de proteção L-N
-
Signalling at the device
Optical
Máxima tensão DC contínua
1000
Degree of protection IP
IP20
Max. PV-voltage
-
Voltage protection level N-PE
-
Integrated backup fuse
-
Max. conductor cross section solid solid, stranded
35
Max. conductor cross section flexible fine-strand
-
System configuration DC
Yes
System configuration IT
-
System configuration TN
-
System configuration TN-C
-
System configuration TN-S
-
System configuration TT
-
System configuration other
-
System configuration TN-C-S
-
Max. discharge surge current 820
40
Short-circuit breaking capacity Isccr
-
Max. overcurrent protection device, parallel connection fuse
-
Max. overcurrent protection device, series connection fuse
-
Integrated short-circuit protection
-
Integrated short-circuit protection selective to fuse gG
-
Leakage-current free
-
Brands
OBO
