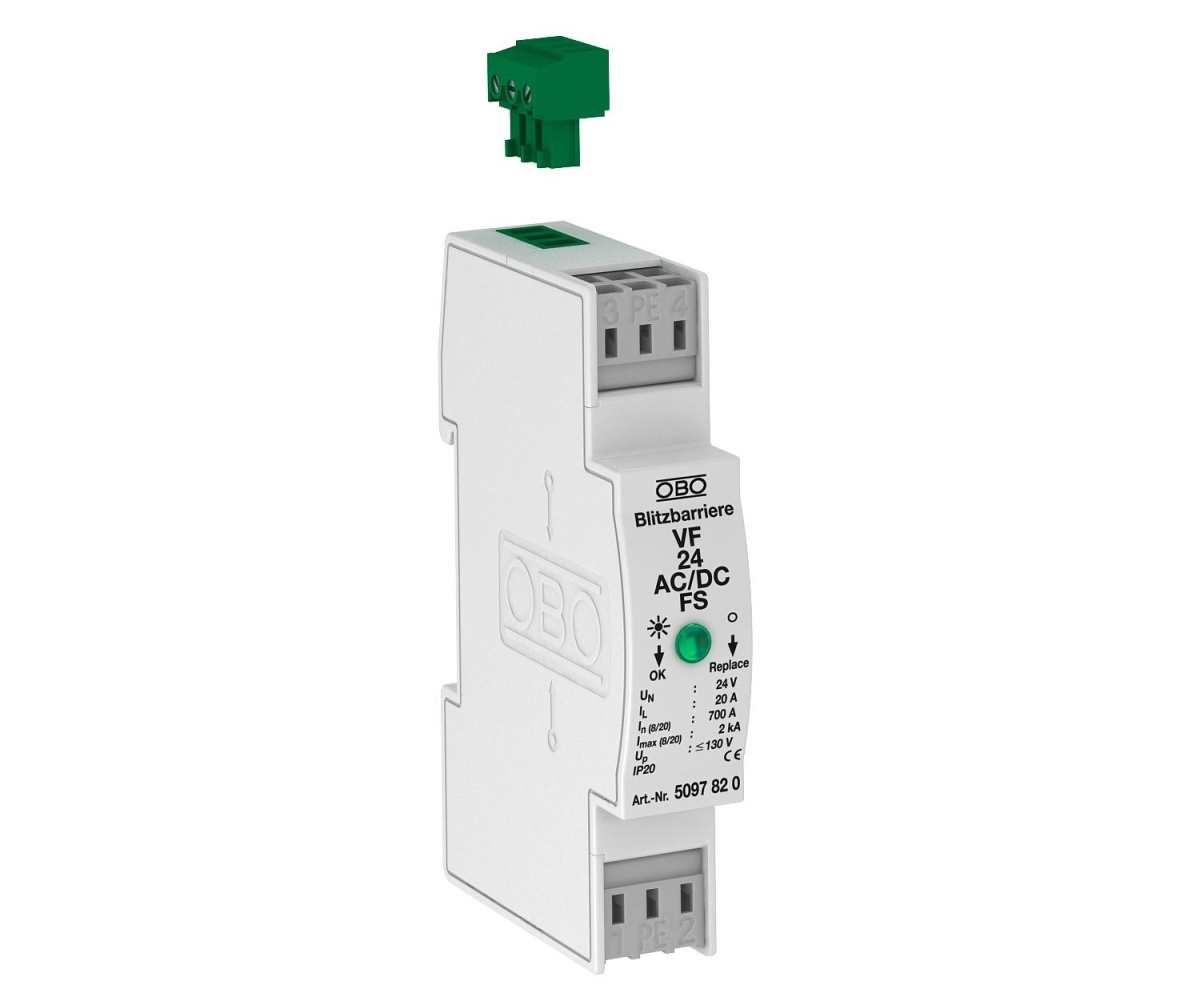

Dispositivo de proteção com sinalização remota 24V AC
Surge Arresters
Dispositivo de proteção com sinalização remota 24V AC
Manufacturer Ref:
5097820
Nortécnica Ref:
EAN:
4012195578185
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
With remote signalling contact
-
Number of poles
3
Voltage protection level
0.13
Max. continuous voltage AC
34
Total discharge current 820 LN-PE
-
Nominal discharge surge current 820 L-N
-
Nominal load current
-
EF004220
24
EF004221
-
Category type 3
Yes
Voltage protection level L-N
1000
Voltage protection level L-PEN-PE
-
Signalling at the device
Optical
Max. continuous voltage DC
46
Degree of protection IP
IP20
With interference suppressor filter
-
Max. conductor cross section solid solid, stranded
2.5
Max. conductor cross section flexible fine-strand
-
Total discharge current 820 L1L2L3N-PE
-
Max. overcurrent protection device, parallel connection fuse
-
Max. overcurrent protection device, series connection fuse
-
