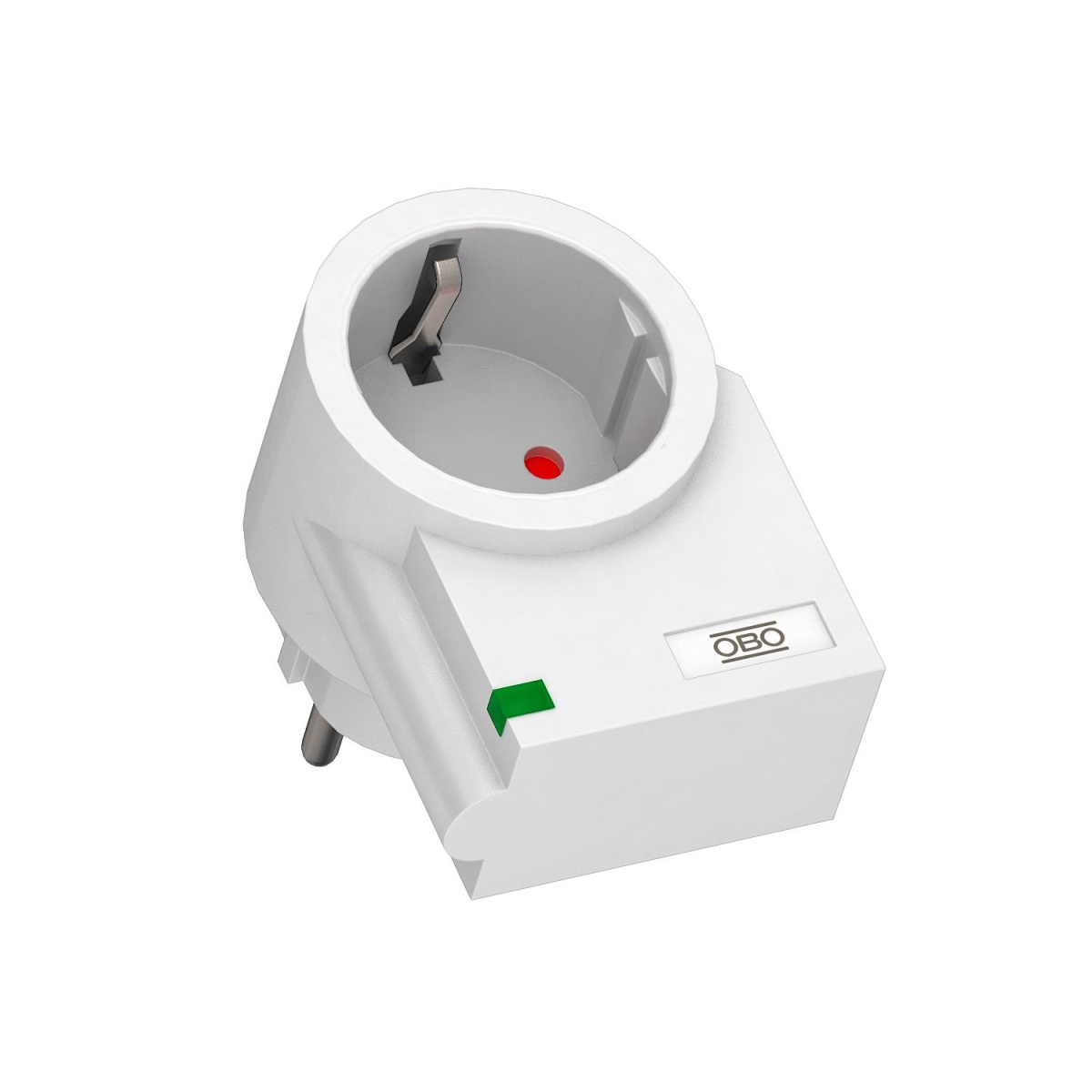

Proteção fina 230V branco puro RAL 9010
Surge Arresters
Proteção fina 230V branco puro RAL 9010
Manufacturer Ref:
5092800
Nortécnica Ref:
EAN:
4012195035053
Description
Technical Information
Attributes
Mounting method
Wall socket
With remote signalling contact
No
Number of poles
-
Voltage protection level
1.5
Max. continuous voltage AC
275
Total discharge current 820 LN-PE
-
Nominal discharge surge current 820 L-N
-
Nominal load current
16
EF004220
230
EF004221
-
Category type 3
Yes
Voltage protection level L-N
1.5
Voltage protection level L-PEN-PE
-
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection IP
IP20
With interference suppressor filter
-
Max. conductor cross section solid solid, stranded
-
Max. conductor cross section flexible fine-strand
-
Total discharge current 820 L1L2L3N-PE
-
Max. overcurrent protection device, parallel connection fuse
-
Max. overcurrent protection device, series connection fuse
-
Brands
80686
Technical Sheet
