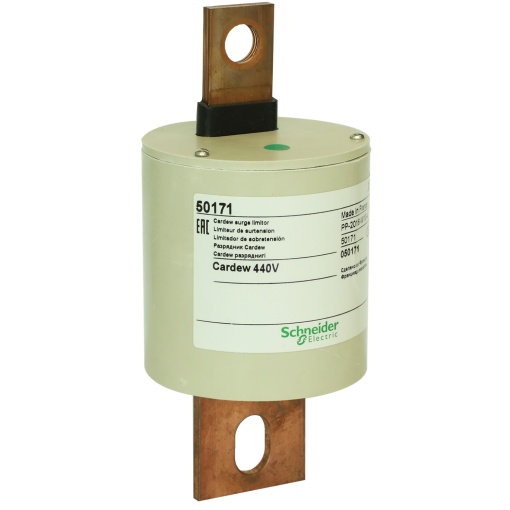

Vigilohm Cardew 440 VCA
Surge Arresters
Vigilohm Cardew 440 VCA
Manufacturer Ref:
50171
Nortécnica Ref:
51050171
EAN:
3303430501718
Description
Technical Information
Attributes
Mounting method
On basic element
With remote signalling contact
No
Number of conductors without earthing
1
Construction size
Other
Voltage protection level
1.1
Max. continuous voltage AC
660
Nominal discharge surge current 820
40
EF004220
440
EF004221
0
Category type 2
No
Voltage protection level L-N
0.66
Signalling at the device
Optical
Max. continuous voltage DC
0
Degree of protection IP
Other
Max. PV-voltage
0
Voltage protection level N-PE
0.38
Integrated backup fuse
No
Max. conductor cross section solid solid, stranded
150
Max. conductor cross section flexible fine-strand
150
System configuration DC
No
System configuration IT
Yes
System configuration TN
No
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
System configuration TN-C-S
No
Max. discharge surge current 820
40
Short-circuit breaking capacity Isccr
40
Max. overcurrent protection device, parallel connection fuse
0
Max. overcurrent protection device, series connection fuse
0
Integrated short-circuit protection
Yes
Integrated short-circuit protection selective to fuse gG
0
Leakage-current free
No
Brands
Schneider
