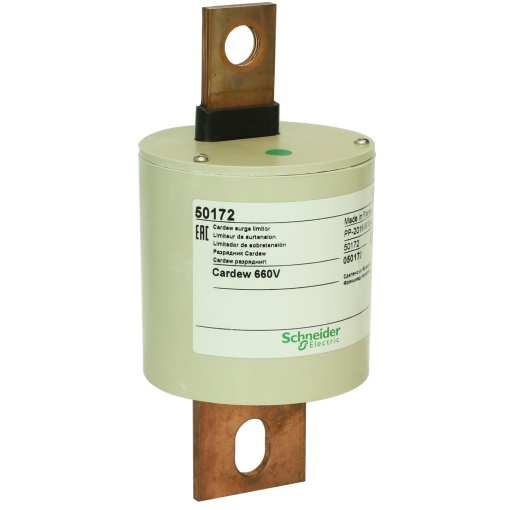

Vigilohm Cardew 660 VCA
Surge Arresters
Vigilohm Cardew 660 VCA
Manufacturer Ref:
50172
Nortécnica Ref:
EAN:
3303430501725
Description
Technical Information
Attributes
Mounting method
On basic element
With remote signalling contact
No
Number of conductors without earthing
1
Construction size
Other
Voltage protection level
1.6
Tensão máxima contínua AC
1000
Corrente de descarga nominal 820
40
Tensão nominal CA
660
Tensão nominal DC
0
Category type 2
No
Nível de proteção L-N
1
Signalling at the device
Optical
Máxima tensão DC contínua
0
Degree of protection IP
Other
Max. PV-voltage
0
Voltage protection level N-PE
0.66
Integrated backup fuse
No
Max. conductor cross section solid solid, stranded
150
Max. conductor cross section flexible fine-strand
150
System configuration DC
No
System configuration IT
Yes
System configuration TN
No
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
System configuration TN-C-S
No
Max. discharge surge current 820
40
Short-circuit breaking capacity Isccr
40
Max. overcurrent protection device, parallel connection fuse
0
Max. overcurrent protection device, series connection fuse
0
Integrated short-circuit protection
Yes
Integrated short-circuit protection selective to fuse gG
0
Leakage-current free
No
Brands
Schneider
