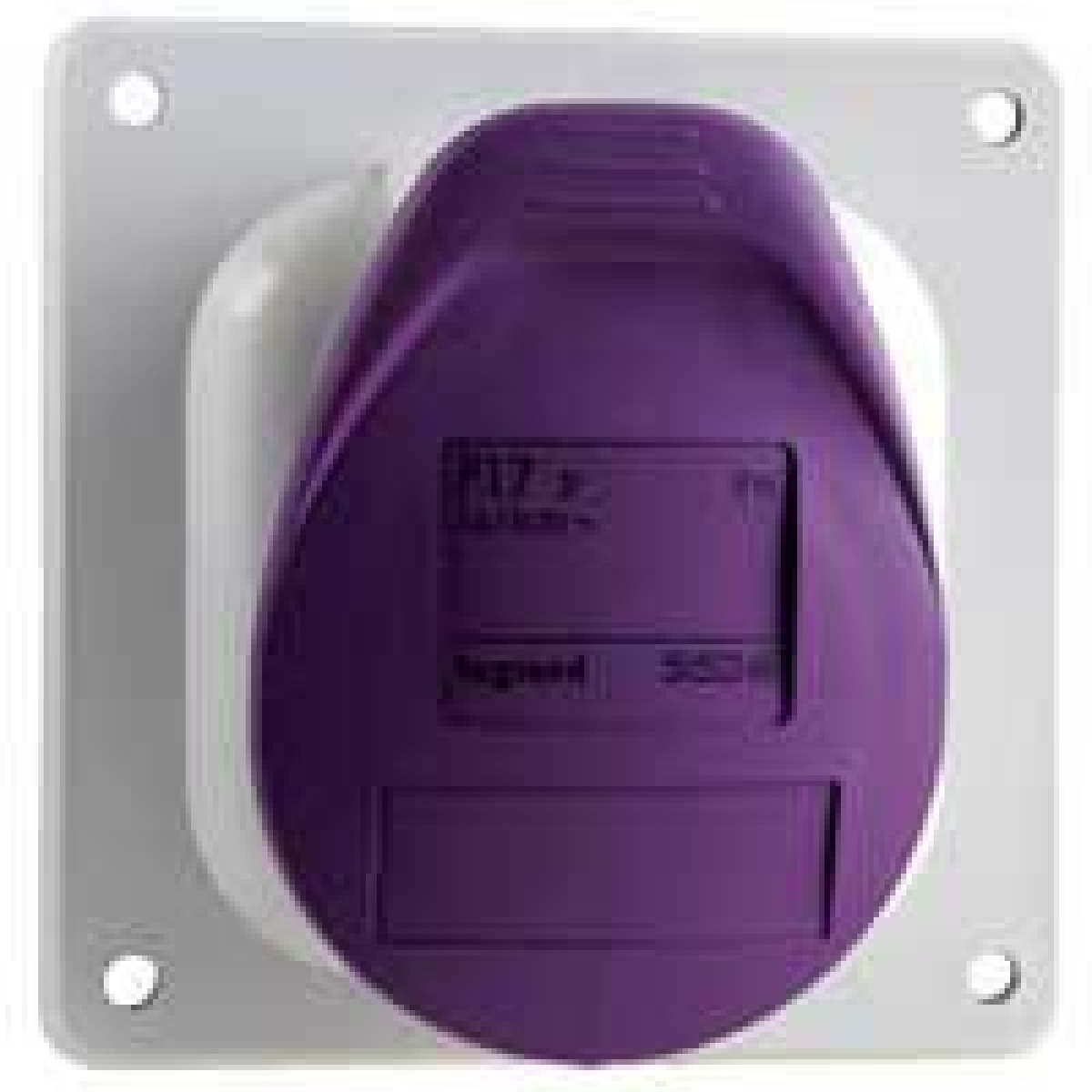

Tomadas para quadro P17 - 32 A - 2025 V- 2P - IP 44
CEE Plug and Socket
Tomadas para quadro P17 - 32 A - 2025 V- 2P - IP 44
Manufacturer Ref:
055295
Nortécnica Ref:
EAN:
3245060552954
Description
Technical Information
Attributes
RAL-number
-
Number of poles
2
Rated frequency
-
-
Material
Plastic
Surface coating contacts
-
IEC-amperage
32
Amperage according to ULCSA for UL-version
-
Connection system
Screwed terminal
Insert direction
Straight
Rated voltage
-
-
Contact material
-
Degree of protection IP
IP44
Military model
No
Clock hour position
12
Identification colour
Purple
Voltage according to EN 60309-2
20-25 V (50+60 Hz) violet
Drill hole distance vertical
70
Drill hole distance horizontal
70
Flange size vertical
84
Flange size horizontal
84
Brands
Legrand
Technical Sheet
