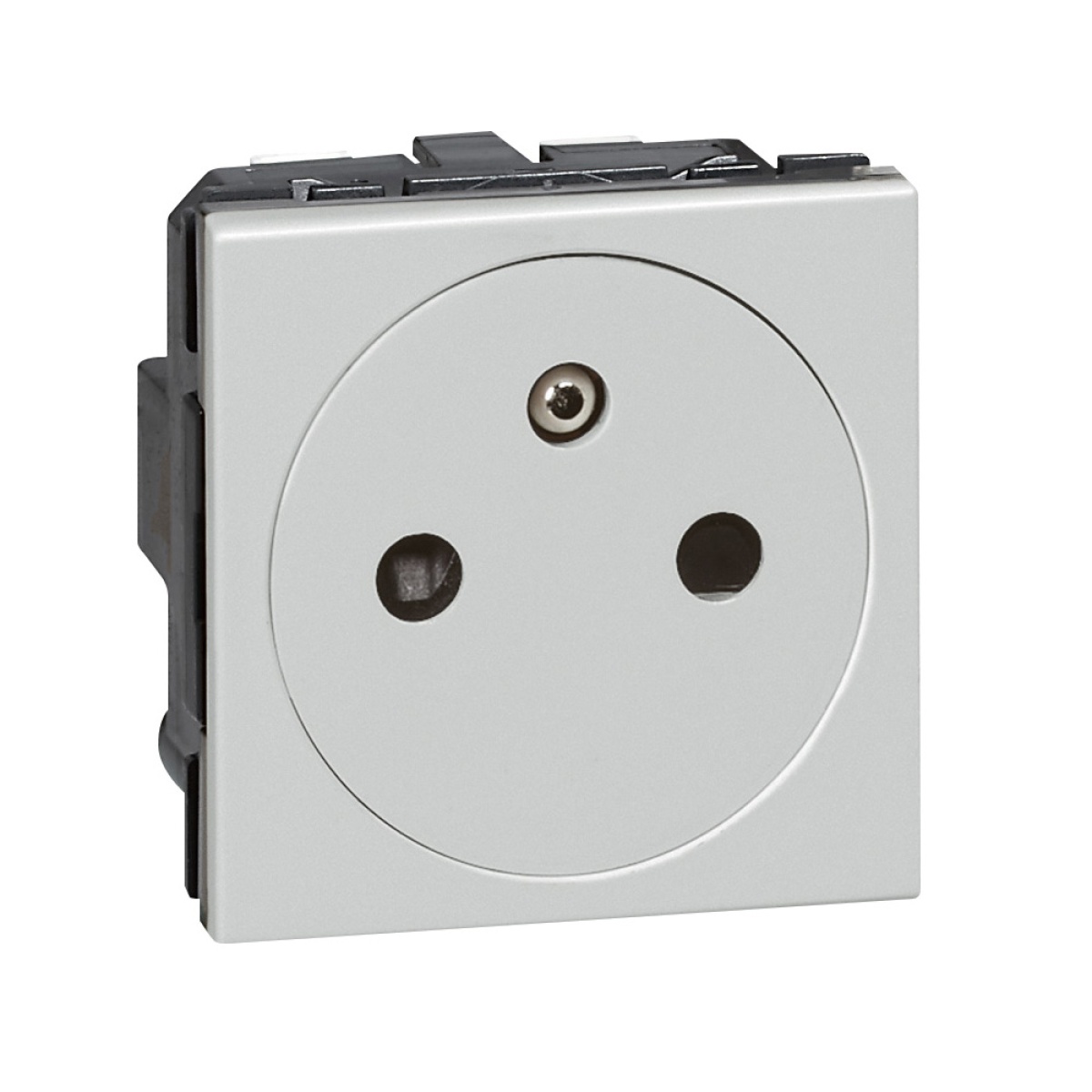

MOSAIC 2PT FB A FACE ALUMI
Sockets
MOSAIC 2PT FB A FACE ALUMI
Manufacturer Ref:
079342
Nortécnica Ref:
EAN:
3414970752086
Description
Technical Information
Attributes
Nominal current
16
Nominal voltage
250
Mounting method
Module frame
Colour
Aluminium
Model
Earthing pin
Halogen free
Yes
EF000074
1
Lockable
No
With hinged lid
No
Connection type
Push-in clamp
Surface protection
Lacquered
With signal lamp
No
Number of phases
1
With enhanced contact protection
Yes
Frequency
50
60
With onoff switch
No
Number of ports USB-A
0
Label spaceinformation surface
No
Eject-mechanism
No
Material quality
Thermoplastic
Rotated central insert
No
Overvoltage protection
-
Fault current protection
No
Special power supply
EV006426
Insulated mounting
No
Material
Plastic
Rated fault current
-
Type of fastening
Snap mounting (engagement)
Imprintindication
None
RAL-number similar
7040
Impact strength
IK04
Concurrently switching neutral conductor
No
Transparent
No
Surface finishing
Glossy
With miniature fuse
No
With loop through function
Yes
Suitable for degree of protection IP
IP41
Device width
45
Device height
45
Device depth
38.5
Number of socket outlets switchable
0
With function lighting
No
With orientation lighting
No
Number of modules module system
2
IFTTT support available
No
Number of active contacts round
2
Number of active contacts flat
0
Min. depth of built-in installation box
-
With Wi-Fi signal repeater
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Metallic colour
No
Colour of switch operator
Aluminium
Max. current rating of USB power supply
-
With built-in bluetooth speaker
No
Number of ports USB-C
0
Number of active contacts square
0
Protective contact
Round
Number of loop throughs
-
Anti-bacterial treatment
No
For heavy conditions according to VDE
No
Compliant with UK Building Regulations Part M
-
Brands
Legrand
