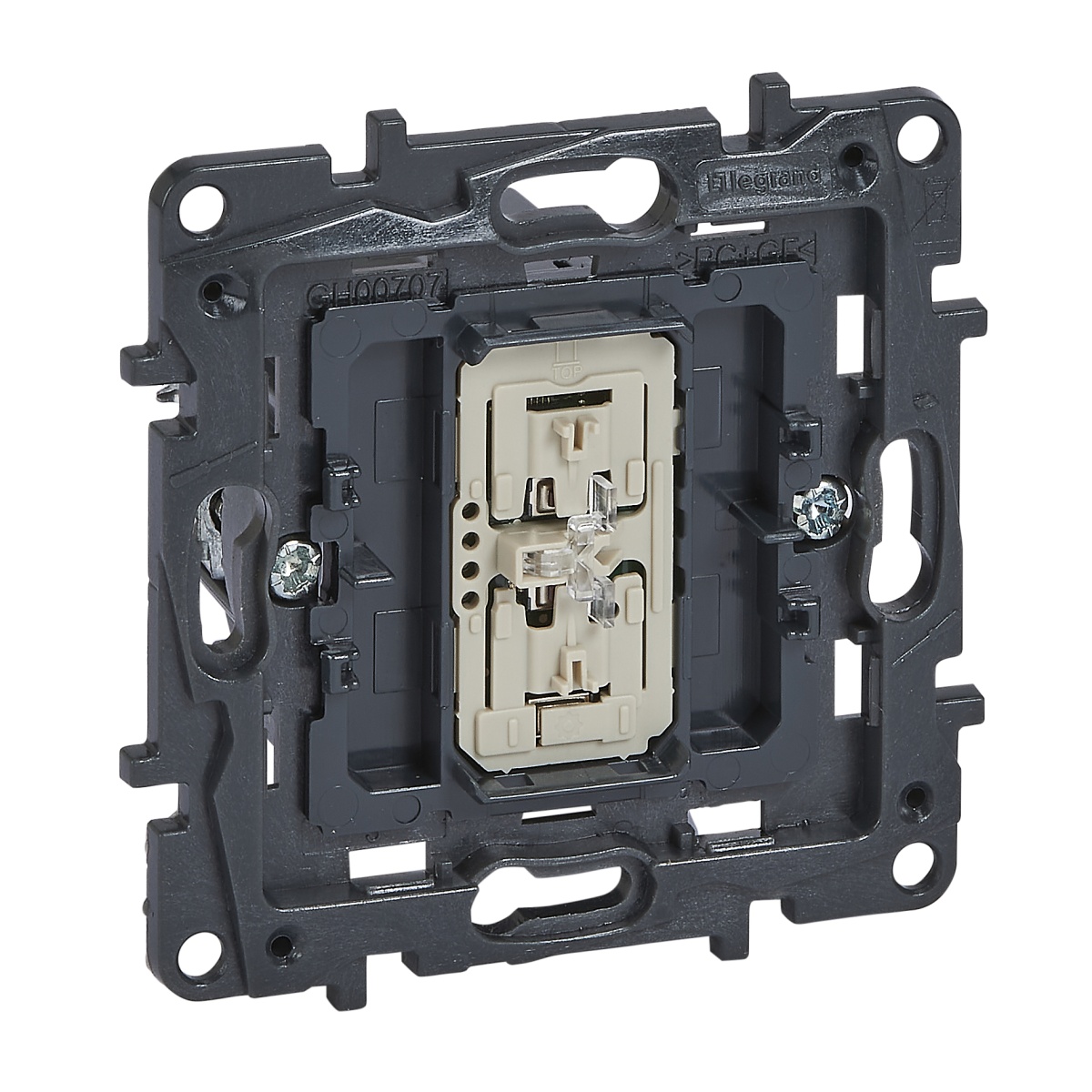

NL-STEP VARIADOR 3F UNIV.
Switches, Dimmers, and Buttons
NL-STEP VARIADOR 3F UNIV.
Manufacturer Ref:
864040A
Nortécnica Ref:
EAN:
3414972516525
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Assembly arrangement
Basic element with central cover plate
Method of operation
Push button
Colour
-
Halogen free
Yes
Number of units
1
Connection type
Screwed terminal
Surface protection
-
Power consumption
0.7
Frequency
50
60
Material quality
Thermoplastic
Type of load
Universal and LED Retrofit
Material
Plastic
Type of fastening
Mounting with claw and screw
Light value memory
Yes
Substation input
Yes
RAL-number similar
-
Serial dimmer
No
Applicable with movement sensor
No
Applicable with transmission button
No
Applicable with infrared button
No
Applicable with presence indicator
No
Applicable with button
Yes
Applicable with time switchtimer
No
Impact strength
IK04
Nominal voltage
110
240
Control voltage
110
240
Transparent
No
Surface finishing
-
Suitable for degree of protection IP
IP20
Core cross section
1.5
2.5
Device width
75
Device height
75
Device depth
46
Number of modules module system
1
IFTTT support available
No
Dimming phase cut-off trailing edge
Yes
Dimming phase cut-on leading edge
Yes
Min. depth of built-in installation box
40
App control via Bluetooth
No
Nominal power resistive load
0
150
Nominal power inductive load
0
150
Nominal power capacitive load
0
150
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
150
Min. brightness controllable
Yes
Brands
Legrand
