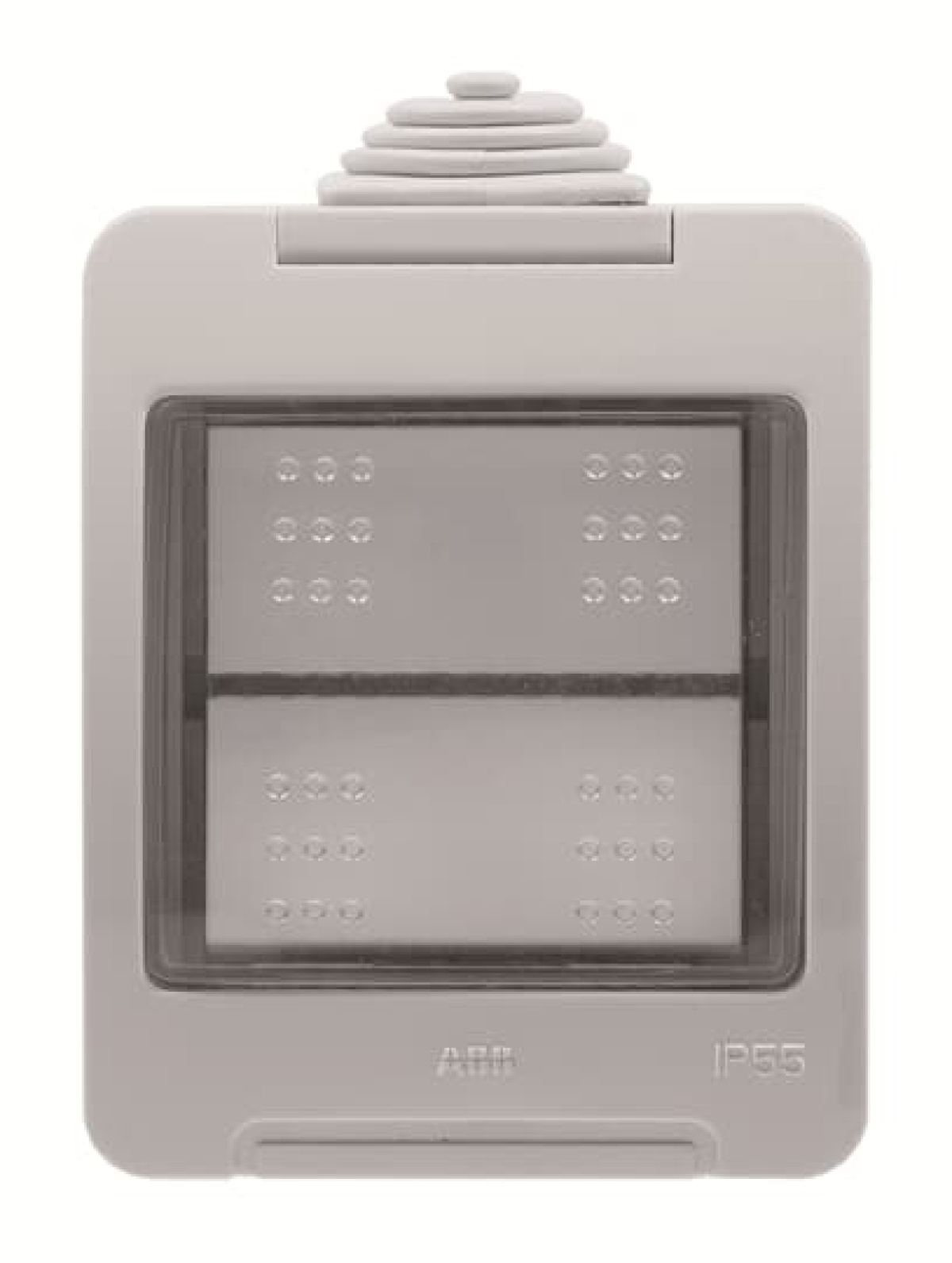

Pushbutton Without imprint Single push button 1P pole 1NO 0NC 1CO White Zenit
Switches, Dimmers, and Buttons
Pushbutton Without imprint Single push button 1P pole 1NO 0NC 1CO White Zenit
Manufacturer Ref:
2CLA320400N1101
Nortécnica Ref:
EAN:
8427238099576
Description
Technical Information
Attributes
Nominal voltage
250
Mounting method
Surface mounted
Assembly arrangement
Basic element with complete housing
Method of operation
Push button
Colour
White
Model
Single push button
Halogen free
No
Connection type
Screwed terminal
Imprint
-
Surface protection
Untreated
With signal lamp
No
Rated current
16
Label spaceinformation surface
No
Monitoring contact
No
Material quality
Thermoplastic
Number of poles
1
Material
Plastic
Type of fastening
Screw mounting
Number of rockers
1
With lighting
No
RAL-number similar
7035
Operating principle
-
Impact strength
IK00
With light source
No
Transparent
No
Surface finishing
Matt
Suitable for degree of protection IP
IP55
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
1
Device width
90
Device height
90
Device depth
63
Number of modules module system
2
IFTTT support available
No
Min. depth of built-in installation box
25
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Number of revolving contacts
0
Contactless type
No
Anti-bacterial treatment
No
Brands
ABB
Technical Sheet
