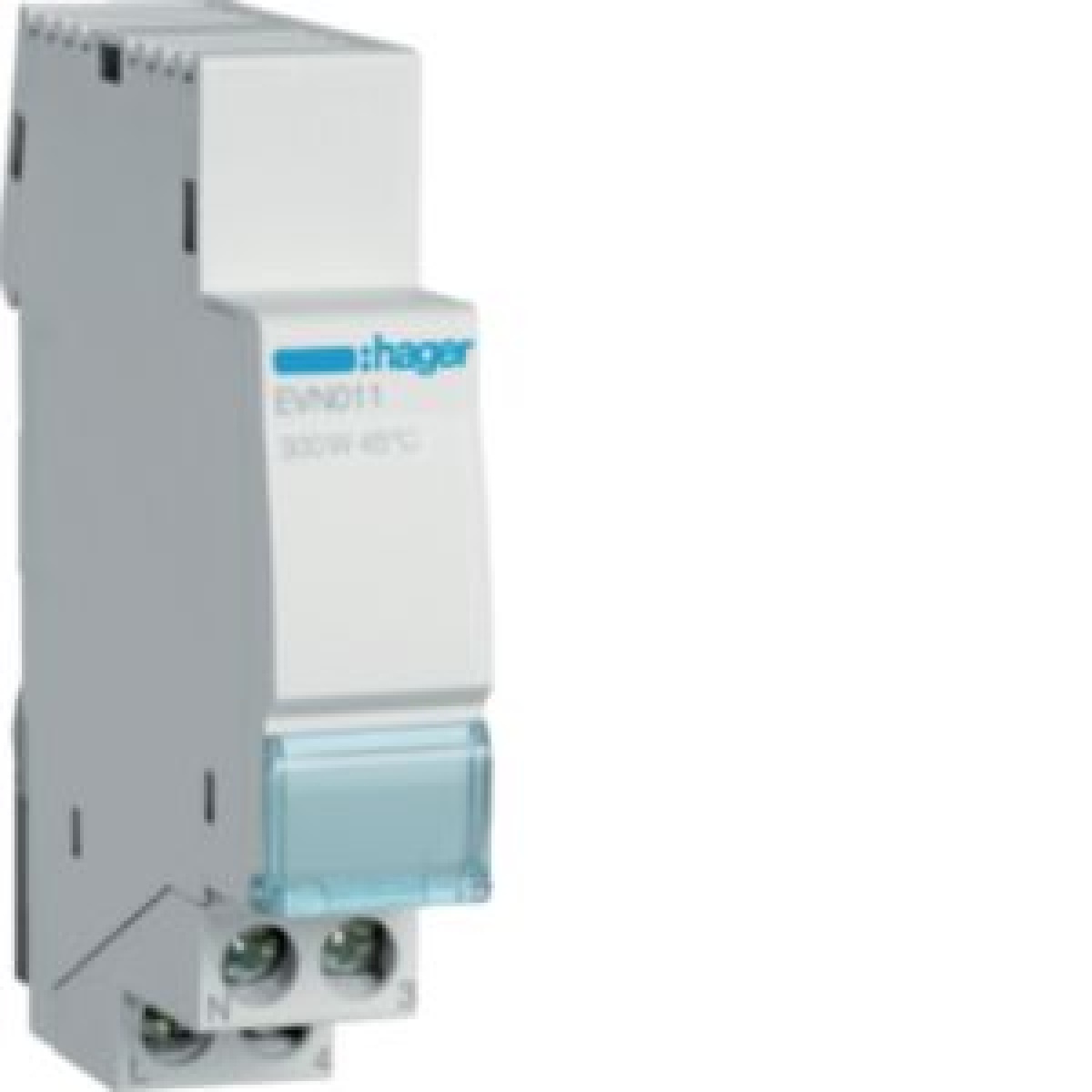

Televariador universal 300W
Switches, Dimmers, and Buttons
Televariador universal 300W
Manufacturer Ref:
EVN011
Nortécnica Ref:
71EVN011
EAN:
3250617573917
Description
Technical Information
Attributes
Mounting method
Other
Assembly arrangement
Basic element
Method of operation
Turnpush button
Colour
Grey
Halogen free
No
Number of units
1
Connection type
Screwed terminal
Surface protection
Untreated
Power consumption
0.2
Frequency
50
60
Material quality
Other
Type of load
Universal
Material
Plastic
Type of fastening
Mounting with screw
Light value memory
Yes
Substation input
No
RAL-number similar
7035
Serial dimmer
Yes
Applicable with movement sensor
No
Applicable with transmission button
No
Applicable with infrared button
No
Applicable with presence indicator
No
Applicable with button
Yes
Applicable with time switchtimer
Yes
Impact strength
IK04
Nominal voltage
230
230
Control voltage
195.5
253
Transparent
No
Surface finishing
Matt
Suitable for degree of protection IP
IP20
Core cross section
1.5
6
Device width
17.5
Device height
90
Device depth
65
Number of modules module system
1
IFTTT support available
No
Dimming phase cut-off trailing edge
Yes
Dimming phase cut-on leading edge
Yes
Min. depth of built-in installation box
-
App control via Bluetooth
No
Nominal power resistive load
-
Nominal power inductive load
-
Nominal power capacitive load
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
60
Min. brightness controllable
Yes
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
