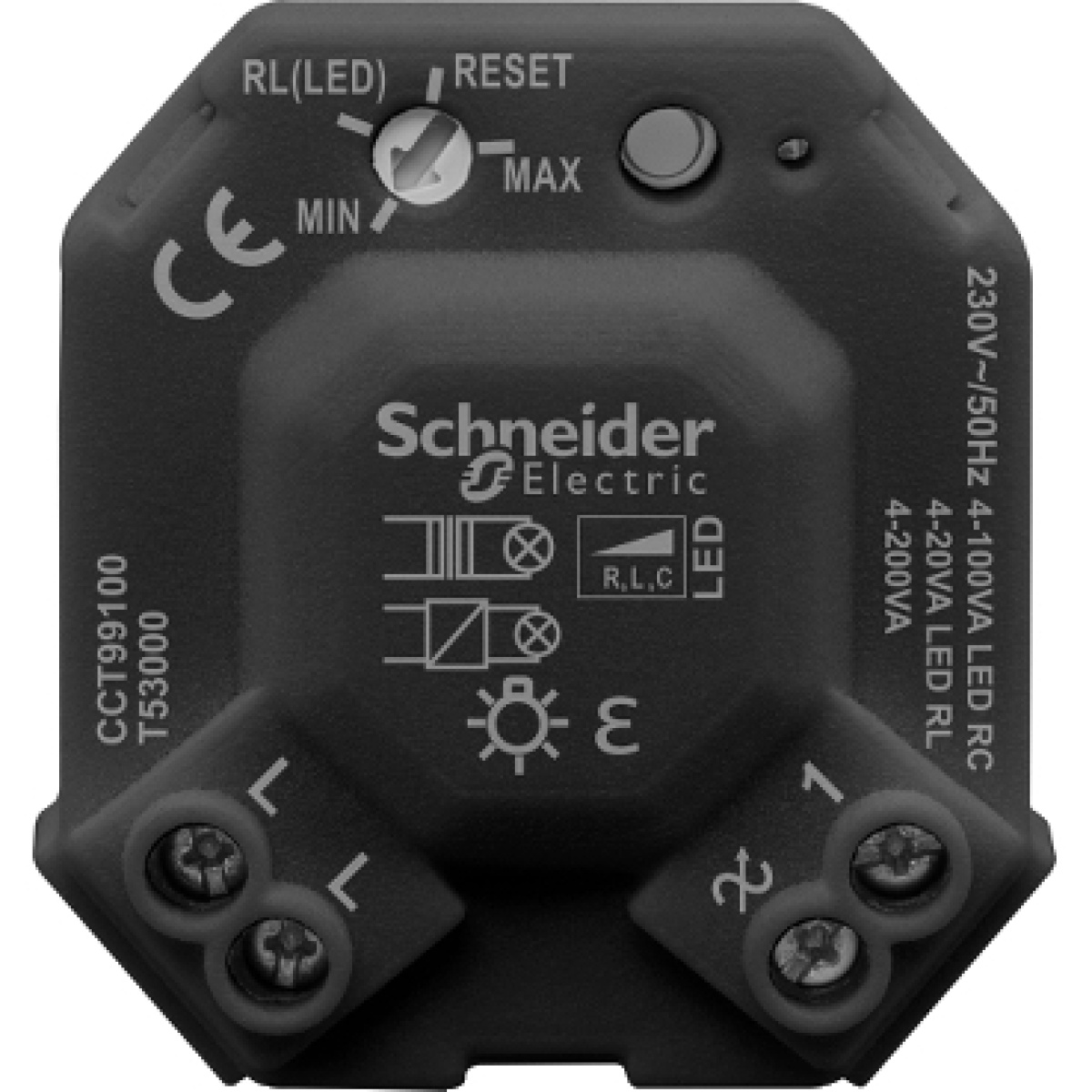

Universal LED dimmer module
Manufacturer Ref:
CCT99100
Nortécnica Ref:
EAN:
3606480746239
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Assembly arrangement
Basic element with complete housing
Method of operation
Other
Colour
Grey
Halogen free
Yes
Number of units
1
Connection type
Screwed terminal
Surface protection
Untreated
Power consumption
150
Frequency
50
50
Material quality
Other
Type of load
Universal and LED Retrofit
Material
Other
Type of fastening
Other
Light value memory
Yes
Substation input
Yes
RAL-number similar
-
Serial dimmer
No
Applicable with movement sensor
No
Applicable with transmission button
No
Applicable with infrared button
No
Applicable with presence indicator
No
Applicable with button
Yes
Applicable with time switchtimer
No
Impact strength
IK02
Nominal voltage
230
230
Control voltage
-
-
Transparent
No
Surface finishing
Matt
Suitable for degree of protection IP
IP20
Core cross section
2.5
2.5
Device width
40
Device height
45
Device depth
20
Number of modules module system
-
IFTTT support available
No
Dimming phase cut-off trailing edge
Yes
Dimming phase cut-on leading edge
Yes
Min. depth of built-in installation box
40
App control via Bluetooth
No
Nominal power resistive load
200
200
Nominal power inductive load
200
200
Nominal power capacitive load
200
200
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
100
Min. brightness controllable
Yes
Brands
Schneider
