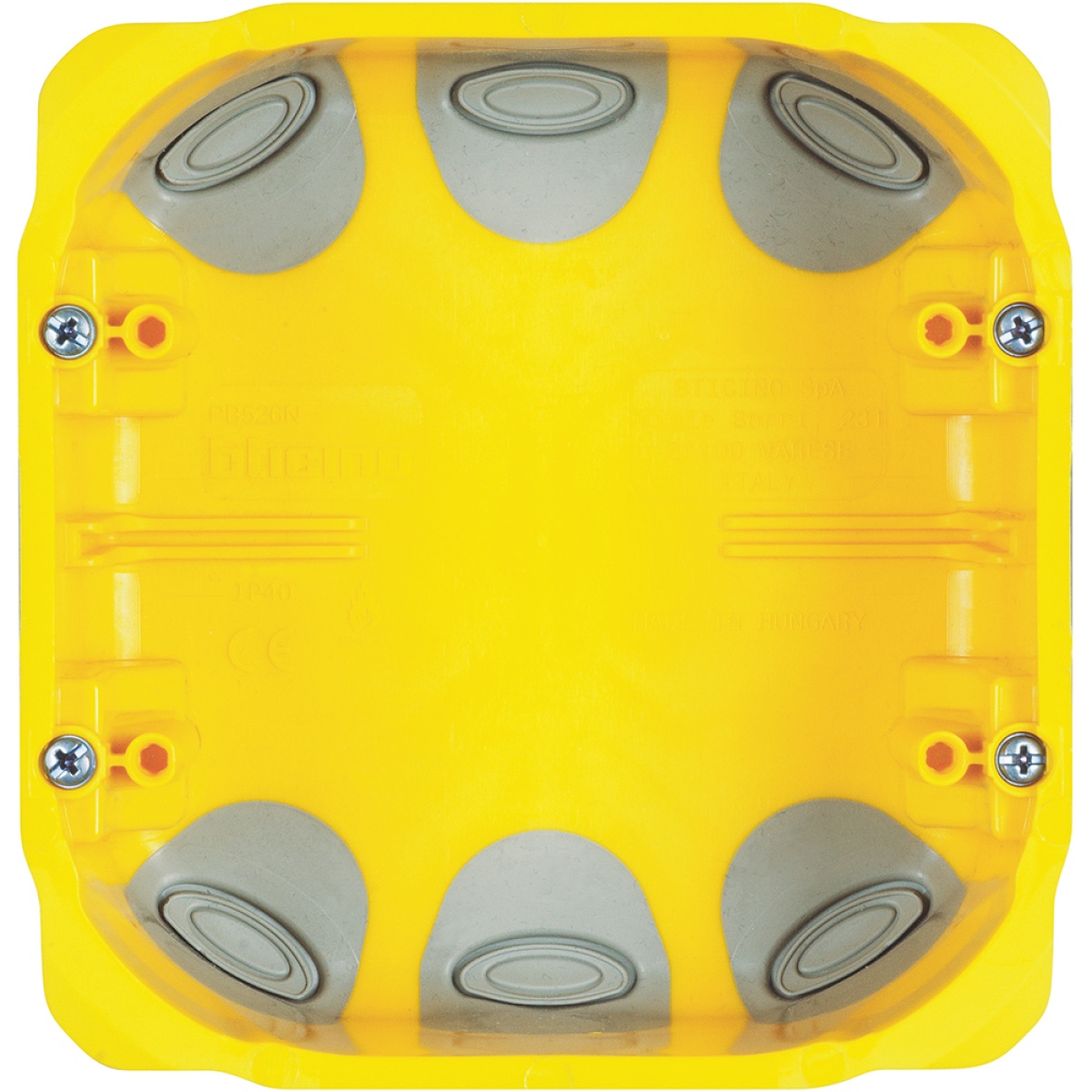

Bticino - Caixa de encastrar para paredes ocas - 3 3 módulos
Boxes
Bticino - Caixa de encastrar para paredes ocas - 3 3 módulos
Manufacturer Ref:
PB526N
Nortécnica Ref:
EAN:
8005543592434
Description
Technical Information
Attributes
Mounting method
Hollow wall
Colour
Yellow
Width
116
Model
Single
Halogen free
No
Shape
Rectangular
Surface protection
Untreated
Diameter
-
Equipped with
None
Construction type
Device connection box (round/square)
Inner depth
50
Couplable
No
Length
111
Sealable
No
Circuit integrity
None
Material
Plastic
Number of inlets
6
Mounting switching equipment
Screwing
Cover attachment
Other
For number of device inserts
6
Luminaire hook mounting
No
Max. conductor cross section
2.5
With screening
No
EF005060
-
With screws
Yes
Airtight
Yes
Depth
52
52
Suitable for cable diameter
1
2.5
Degree of protection IP
IP40
For tube diameter
20/25 mm
Inlet from the rear
Yes
Pipe locking
No
Special application
None
Clamp position fixed
No
With partition panel
No
Number of poles of the clamp
0
Nozzle
None
Provided with revolving ring
No
Housing feed-through by seal membrane
Yes
Housing feed-through by nozzle
Yes
Housing feed-through by step membrane
No
Pipe locking optional
No
Number of included spouts
8
Cover model
None
Housing feed-through by break-out opening
No
Transparent cover
No
Degree of protection NEMA
-
Suitable for wallboard thickness
-
-
Number of non-adjustable device fixing lugs
0
Number of adjustable device fixing lugs
4
Compliant with BS 4662
No
Brands
Legrand
Technical Sheet
