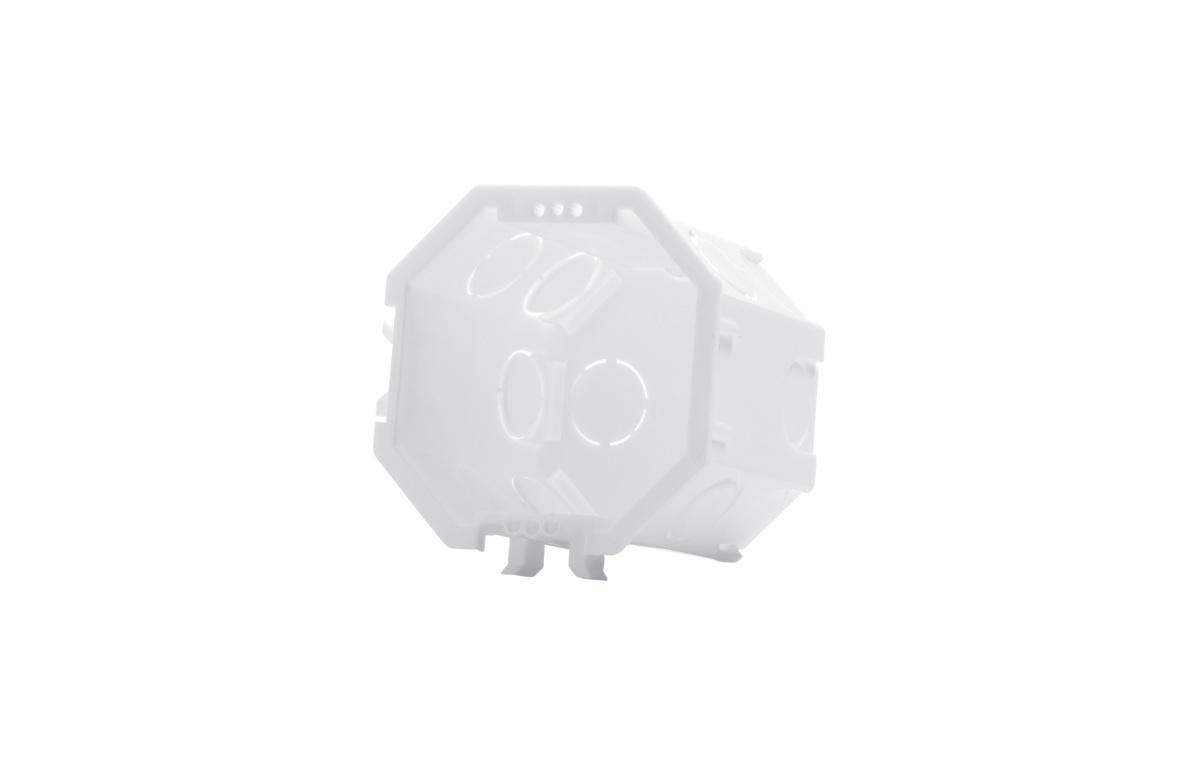

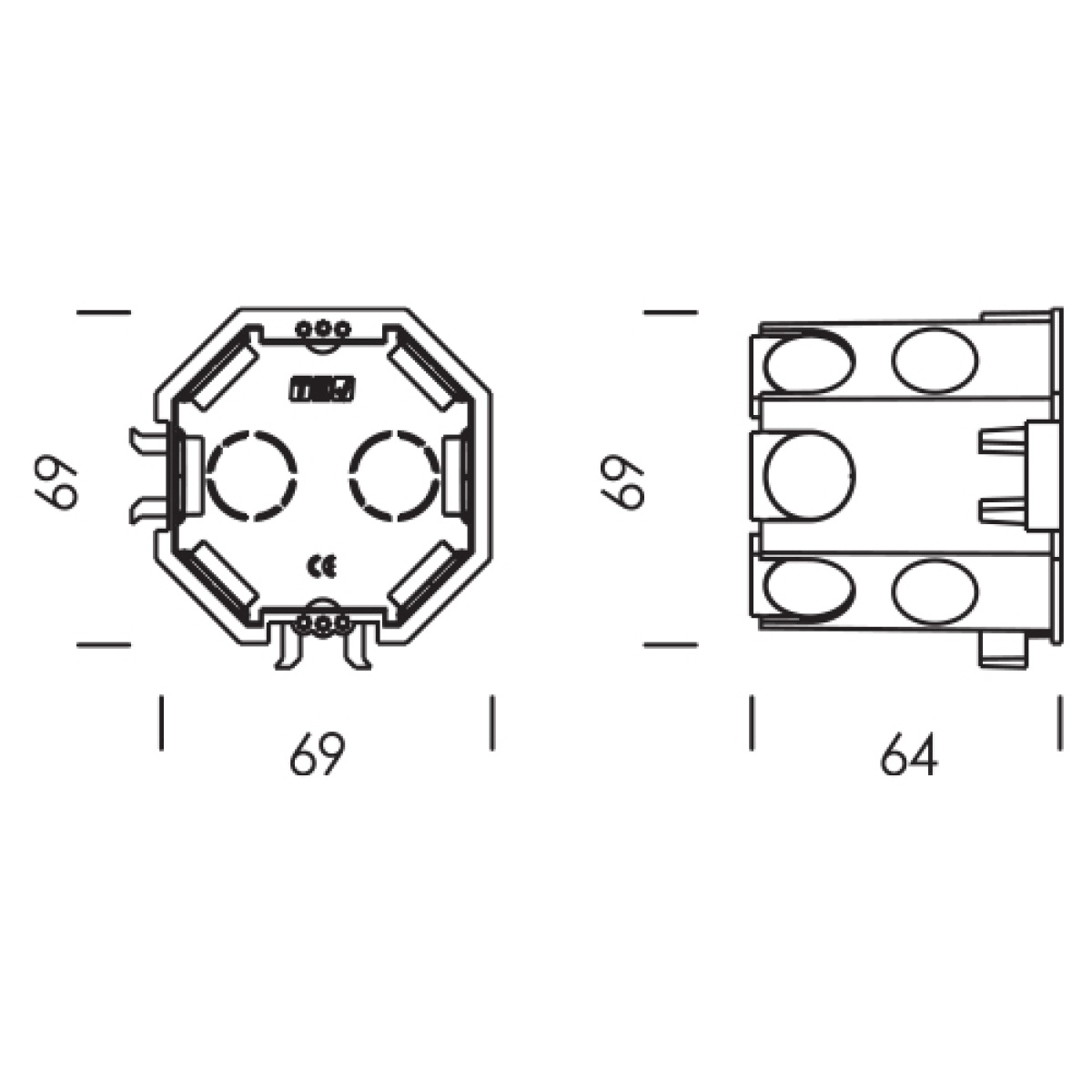

CAIXA DE APARELHAGEM AGRUPÁVEL 69x69x64 FUNDA BRANCA
Boxes
CAIXA DE APARELHAGEM AGRUPÁVEL 69x69x64 FUNDA BRANCA
Manufacturer Ref:
56102
Nortécnica Ref:
42056102
EAN:
5607353012800
Description
Technical Information
Attributes
Mounting method
Concrete building
Colour
White
Largura
-
Model
Single
Halogen free
Yes
Shape
Octagonal
Surface protection
Untreated
Diameter
69
Equipped with
None
Construction type
Cable junction box
Profundidade interior
-
Couplable
Yes
Comprimento
-
Sealable
No
Integridade do circuito
16812
Material
Plastic
Number of inlets
12
Mounting switching equipment
Screwing
Cover attachment
Screwed
Para o número de acessórios
-
Luminaire hook mounting
No
Máx. seção transversal do condutor
2,5
With screening
No
EF005060
false
With screws
No
Airtight
No
Depth
64
64
Suitable for cable diameter
1.5
2.5
Degree of protection IP
IP20
For tube diameter
20 mm
Inlet from the rear
Yes
Pipe locking
No
Special application
None
Clamp position fixed
No
With partition panel
Número de polos do terminal
-
Nozzle
Other
Provided with revolving ring
No
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking optional
No
Número de bicos incluídos
-
Cover model
None
Housing feed-through by break-out opening
Yes
Transparent cover
No
Degree of protection NEMA
Suitable for wallboard thickness
-
-
Número de olhais de fixação do dispositivo não ajustáveis
Número de olhais de fixação do dispositivo ajustáveis
Compliant with BS 4662
