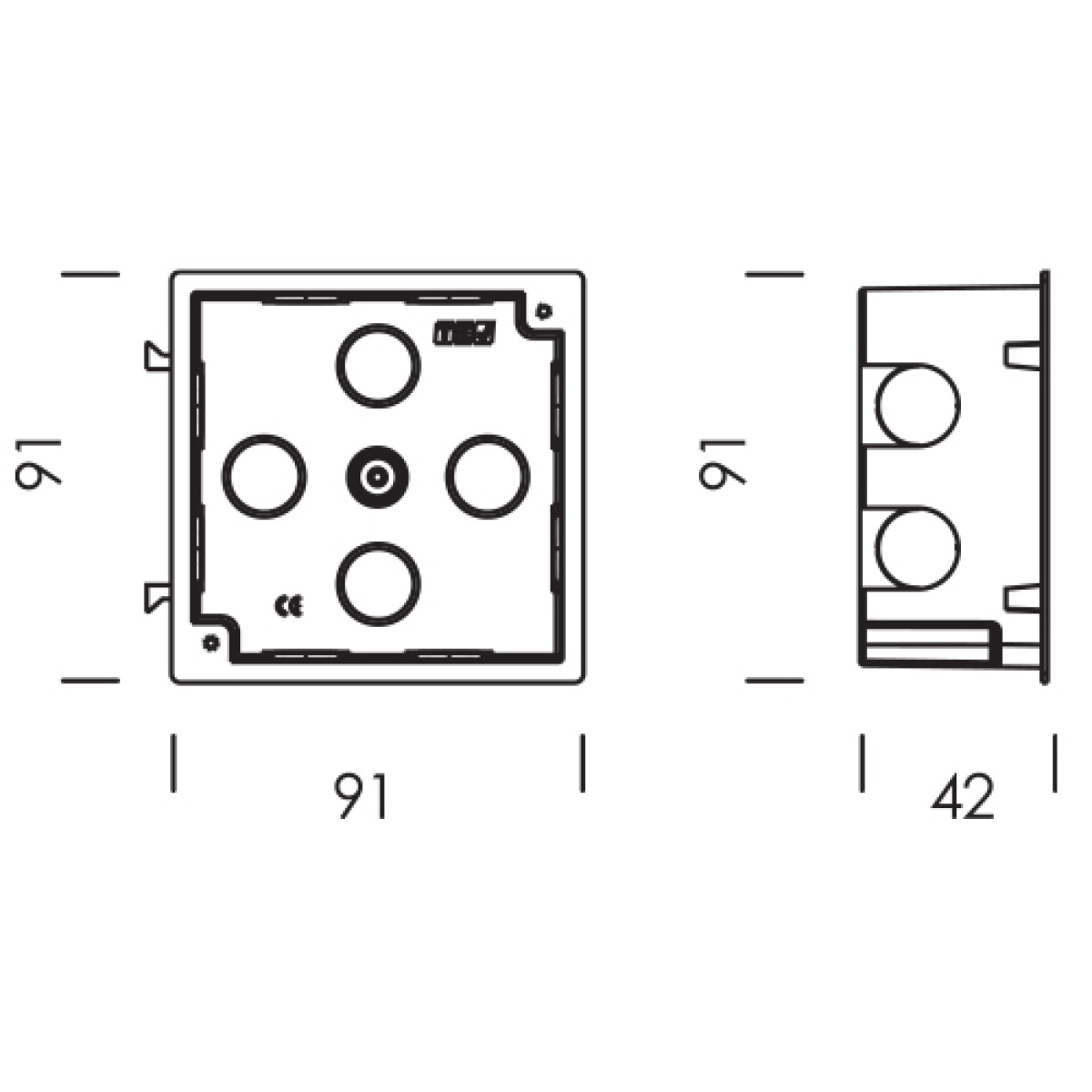

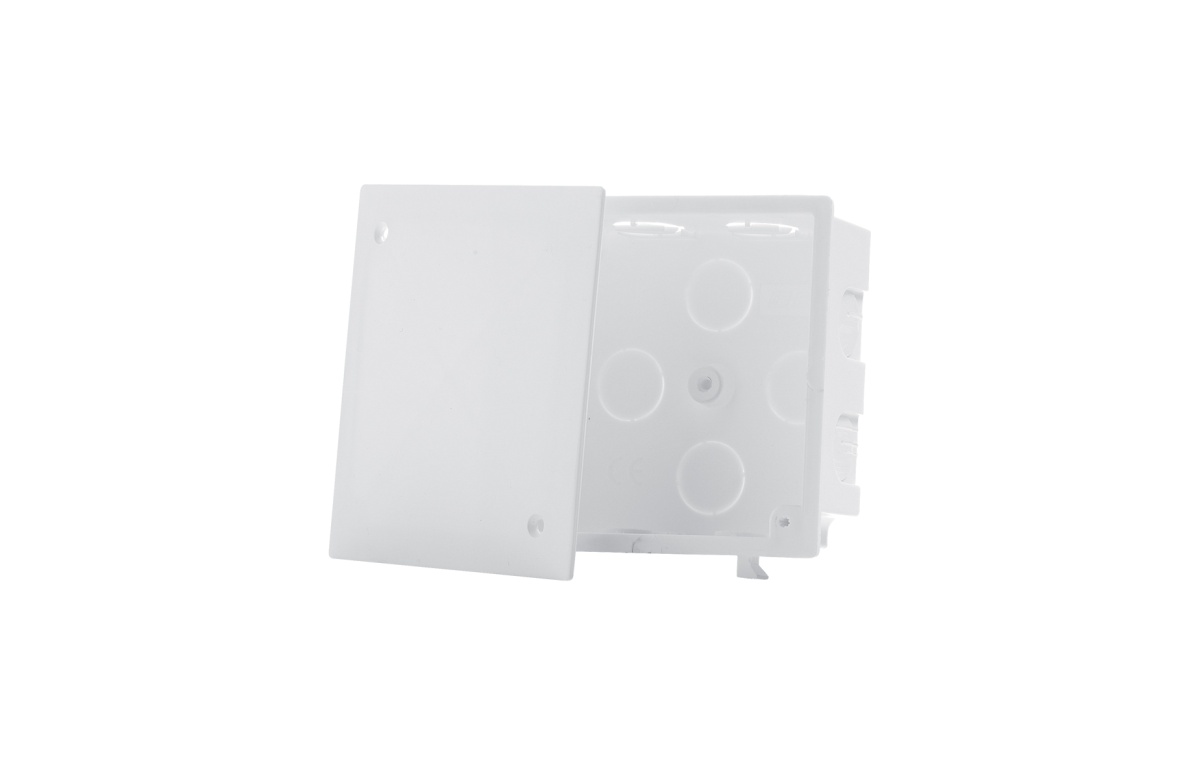

CAIXA DE APARELHAGEM AGRUPÁVEL QUADRADA 91x91x42 COM TAMPA BRANCA
Boxes
CAIXA DE APARELHAGEM AGRUPÁVEL QUADRADA 91x91x42 COM TAMPA BRANCA
Manufacturer Ref:
56103
Nortécnica Ref:
42056103
EAN:
5607353012817
Description
Technical Information
Attributes
Mounting method
Concrete building
Colour
White
Largura
91
Model
Single
Halogen free
Yes
Shape
Square
Surface protection
Untreated
Diameter
-
Equipped with
None
Construction type
Cable junction box
Profundidade interior
-
Couplable
Yes
Comprimento
91
Sealable
No
Integridade do circuito
None
Material
Plastic
Number of inlets
12
Mounting switching equipment
Screwing
Cover attachment
Screwed
Para o número de acessórios
-
Luminaire hook mounting
No
Máx. seção transversal do condutor
2,5
With screening
No
EF005060
No
With screws
Yes
Airtight
No
Depth
42
42
Suitable for cable diameter
1.5
2.5
Degree of protection IP
IP40
For tube diameter
20 mm
Inlet from the rear
Yes
Pipe locking
No
Special application
None
Clamp position fixed
-
Número de polos do terminal
-
Nozzle
Other
Provided with revolving ring
No
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking optional
No
Número de bicos incluídos
-
Cover model
Blind cover
Housing feed-through by break-out opening
Yes
Transparent cover
No
Degree of protection NEMA
-
Suitable for wallboard thickness
-
-
