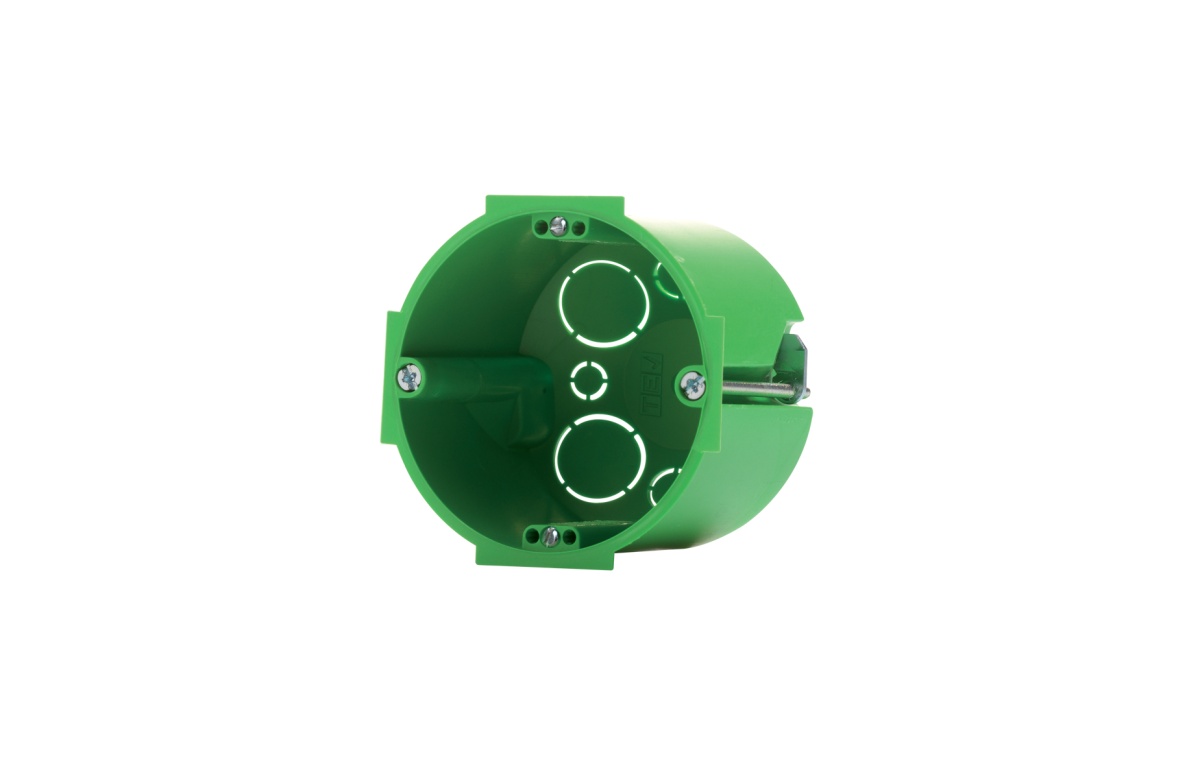

CAIXA DE APARELHAGEM FUNDA Ø68 - 68x61 PARA PAREDES OCAS VERDE
Boxes
CAIXA DE APARELHAGEM FUNDA Ø68 - 68x61 PARA PAREDES OCAS VERDE
Manufacturer Ref:
56102P
Nortécnica Ref:
42056102P
EAN:
5607353012893
Description
Technical Information
Attributes
Mounting method
Hollow wall
Colour
Green
Largura
-
Model
Single
Halogen free
Yes
Shape
Round
Surface protection
Untreated
Diameter
68
Equipped with
Clamp
Construction type
Cable junction box
Profundidade interior
-
Couplable
Yes
Comprimento
-
Sealable
No
Integridade do circuito
None
Material
Plastic
Number of inlets
8
Mounting switching equipment
Screw or spread out
Cover attachment
Screwed
Para o número de acessórios
1
Luminaire hook mounting
No
Máx. seção transversal do condutor
2,5
With screening
No
EF005060
No
With screws
Yes
Airtight
-
Depth
61
61
Suitable for cable diameter
1.5
2.5
Degree of protection IP
IP20
For tube diameter
20 mm
Inlet from the rear
Yes
Pipe locking
No
Special application
None
Clamp position fixed
-
Número de polos do terminal
-
Nozzle
Other
Provided with revolving ring
No
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking optional
No
Número de bicos incluídos
-
Cover model
None
Housing feed-through by break-out opening
Yes
Transparent cover
No
Degree of protection NEMA
-
Suitable for wallboard thickness
-
-
