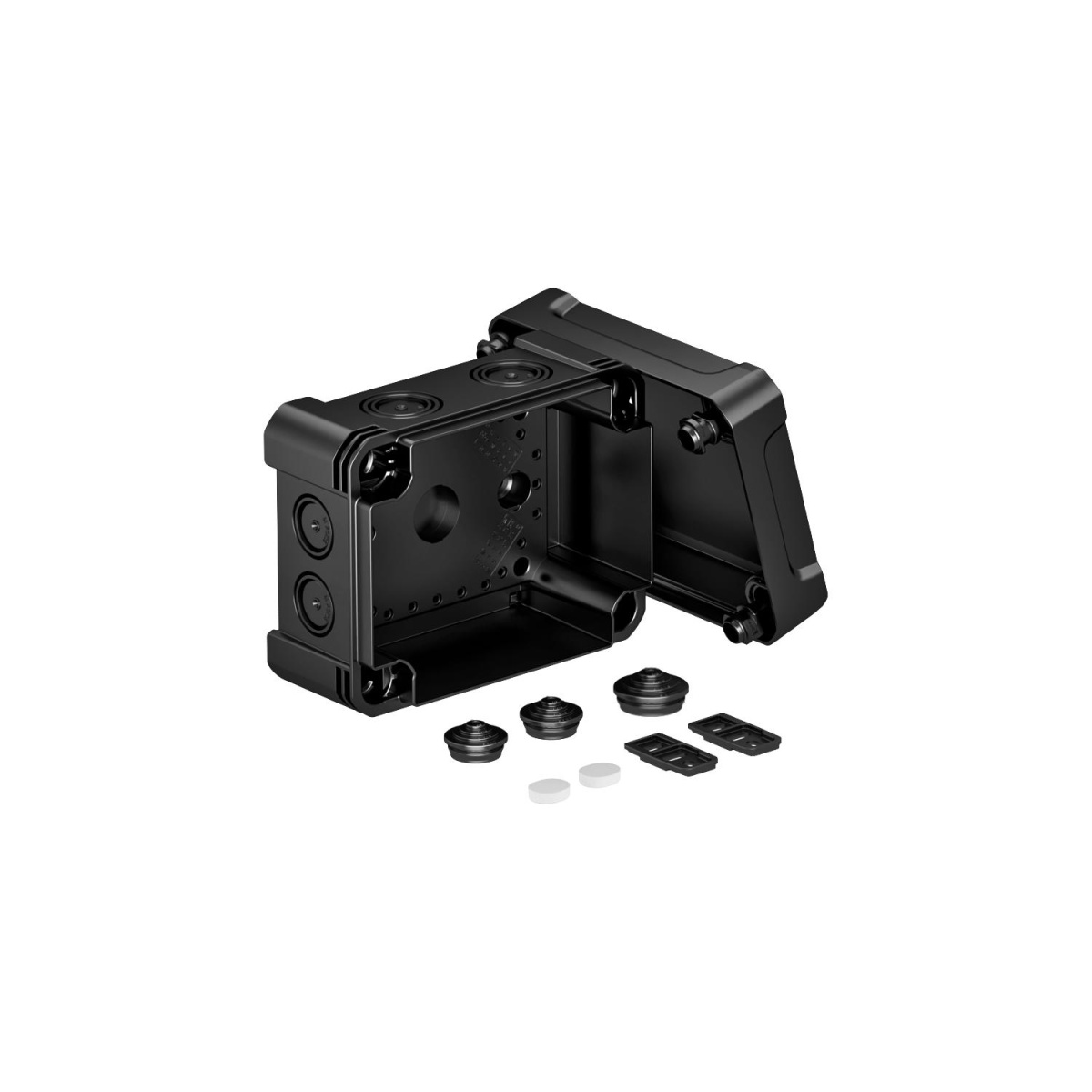

Caixa de derivação 150x116x86 Policarbonato preto grafite RAL 9011
Boxes
Caixa de derivação 150x116x86 Policarbonato preto grafite RAL 9011
Manufacturer Ref:
2005122
Nortécnica Ref:
EAN:
4012196580507
Description
Technical Information
Attributes
Mounting method
Wall-/ceiling mounting
Colour
Black

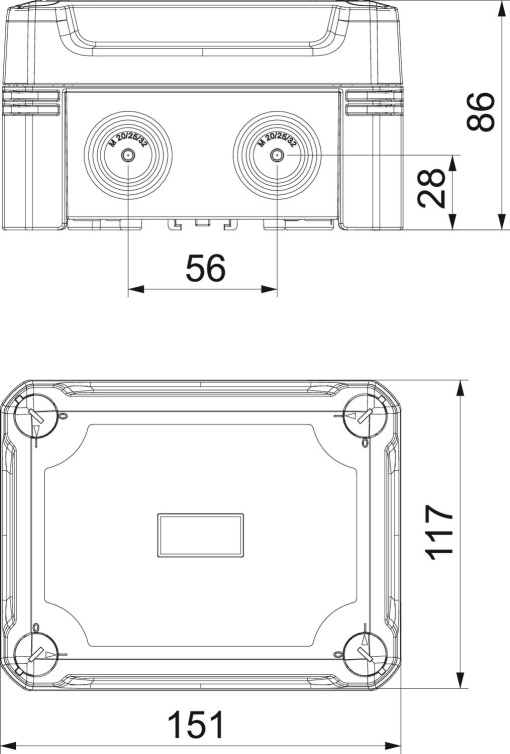

Largura
117
Model
-
Halogen free
Yes
Depth
86
Shape
Rectangular
Surface protection
-
Diâmetro
-
Equipped with
-
With strain relief
-
Rated insulation voltage Ui
750
Número de polos
-
Comprimento
151
Sealable
Yes
Circuit integrity
-
Working temperature
-5
60
Material
Plastic
Number of clamp positions per pole
-
Number of inlets
8
RAL-number similar
9011
Explosion-tested version
No
Cover attachment
Screwed
Max. conductor cross section
6
With screening
No
Weatherproof
Yes
Degree of protection IP
IP67
For tube diameter
-
Inlet from the rear
No
For Ex-zone gas
-
Connectable
Yes
Type of housing feed-through
Preembossing
For Ex-zone dust
-
Cover model
-
Castable
-
Casting compound included
-
Transparent cover
No
Degree of protection NEMA
-
Mounting in the soil
-
Mounting under water
-
Outgoing connections with connectors for plug-in building installation
-
Number of cable glands included
-
Brands
OBO
Technical Sheet
